Product Overview

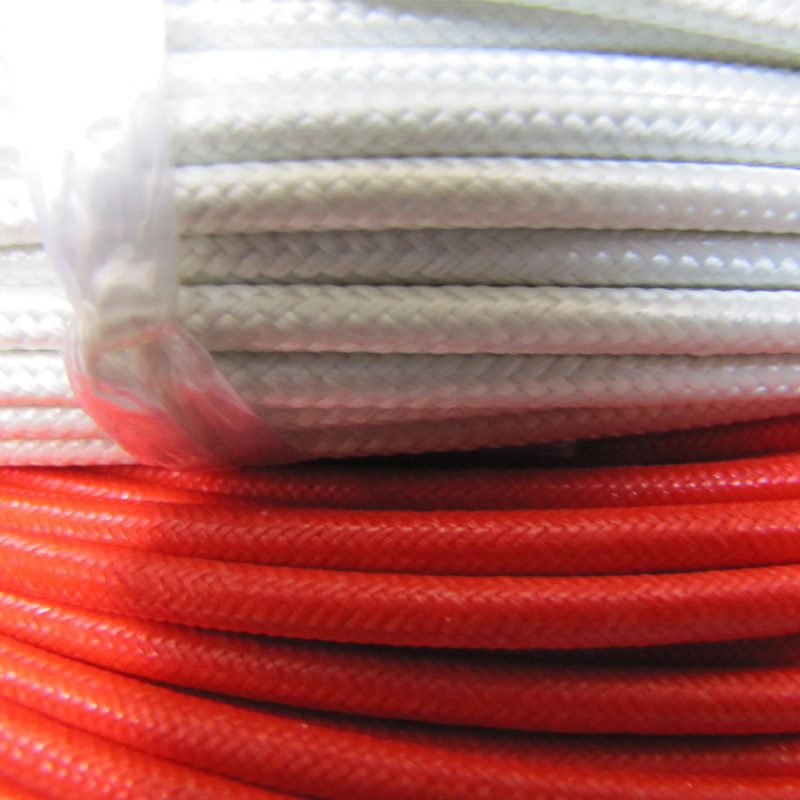

Specially engineered for extreme temperature environments, the H05SS-F and H05SST-F silicone rubber cables deliver reliable performance up to 180°C. Featuring flexible silicone rubber insulation and sheath, these multicore cables withstand thermal stress, mechanical shock, and chemical exposure in industrial settings. The H05SST-F variant includes polyester fiber braiding for enhanced mechanical protection.
Key Features & Benefits:
-
Extreme Thermal Stability: Continuous operation at 180°C (short-term 250°C)
-
Chemical Resistance: Withstands oils, acids, and industrial chemicals
-
Mechanical Durability: High shock resistance for demanding environments
-
Flexible Performance: Maintains pliability from -60°C to +250°C
-
Dual Variants: Standard (H05SS-F) vs. Braided Reinforcement (H05SST-F)
-
UV Resilience: Suitable for UV-exposed indoor applications

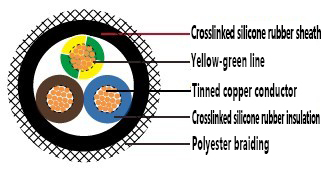

Construction:
| Component | H05SS-F Specification | H05SST-F Specification |
|---|---|---|
| Conductor | Fine-stranded Copper (IEC 60228 Class 5) | Fine-stranded Copper (IEC 60228 Class 5) |
| Insulation | Silicone Rubber Compound | Silicone Rubber Compound |
| Sheath | Silicone Rubber | Silicone Rubber |
| Reinforcement | - | Polyester Fiber Braid |
| Core Colors | Color-coded per IEC 60446 | Color-coded per IEC 60446 |
Technical Data:
| Parameter | Specification |
|---|---|
| Rated Voltage | 300/500V AC |
| Temperature Range | Continuous: -60°C to +180°C Peak: +250°C (≤24hr) |
| Min. Bending Radius | 6 × Cable Diameter |
| Flame Performance | Self-extinguishing (IEC 60332-1) |
| Insulation Resistance | ≥100 MΩ·km at 20°C |
| Conductor Size Range | 0.5mm² to 16mm² (Multicore configurations) |
| Standards Compliance | HD 22.4 S2, EN 50525-2-21 |
Applications:
-
High-Temperature Industrial: Foundries, steel mills, glass manufacturing
-
Thermal Processing: Baking ovens, burners, heating systems
-
Industrial Lighting: High-bay fixtures, furnace-area lighting
-
HVAC Systems: Boiler rooms, heat exchanger connections
-
Chemical Environments: Laboratories, pharmaceutical production
-
Indoor Machinery: Motors, generators, industrial automation
Product Variants:
| Type | Construction | Ideal For |
|---|---|---|

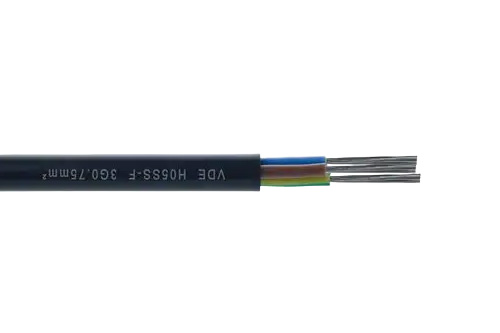

| H05SS-F | Silicone insulation + silicone sheath | General high-temp applications |
| H05SST-F | Silicone insulation + sheath + braid | High mechanical stress environments |
Engineering Selection Guide:
-
Environmental Considerations:
-
Use H05SST-F in high-vibration/shock areas
-
Both types suitable for UV-exposed indoor applications
-
Not recommended for outdoor use
-
-
Temperature Management:
-
Verify continuous operating temperature ≤180°C
-
Allow thermal expansion in fixed installations
-
-
Electrical Requirements:
-
Confirm 300/500V rating meets circuit needs
-
Use appropriate cable glands for silicone sheaths
-
-
Movement & Bending:
-
Maintain minimum 6×OD bending radius
-
Use strain relief in dynamic applications
-
Standards Compliance:
| Standard | Scope |
|---|---|
| EN 50525-2-21 | Silicone rubber cables 300/500V |
| HD 22.4 S2 | Harmonized document for rubber cables |
| IEC 60228 | Conductors (Class 5 flexibility) |
| IEC 60332-1 | Flame propagation testing |
