Description

Product Overview

The YGC22 Silicone Rubber Armored Power Cable delivers exceptional thermal stability and mechanical protection for extreme industrial environments. Featuring silicone rubber insulation, tinned copper conductors, and dual-layer steel tape armor, this cable maintains performance at continuous temperatures up to 180°C while resisting crushing forces, chemical exposure, and environmental degradation. Ideal for high-heat applications requiring robust power transmission.

Key Features & Benefits:

  • Extreme Heat Resistance: Continuous operation at +180°C, short-term to +250°C

  • Heavy-Duty Protection: Dual-steel tape armor withstands 3000N crush resistance

  • Corrosion Defense: Tinned copper + silicone rubber combat chemicals/moisture

  • Flexible Durability: Maintains pliability from -60°C to +250°C

  • Flame Safety: Self-extinguishing with halogen-free smoke

  • EMI Shielding: Integrated armor provides electromagnetic interference protection

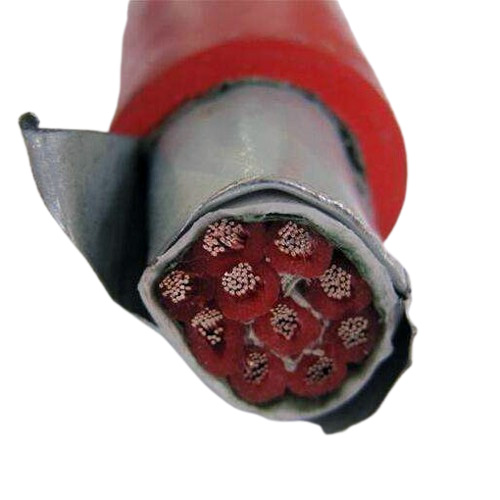

Construction:

Layer Material Specification Functionality
Conductor Tinned Copper Strands (IEC 60228 Class 2) Enhanced corrosion resistance
Insulation High-Grade Silicone Rubber Thermal stability & dielectric strength
Inner Sheath Thermoplastic Compound Armor bedding layer
Armor Dual Galvanized Steel Tapes (≥0.2mm thickness) Mechanical crush/impact resistance
Outer Sheath Heavy-Duty PVC UV/abrasion/oil resistance

Technical Data:

Parameter Specification
Rated Voltage 0.6/1 kV
Temp. Range Continuous: -60°C to +180°C
Short-Term: +250°C (≤24hr)
Min. Bending Radius Fixed: 12×OD
Flexing: 15×OD
Crush Resistance ≥3000 N/100mm (IEC 60229)
Flame Performance IEC 60332-1-2 Flame Retardant
Insulation Resistance >500 MΩ·km at 20°C
Standards Compliance GB/T 5013.8, IEC 60502-1

Applications:

  • High-Temperature Industrial: Steel mills, foundries, glass plants (near furnaces)

  • Energy Generation: Power plant boiler rooms, turbine hookups

  • Heavy Machinery: Cement kilns, rolling mills, extrusion equipment

  • Hazardous Locations: Chemical processing, refineries, offshore platforms

  • Infrastructure: Tunnel lighting, metallurgical facilities, smelting operations

Engineering Selection Guide:

  1. Temperature Verification:

    • Confirm sustained ambient temperatures ≤180°C

    • For intermittent >250°C exposure, limit duration to 24 hours

  2. Mechanical Considerations:

    • Maintain minimum 12×OD bend radius for fixed runs

    • Use cable glands rated for armored cables

  3. Chemical Compatibility:

    • Resistant to oils, weak acids/alkalis (verify concentrated chemical exposure)

  4. Electrical Parameters:

    • Suitable for 600-1000V AC systems

    • Armor provides EMI shielding - ground armor at both ends

  5. Certification:

    • Valid for GB/T 5013.8 (China) and IEC 60502-1 (International) projects

Standards Compliance:

Standard Scope
GB/T 5013.8 Silicone Rubber Insulated Cables
IEC 60502-1 Power Cables 1-30kV
IEC 60228 Conductors
IEC 60229 Armor Test Methods
