YGG Silicone Rubber Insulated Cable | 180°C Heat Resistant

Product Overview

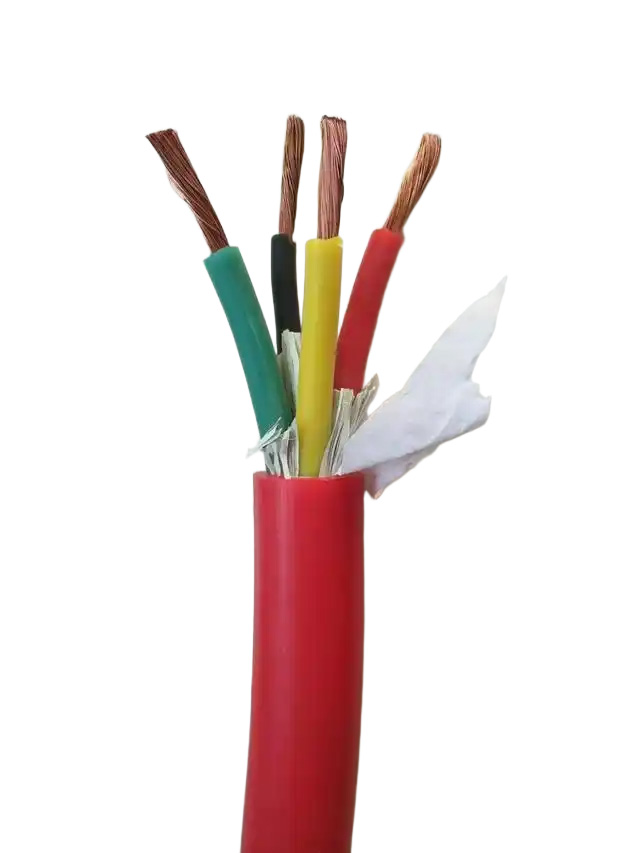

YGG silicone rubber cable is manufactured in full compliance with GB/T 5013.8 standards for high-temperature industrial applications. Featuring tinned copper conductors and dual-layer silicone rubber construction, this cable delivers reliable performance in continuous 180°C environments. Ideal for fixed wiring in furnaces, kilns, and thermal processing equipment.

Key Features & Benefits

• GB/T 5013.8 Certified: Full compliance with Chinese national standard

• 180°C Continuous Rating: Verified thermal endurance per GB/T 5013.8

• Chemical Resistance: Resists oils, acids, and industrial solvents

• Flexible Performance: Operational range -60°C to +180°C

• Corrosion Protection: Tinned copper conductors

• Halogen-Free Safety: Low smoke, non-toxic combustion

Construction

Technical Data

Applications

• Industrial furnace wiring systems

• Kiln and heat treatment equipment connections

• Boiler room installations in power plants

• Fixed wiring in steel mills and foundries

• High-temperature zones in glass manufacturing

Engineering Selection Guide

1. Standard Compliance

   • Valid for GB/T 5013.8 projects

   • Indoor use only (not UV-stable for outdoor applications)

2. Temperature Limits

   • Maximum continuous operating temperature: 180°C

   • Short-circuit withstand: 250°C for ≤5 seconds

3. Installation Requirements

   • Fixed installations only (no continuous flexing)

   • Maintain minimum 6×OD bending radius

   • Protect against sharp edges and abrasion

4. Electrical Parameters

   • Rated for 450/750V AC systems

   • Conductor sizing per GB/T 3956 standards

Standards Compliance
