Type Aluminum Conductor Mobile Home Feeder Cable – 600V Triple Rated: USE-2/RHH/RHW-2E (XLPE Insulated)

UL Certified Commercial & Building Cables30
Description

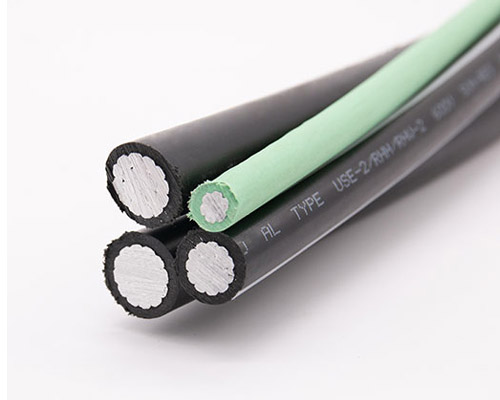

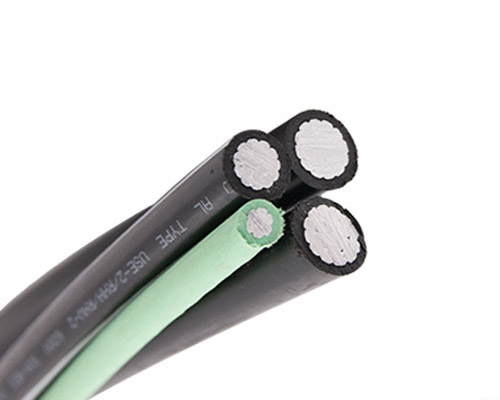

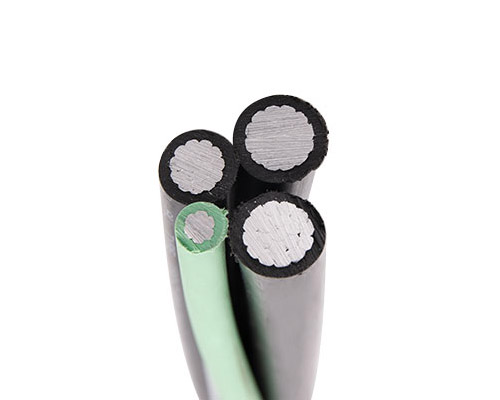

Type Aluminum Conductor Mobile Home Feeder Cable – 600V Triple Rated: USE-2/RHH/RHW-2E (XLPE Insulated)-Picture1 Type Aluminum Conductor Mobile Home Feeder Cable – 600V Triple Rated: USE-2/RHH/RHW-2E (XLPE Insulated)-Picture1 Type Aluminum Conductor Mobile Home Feeder Cable – 600V Triple Rated: USE-2/RHH/RHW-2E (XLPE Insulated)-Picture1

Product Overview

The Type Aluminum Conductor Mobile Home Feeder Cable is a high-performance, triple-rated cable designed for permanent electrical wiring in mobile homes and prefabricated structures. Certified for USE-2, RHH, and RHW-2E applications, this cable combines Compact Stranded Aluminum Alloy 8000 Series conductors with sunlight-resistant XLPE insulation, ensuring durability, safety, and compliance with NEC standards. Rated for 600 volts and 90°C, it is suitable for wet/dry locations, direct burial, and conduit installations.

Key Features

  • Triple Rating: Certified for USE-2 (underground), RHH (high heat), and RHW-2 (moisture and heat resistance).

  • Aluminum Alloy Conductors: ASTM B800/B801/B836-compliant 8000 Series for lightweight, corrosion-resistant performance.

  • Sunlight-Resistant XLPE Insulation: UV-stabilized for outdoor and direct burial use (8 AWG and larger).

  • Color-Coded Wires: Two black phase conductors, one white neutral, and one green ground for easy identification.

  • Flame Retardant: 1/0 AWG and larger comply with UL-1685 flame test requirements.

  • Compliance: UL, ANSI/ICEA, IEEE, RoHS, and RUS standards.

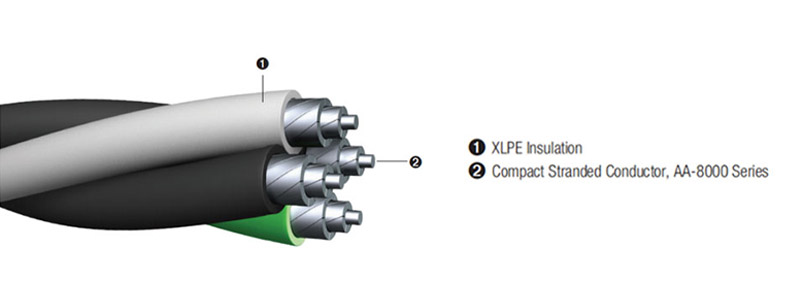

Construction Details

Conductor

  • Material: Compact Stranded Aluminum Alloy 8000 Series (ASTM B800, B801, B836).

  • Design: Quadruplex configuration with two phase, one neutral, and one ground conductor.

Insulation

  • Material: Cross-Linked Polyethylene (XLPE) per UL 44, UL 854, ANSI/ICEA S-105-692.

  • Color Coding:

    • Phase Conductors: Black XLPE.

    • Neutral: White XLPE.

    • Ground: Green XLPE.

  • Benefits: Superior resistance to abrasion, crushing, moisture, and sunlight degradation.

Type Aluminum Conductor Mobile Home Feeder Cable – 600V Triple Rated: USE-2/RHH/RHW-2E (XLPE Insulated)-Picture2

Marking

  • Conductors are surface-printed for clear identification and compliance.

Technical Specifications

Parameter Specification
Voltage Rating 600V
Temperature Range Up to 90°C (wet/dry)
Conductor Sizes 8 AWG to 500 kcmil (1/0 AWG+ UL-1685 compliant)
Standards UL 44, UL 854, ANSI/ICEA S-105-692, IEEE 835
Flame Rating UL-1685 (1/0 AWG and larger)
Resistance UV, Crush, Abrasion, Moisture, Chemicals

Applications

  • Mobile Homes: Permanent electrical wiring per NEC requirements.

  • Direct Burial: Approved for underground installations (USE-2 rated).

  • Outdoor/Indoor Use: Conduit or exposed runs in wet/dry locations (RHH/RHW-2).

  • Utility Distribution: Suitable for residential and light commercial power feeds.

Compliance & Certifications

  • UL Listed: Certified under UL 44, UL 854, and UL-1685 (flame test).

  • Industry Standards: ANSI/ICEA S-105-692, IEEE 835-1994, ASTM B800/B801/B836.

  • Environmental: RoHS-compliant and RUS-accepted for rural electrification.

Engineering Selection Guide

  1. Mobile Home Installations: Mandatory for NEC-compliant permanent wiring.

  2. Direct Burial: Select USE-2 rating for underground applications without conduit.

  3. High-Temperature Zones: Utilize RHH/RHW-2 ratings for areas exposed to heat or moisture.

  4. Cost Efficiency: Aluminum alloy reduces weight and cost vs. copper, ideal for large-scale projects.
