Aluminum XHHW-2 600V XLPE Insulation Cable

Commercial & Building Cables Industrial Cables UL Certified53
Description

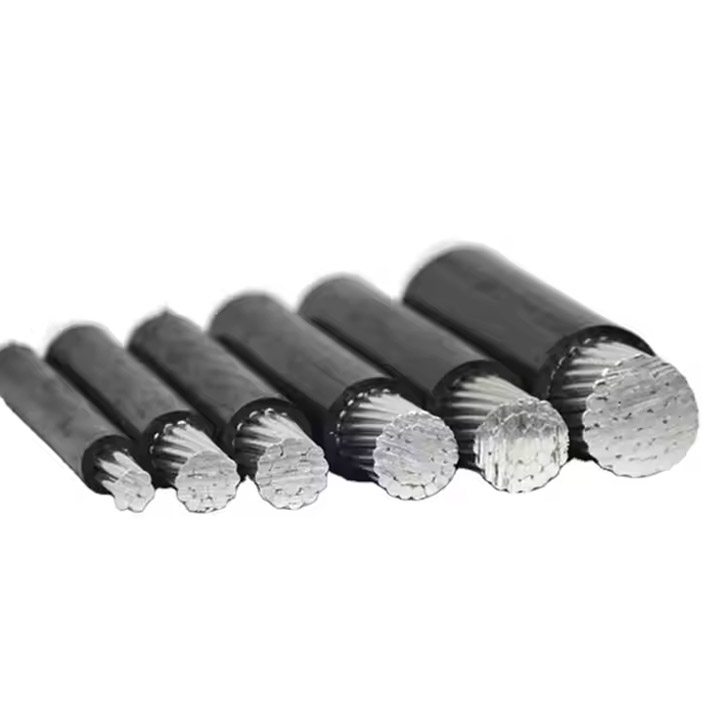

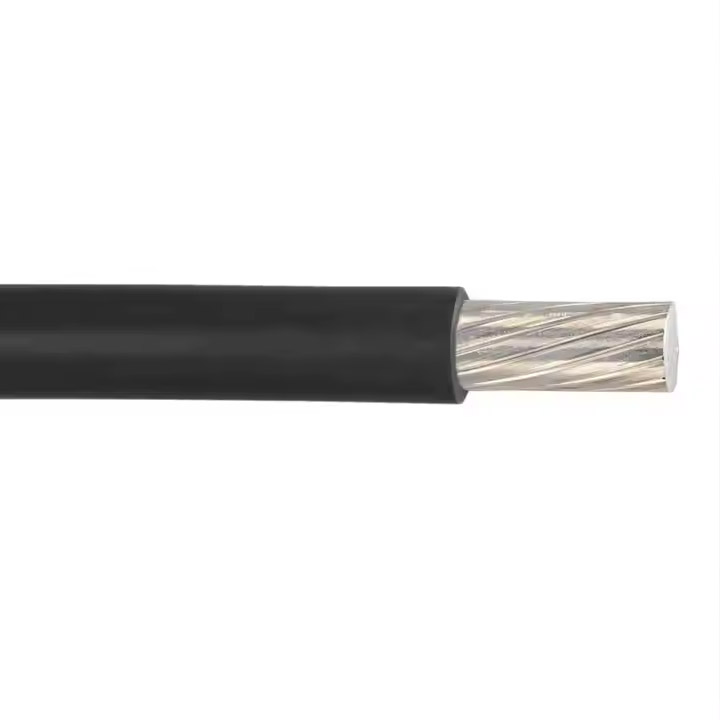

Aluminum XHHW-2 600V XLPE Insulation Cable-Picture1Aluminum XHHW-2 600V XLPE Insulation Cable-Picture1

Product Overview

The Aluminum XHHW-2 600V Cable is a high-performance power distribution cable designed for versatility in commercial, industrial, and residential applications. Featuring compact 8000 series aluminum conductors and cross-linked polyethylene (XLPE) insulation, this cable is engineered to deliver reliable power transmission in wet or dry environments. Rated for 600 volts and 90°C, it combines durability, flexibility, and compliance with leading industry standards.

Key Features

  • Voltage Rating: 600V for robust power distribution.

  • Temperature Rating: Up to 90°C in wet or dry locations.

  • UV & Sunlight Resistant: Ideal for outdoor and exposed installations.

  • Compact Aluminum Conductors: Lightweight, cost-effective, and corrosion-resistant.

  • Low-Friction Insulation: XLPE provides abrasion resistance and smooth installation.

  • Color Options: Available in 10 solid colors for easy phase identification.

Construction Details

Conductor

  • Material: Compact soft-drawn bare aluminum alloy (8000 series per ASTM B800/B801).

  • Stranding: Class B stranding for flexibility and mechanical durability.

Insulation

  • Material: Cross-linked polyethylene (XLPE) per UL 44 and NEMA WC-70.

  • Properties: Heat, moisture, and abrasion resistant with a low coefficient of friction.

  • Color Coding: Ten solid-color options for phase identification and compliance.

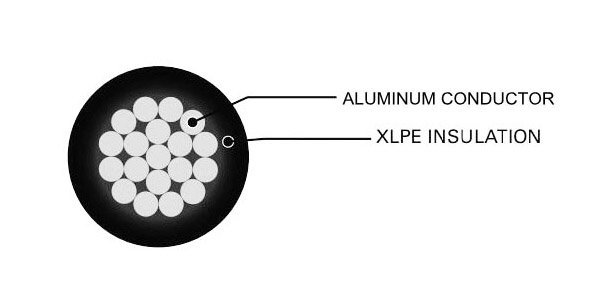

Aluminum XHHW-2 600V XLPE Insulation Cable-Picture2

Technical Specifications

Parameter Specification
Voltage Rating 600V
Temperature Range -40°C to 90°C (wet/dry)
Conductor Material 8000 Series Aluminum Alloy
Standards UL 44, NEMA WC-70, NEC, ASTM B800/B801, J-C-30B
Insulation XLPE (UV-resistant for outdoor use)
Flame Resistance Meets NEC flame-retardant requirements

Applications

  • Power Distribution: Commercial buildings, industrial plants, and residential complexes.

  • Outdoor Installations: Solar farms, street lighting, and utility poles (UV-resistant).

  • Wet/Dry Locations: Conduit systems, underground raceways, and exposed wiring.

  • Renewable Energy: Solar panel arrays and wind turbine connections.

Compliance & Certifications

  • UL 44: Certified for thermoset-insulated wires and cables.

  • NEMA WC-70: Compliant with industrial cable standards.

  • Federal Spec J-C-30B: Sunlight-resistant for outdoor durability.

  • RoHS: Environmentally compliant with hazardous substance restrictions.

Engineering Selection Guide

  1. Cost-Efficiency: Aluminum conductors reduce weight and cost vs. copper.

  2. Harsh Environments: XLPE insulation ensures longevity in wet, abrasive, or UV-exposed areas.

  3. Ease of Installation: Low-friction insulation simplifies pulling through conduits.

  4. Code Compliance: Verify NEC and local electrical code adherence for specific applications.
