Product Overview

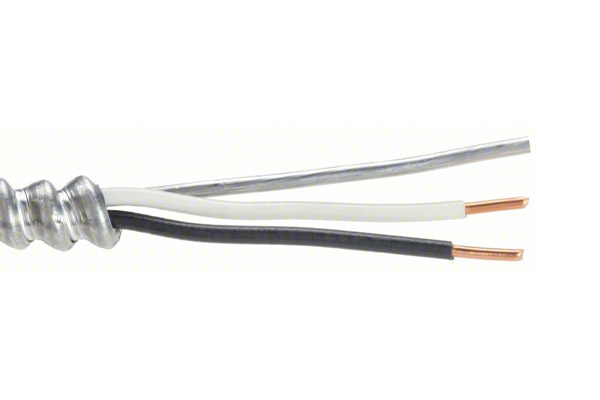

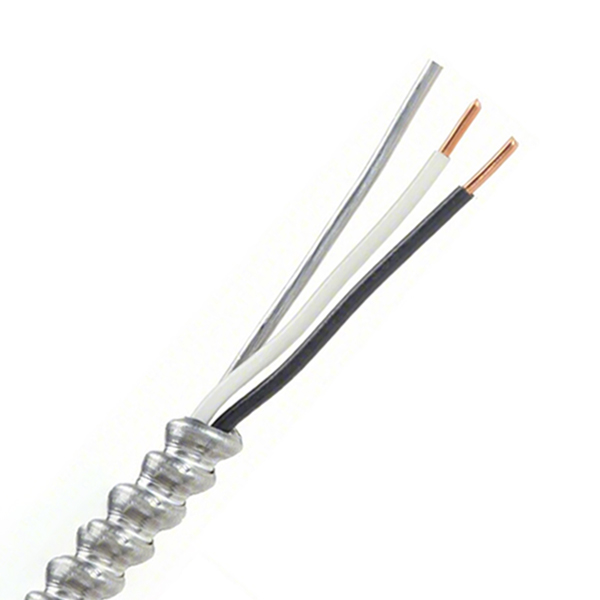

The 10 AWG Metal Clad Armored Cable is a heavy-duty electrical cable designed for industrial, commercial, and residential power distribution. Featuring 2 copper conductors, THHN insulation, and interlocked aluminum armor, this UL-listed cable ensures durability, safety, and compliance with NEC standards. Rated for 600V and 90°C, it is ideal for exposed or concealed installations in demanding environments.
Key Features
-
Voltage Rating: 600V for reliable low-voltage power transmission.
-
Temperature Rating: 90°C (194°F) dry operation.
-
Lightweight Armor: Interlocked aluminum jacket for mechanical protection and flexibility.
-
Integrated Grounding: Includes a bare 8 AWG aluminum grounding conductor for NEC compliance.
-
Flame Resistance: Meets UL flame-retardant standards (FT4/IEEE 1202 optional).
-
Standards Compliance: UL Listed, NEC Article 330, RoHS/REACH compliant.
Construction Details
Conductors
-
Power Conductors:
-
Material: Solid copper (10 AWG), THHN insulation (black/white).
-
Insulation: PVC (polyvinyl chloride) for heat, moisture, and chemical resistance.
-
-
Grounding Conductor:
-
Material: Bare aluminum (8 AWG), uninsulated.
-
Armor & Assembly
-
Armor: Interlocked aluminum jacket (silver) for crush resistance and EMI shielding.
-
Assembly: Conductors cabled with a binder tape, wrapped in aluminum armor for NEC-compliant grounding.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 600V |
| Conductor Size | 10 AWG (Copper) / 8 AWG (Aluminum Ground) |
| Temperature Range | Up to 90°C (194°F) dry |
| Cable Length | 250 ft coil |
| Outer Diameter | 0.49 in |
| Standards | UL Listed, NEC 330, FT4/IEEE 1202 (optional) |
| Environmental Compliance | RoHS/REACH |
Applications
-
Industrial Facilities: Machinery, control panels, and motor circuits.
-
Commercial Buildings: Exposed wiring in warehouses, retail spaces, and offices.
-
Residential Use: Branch circuits, HVAC systems, and outdoor lighting.
-
Harsh Environments: Cable trays, raised floors (NEC 645.5), and areas requiring mechanical protection.
-
Temporary Installations: Construction sites and portable equipment.
Compliance & Certifications
-
UL Listed: Certified for safety and performance (UL 1569 for armored cables).
-
NEC Compliance: Meets Article 330 for metal-clad cable installations.
-
Flame Test: Optional FT4/IEEE 1202 certification for vertical flame resistance.
Engineering Selection Guide
-
Mechanical Protection: Choose aluminum armor for crush resistance in high-traffic areas.
-
Grounding Needs: Integrated aluminum ground ensures NEC compliance and safety.
-
Flexibility: Lightweight design simplifies routing in tight spaces.
-
Fire Safety: Opt for FT4 certification in theaters, data centers, or air-handling spaces.
