Type G-GC Power, Round Portable W/Ground-Check Cable (EPR/CPE 2000V, 90°C, 3 Conductors)

UL Certified Machinery & Equipment Mining Cables45
Description

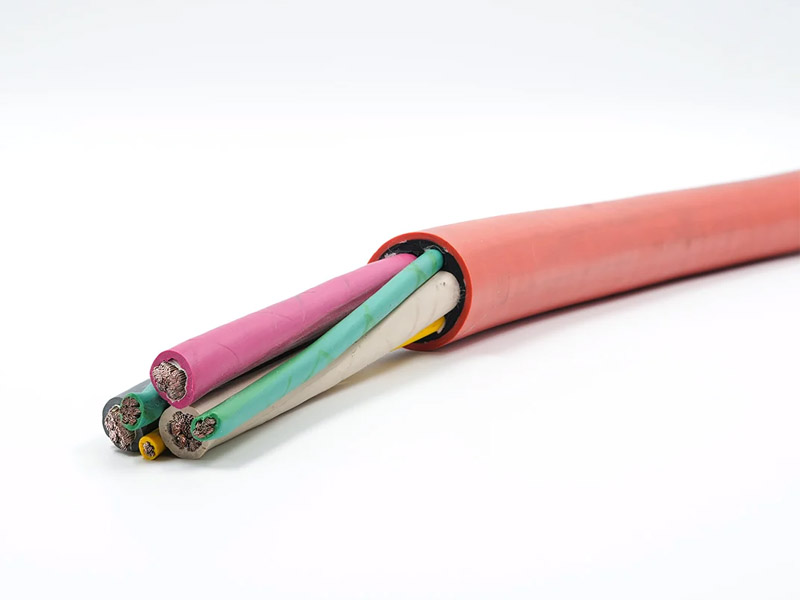

Type G-GC Power, Round Portable W/Ground-Check Cable (EPR/CPE 2000V, 90°C, 3 Conductors)-Picture1 Type G-GC Power, Round Portable W/Ground-Check Cable (EPR/CPE 2000V, 90°C, 3 Conductors)-Picture1

Product Overview

The Type G-GC Power Cable is a rugged, round portable cable engineered for high-safety AC mining applications requiring ground-check monitoring. Featuring EPR insulation and a reinforced CPE jacket, this cable is built to withstand extreme mechanical stress, environmental hazards, and continuous flexing. Rated for 2000 volts and 90°C, it ensures reliable power transmission with fail-safe ground integrity in critical industrial environments.

Key Features

  • Voltage Rating: 2000V for heavy-duty power applications.

  • Temperature Rating: 90°C continuous operation.

  • Ground-Check Conductor: Enables real-time, fail-safe ground monitoring for enhanced safety.

  • Rope-Lay Conductors: Exceptional flexibility and resistance to wire breakage.

  • Reinforced Jacket: Two-layer CPE construction for superior abrasion, oil, and chemical resistance.

  • Compliance: Meets ICEA S-75-381 and MSHA flame-test standards.

Construction Details

Conductors

  • Power Conductors:

    • Material: Coated annealed copper (6 AWG to 500 kcmil).

    • Stranding: Rope-lay-stranded per ASTM B172 for maximum flexibility and durability.

    • Insulation: Ethylene Propylene Rubber (EPR), color-coded (black, white, red) for phase identification.

  • Ground-Check Conductor:

    • Material: Annealed copper, rope-lay-stranded per ASTM B172.

    • Insulation: High-strength yellow polypropylene for visibility and longevity.

  • Grounding Conductor:

    • Material: Two coated copper conductors, rope-lay-stranded per ASTM B172.

Jacket

  • Material: Reinforced, two-layer, extra-heavy-duty Chlorinated Polyethylene (CPE).

  • Benefits: Lead-cured for exceptional resistance to abrasion, cuts, oil, chemicals, and UV exposure.

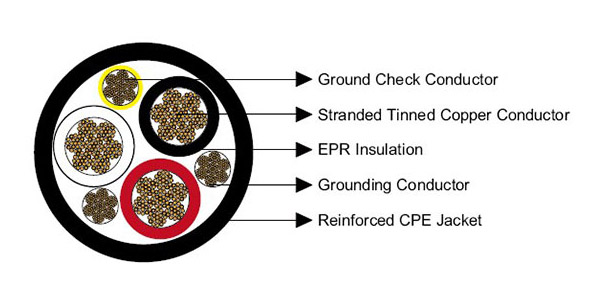

Type G-GC Power, Round Portable W/Ground-Check Cable (EPR/CPE 2000V, 90°C, 3 Conductors)-Picture2

Technical Specifications

Parameter Specification
Voltage Rating 2000V
Temperature Range -40°C to 90°C (continuous)
Conductor Sizes 6 AWG to 500 kcmil
Standards ICEA S-75-381, MSHA Certified
Flame Rating MSHA-Approved Flame Retardant
Resistance Oil, Chemicals, Abrasion, UV, Cutting

Applications

  • Mining Operations: Trailing cables for AC mining equipment (shovels, draglines, drills).

  • Industrial Machinery: Power feeds for equipment requiring ground-check monitoring.

  • Hazardous Environments: Areas exposed to oils, chemicals, steam, or mechanical stress.

  • Portable Power Systems: Construction sites, quarries, and temporary industrial setups.

Compliance & Certifications

  • ICEA S-75-381: Compliant with portable power feeder standards for mining and heavy industry.

  • MSHA: Certified flame-resistant and approved for mining applications.

  • Material Safety: RoHS-compliant, UV-stabilized, and chemically inert.

Engineering Selection Guide

  1. Ground-Check Critical: Prioritize this cable for systems requiring real-time ground integrity monitoring.

  2. High Flexibility: Rope-lay stranding ensures durability in dynamic or repetitive motion applications.

  3. Extreme Environments: Reinforced CPE jacket protects against abrasion, oil, and chemical exposure.

  4. Safety Compliance: Confirm MSHA and ICEA certifications for regulated industries.
