N2XH Copper Conductor XLPE/LSZH Insulation LSZH Inner Sheath Power Cable

Low Voltage Power Cables Halogen-Free / LSZH Cables
Description

N2XH Copper Conductor XLPE/LSZH Insulation LSZH Inner Sheath Power Cable

Product Overview

The N2XH is a low voltage power and control cable designed for fixed applications where mechanical protection is not required. It is suitable for indoor and outdoor installation, as well as for laying in concrete, but it is not intended for direct burial or immersion in water.

The cable uses XLPE insulation and LSZH (Low Smoke Zero Halogen) materials to ensure increased safety in the event of fire by virtually eliminating toxic fumes when burnt. Compared with PVC cabling, N2XH offers pronounced advantages including low fire load, low smoke emission, and reduced fire propagation.

Applications

These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with additional mechanical protection. The cables can be fixed on cable trays, within conduits, or fixed to walls.

Typical applications include:

  • Energy networks

  • Refineries

  • Mines

  • Hotels

  • Schools

  • Tunnels

  • High constructions

  • Hospitals

  • Power plants

  • Data processing centers

  • Business centers

They are particularly suitable for environments where there is a risk of fire.

Important limitation: Not suitable for direct burial or immersion in water without additional protection.

Features & Benefits

  • Low Smoke Zero Halogen: LSZH construction reduces toxic fumes and smoke emission in fire conditions.

  • Reduced Fire Propagation: Low fire load and reduced flame spread compared with PVC cables.

  • Increased Fire Safety: Suitable for buildings and installations where fire risk must be minimised.

  • Fixed Installation: Designed for fixed power and control applications where mechanical protection is not required.

  • Indoor and Outdoor Use: Suitable for indoor, outdoor, and concrete-embedded installation.

  • Temperature Performance: Fixed temperature rating from -20°C to +90°C.

  • Cold Resistance: Specification highlights indicate cold resistance down to -25°C.

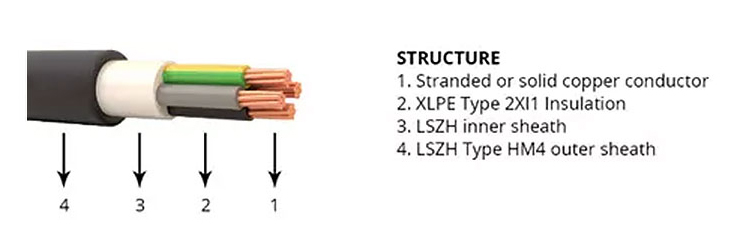

Construction

  • Conductor: Copper

    • Up to 16 mm²: Class 1 solid copper conductor

    • Above 16 mm²: Class 2 stranded copper conductor

  • Insulation: XLPE

  • Filler: LSZH

  • Outer Sheath: LSZH (Low Smoke Zero Halogen)

  • Sheath Colour: Black

Technical Data

Characteristics

  • Voltage Rating (Uo/U): 600/1000V

  • Temperature Rating (Fixed): -20°C to +90°C

  • Cold Resistance: -25°C (as per specification highlights)

  • Minimum Bending Radius: 12 x overall diameter

  • Sheath Colour: Black

  • Standard: DIN VDE 0276-604

Single Core Cable

Number of Cores and Cross Section (mm²) Outer Diameter approx. (mm) Weight of Cable approx. (kg/km) Calorific Potential (kWh/m)
1 x 4 RE 7.3 89 0.29
1 x 6 RE 7.8 112 0.33
1 x 10 RE 8.6 156 0.38
1 x 16 RM 9.8 226 0.46
1 x 25 RM 11.4 327 0.62
1 x 35 RM 12.6 429 0.71
1 x 50 RM 13.8 555 0.82
1 x 70 RM 15.7 765 1.00
1 x 95 RM 17.4 1,024 1.14
1 x 120 RM 19.0 1,263 1.32
1 x 150 RM 20.9 1,542 1.59
1 x 185 RM 23.1 1,918 1.91
1 x 240 RM 25.6 2,466 2.24
1 x 300 RM 28.1 3,065 2.58

Multicore Cable

Number of Cores and Cross Section (mm²) Outer Diameter approx. (mm) Weight of Cable approx. (kg/km) Calorific Potential (kWh/m)
2 x 1.5 RE 9.3 125 0.45
2 x 2.5 RE 10.1 158 0.52
3 x 1.5 RE 9.7 142 0.51
3 x 2.5 RE 10.6 184 0.59
3 x 4 RE 11.7 247 0.70
3 x 6 RE 12.8 322 0.80
3 x 10 RE 14.9 480 1.02
3 x 16 RM 17.7 732 1.36
4 x 1.5 RE 10.4 166 0.60
4 x 2.5 RE 11.4 220 0.69
4 x 4 RE 12.6 298 0.84
4 x 6 RE 13.8 391 0.95
4 x 10 RE 16.3 599 1.26
4 x 16 RM 19.2 908 1.63
4 x 25 RM 23.9 1,413 2.48
4 x 35 RM 26.7 1,863 2.93
4 x 50 SM 29.1 2,362 3.76
4 x 70 SM 32.2 3,151 4.55
4 x 95 SM 37.2 4,339 5.72
4 x 120 SM 40.8 5,332 6.36
5 x 1.5 RE 11.2 195 0.71
5 x 2.5 RE 12.3 260 0.84
5 x 4 RE 13.7 357 1.00
5 x 6 RE 15.4 486 1.21
5 x 10 RE 17.8 723 1.52
5 x 16 RM 21.6 1,138 2.07
5 x 25 RM 26.0 1,700 2.78
7 x 1.5 RE 12.0 239 0.80
10 x 1.5 RE 15.6 358 1.18
12 x 1.5 RE 16.0 395 1.29
14 x 1.5 RE 16.9 446 1.48
19 x 1.5 RE 18.6 557 1.80
24 x 1.5 RE 22.2 736 2.35
30 x 1.5 RE 23.3 857 2.72
40 x 1.5 RE 26.0 1,080 3.09
7 x 2.5 RE 13.2 323 0.93
10 x 2.5 RE 17.4 482 1.40
12 x 2.5 RE 17.9 540 1.53
14 x 2.5 RE 18.7 603 1.72
19 x 2.5 RE 21.2 796 2.18
24 x 2.5 RE 24.6 998 2.73
30 x 2.5 RE 25.9 1,176 3.17

Note: RE = solid conductor, RM = stranded conductor, SM = sector-shaped stranded conductor. Values are approximate and subject to standard manufacturing tolerances.

Standards & Compliance

  • DIN VDE 0276-604

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: N2XH Copper Conductor XLPE/LSZH Insulation LSZH Inner Sheath Power Cable

  • Voltage Rating: 600/1000V

  • Number of Cores and Cross Section: e.g., 4 x 25 mm², 5 x 16 mm², 1 x 95 mm²

  • Conductor Type: Class 1 solid (up to 16 mm²) or Class 2 stranded (above 16 mm²)

  • Sheath Colour: Black

  • Quantity: Total length in meters
