NYY Low Voltage PVC Insulated Power Cable – DIN VDE

Low Voltage PVC Insulated DIN VDE Standard NYY/NAYY Power Cable

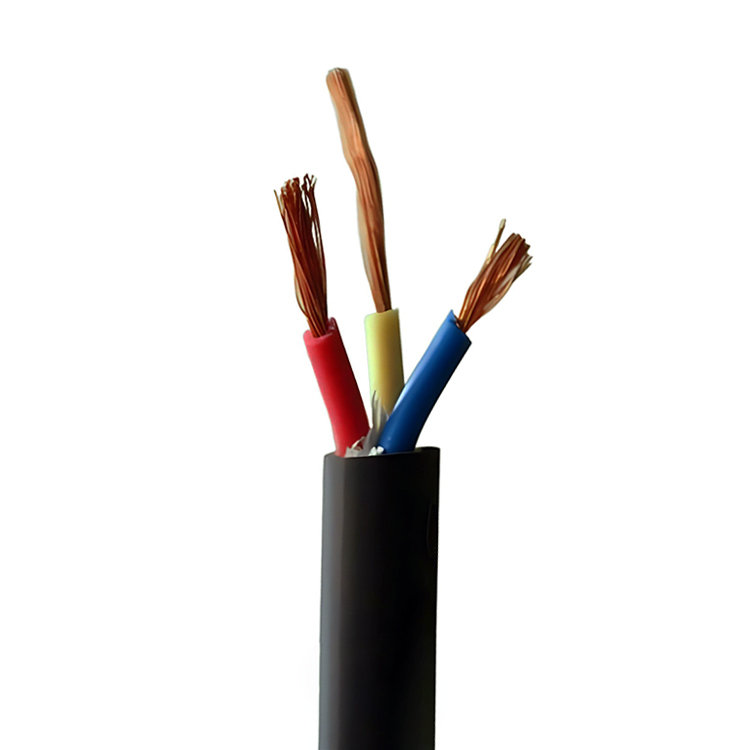

Product Overview

These cables are used for electricity supply in low voltage installation systems. They are suitable for installation indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, and industrial plants, where there is no risk of mechanical damage.

Applications

• Electricity supply in low voltage installation systems

• Indoor and outdoor installation

• Cable ducts and underground installation

• Power and switching stations

• Local energy distributions

• Industrial plants where there is no risk of mechanical damage

Features & Benefits

• Voltage Rating: Low voltage

• Conductor Material: Copper or Aluminium

• Conductor Class: IEC 60228 Class 1 or Class 2

• Insulation: PVC Compound

• Bedding/Inner Sheath: PVC Compound

• Ambient Temperature for Installation: ≥0°C

• Maximum Conductor Temperature in Normal Operation: ≤70°C

• Max Operating Temperature of Conductor During Short Circuit (5s max duration): 160°C

• Permissible Minimum Bending Radius:

  • Single unarmoured cable: (20D±5%) mm

  • Multi-core unarmoured cable: (15D±5%) mm

  • Single armoured cable: (15D±5%) mm

  • Multi-core armoured cable: (12D±5%) mm

  • Note: D = overall cable diameter

• Standards: DIN VDE 0276-603, DIN VDE 0276-627, GB/12706-2008, IEC 60502-1, IEC 60228, IEC 60332, BS 6346, AS/NZS 5000.1, etc.

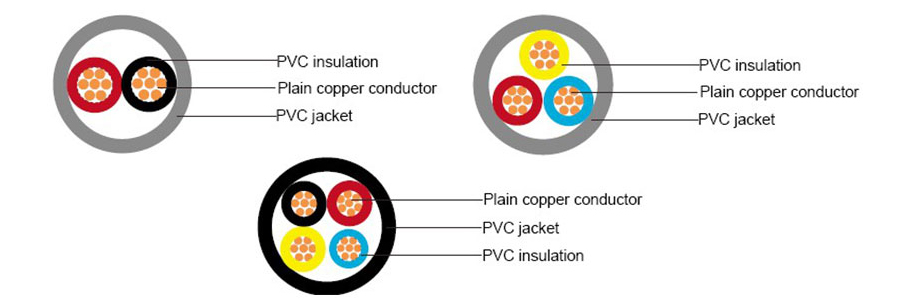

Construction

• Conductor Shape: RE = circular solid, CC = compacted circular stranded, SM = sector shaped stranded

• Conductors: Plain circular, compacted, or shaped stranded copper or aluminium conductor, conform to IEC 60228 Class 1 or Class 2

• Insulation: PVC Compound Insulation

• Colour Identification:

  • 1 Core: Red or Black

  • 2 Cores: Red, Black

  • 3 Cores: Red, Yellow, Blue

  • 4 Cores: Red, Yellow, Blue, Black

  • 5 Cores: Red, Yellow, Blue, Black, Green

  • Above 5 Cores: Black cores with white numerals

  • The above identification can be changed as per order

• Bedding/Inner Sheath: PVC Compound

• Note: The armored material of single core cable should be non-magnetic or magnetic reduced structure. Generally, single core armored cable (which uses steel or steel wire armored cable) only applies to DC occasions.

Technical Data

Single Core – NYY / NAYY

2 Cores – NYY / NAYY

3 Cores – NYY / NAYY

4 Cores – NYY / NAYY

Standards & Compliance

• DIN VDE 0276-603

• DIN VDE 0276-627

• GB/12706-2008

• IEC 60502-1

• IEC 60228

• IEC 60332

• BS 6346

• AS/NZS 5000.1

• etc.

Ordering Information

To request a quote or place an order, please provide the following information:

• Product Type: Low Voltage PVC Insulated DIN VDE Standard NYY Power Cable

• Number of Cores: 1, 2, 3, 4, 5, etc.

• Nominal Cross-Section: e.g., 1×1.5 mm², 3×25 mm²

• Conductor Material: Copper (NYY) or Aluminium (NAYY)

• Conductor Shape: RE, CC, or SM

• Insulation Color: As per standard or requested

• Quantity: Total length in meters
