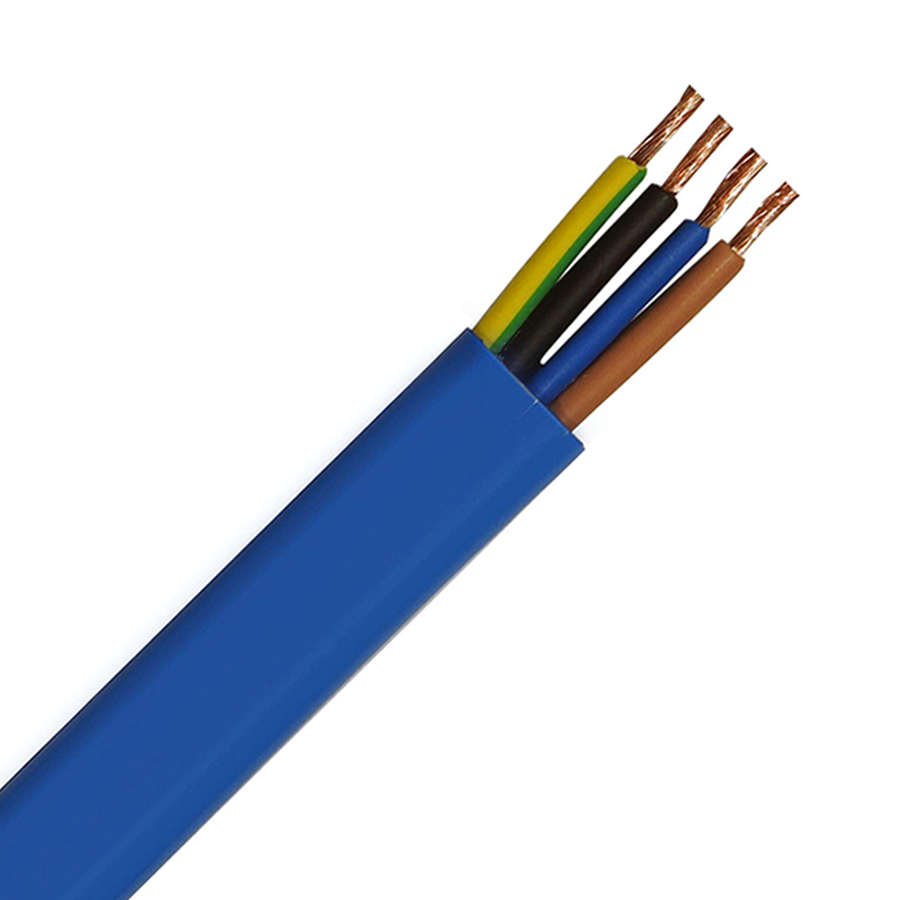

EPDM Rubber Insulated Flat Submersible Pump Cable (3 & 4 Cores)

Product Overview

Engineered for demanding deep-well environments, this heavy-duty flat submersible pump cable delivers reliable power to motors at depths of up to 500 meters. Its robust construction, featuring flexible copper conductors and a fully EPDM rubber insulation and sheath, ensures long-lasting performance under harsh conditions including prolonged submersion, exposure to chemicals, and extreme temperatures from -40°C to +90°C.

Key Features & Benefits

  • Extreme Environment Ready: Withstands temperatures from -40°C to +90°C and is excellently resistant to oils, acids, chemicals, ozone, and solvents.

  • Durable & Flexible Design: The flat EPDM rubber construction provides superior mechanical protection while maintaining the flexibility needed for easy installation in confined well casings.

  • Built for Depth: Specifically engineered for reliable, continuous operation at depths of up to 500 meters.

  • Internationally Recognized: Manufactured in compliance with major European and international standards for quality assurance.

Technical Specifications

Feature Specification
Configuration 3-Core or 4-Core Flat Cable
Rated Voltage 450/750V or 600/1000V (Custom voltages available)
Conductor Finely Stranded Bare Copper
Insulation & Sheath EPDM Rubber
Max. Operating Temperature +90°C
Min. Operating Temperature -40°C
Oil & Chemical Resistance Excellent
Max. Recommended Depth 500 meters
Sheath Color Black or Blue

Applications

This cable is the ideal power supply solution for:

  • Submersible pump motors in deep water wells, boreholes, and irrigation systems.

  • Agricultural, residential, and industrial water pumping applications.

  • Any installation requiring a rugged, flat-profile cable resistant to moisture, abrasion, and corrosive environments.

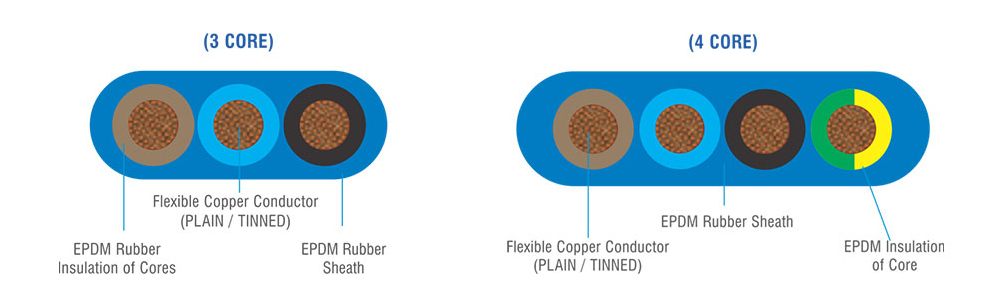

Construction & Identification

Component Description
Conductor Flexible, finely stranded bare copper.
Insulation EPDM rubber on each core.
Outer Sheath Heavy-duty EPDM rubber.
Core Colors 3-Core: Red, Yellow, Blue OR Brown, Blue, Black
4-Core: 4core: Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

Compliance & Standards

Designed to meet the requirements of:

  • CENELEC HD 22.1.S2

  • DIN VDE 0282 Part 810

  • IEC 60245

  • CEI 20-19

  • BS 6007, BS 6899
