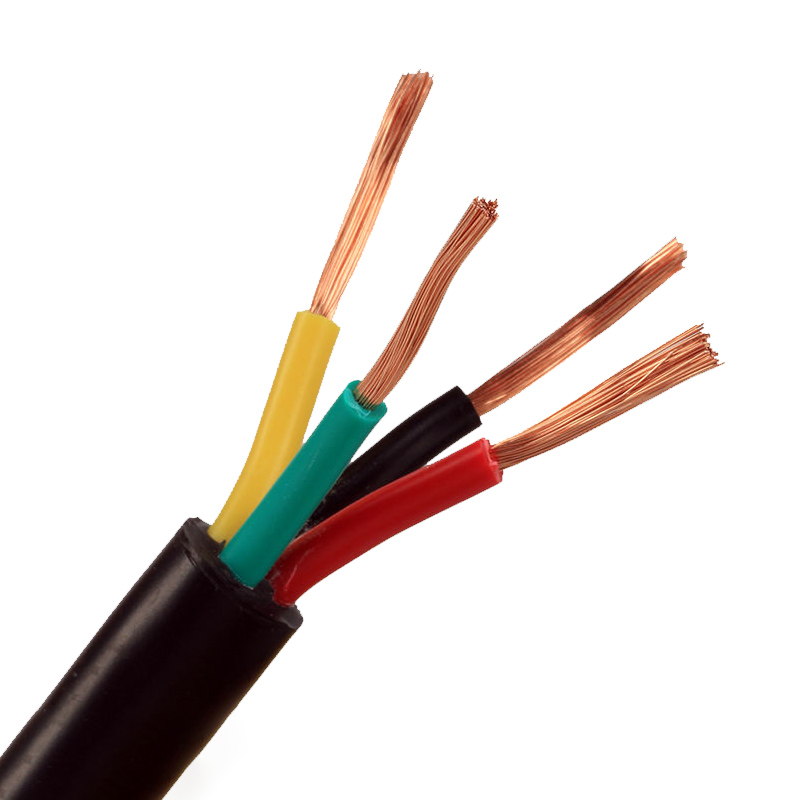

PVC Insulated Round Submersible Pump Cable (3 & 4 Cores)
Product Overview
This round submersible pump cable is designed for reliable power transmission to submersible motors in deep-well applications, supporting depths of up to 500 meters. Constructed with flexible copper conductors, PVC insulation, and a PVC sheath, it offers a robust and cost-effective solution with excellent resistance to environmental hazards commonly encountered in water well and pumping systems.
Key Features & Benefits
-
UL Recognized: Manufactured in accordance with UL specifications for 75°C Type TW cable, ensuring safety and reliability for the North American market.
-
Superior Environmental Resistance: Provides excellent resistance to moisture, abrasion, grease, oil, acids, chemicals, and ozone.
-
Broad Standards Compliance: Generally conforms to major international standards including UL 83, IEC 60227, BS 6500, and IS 694, ensuring global applicability.
-
Durable Round Design: The round construction offers balanced mechanical protection and ease of handling for vertical installations in wells.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | Low Voltage |
| Configuration | 3-Core or 4-Core, Round |
| Temperature Rating | 75°C |
| Conductor | Finely Stranded Bare Flexible Copper |
| Insulation & Sheath | PVC (Polyvinyl Chloride) |
| Oil & Chemical Resistance | Excellent |
| Maximum Recommended Depth | 150 meters |
Applications
This cable is ideally suited for:
-
Supplying power to submersible motors in deep water wells, boreholes, and irrigation systems.
-
Continuous use in residential, agricultural, and commercial water pumping applications.
-
Environments where exposure to moisture, oil, and abrasion is a concern.

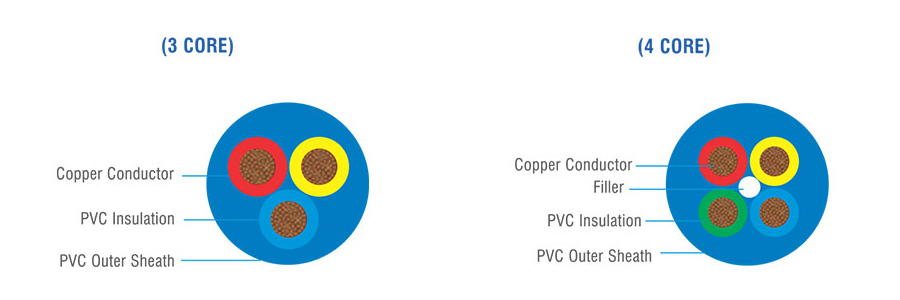

Construction Details
| Component | Description |
|---|---|
| Conductor | Finely stranded, bare, flexible copper wire. |
| Insulation | PVC insulation on each individual core. |
| Outer Sheath | Overall PVC sheath for mechanical and environmental protection. |
| Core Identification | 3-Core: Red, Yellow, Black 4-Core: Red, Yellow, Black, Green |
Standards & Compliance
This cable is designed to meet the following standards:
-
UL 83 (Thermoplastic-Insulated Wires and Cables)
-
IEC 60227 (Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V)
-
BS 6500 (Electric cables – Flexible cords rated up to 300/500 V, for use with appliances and equipment intended for domestic, office and similar environments)
-
IS 694 (Polyvinyl chloride insulated cables for working voltages up to and including 1100 volts)
