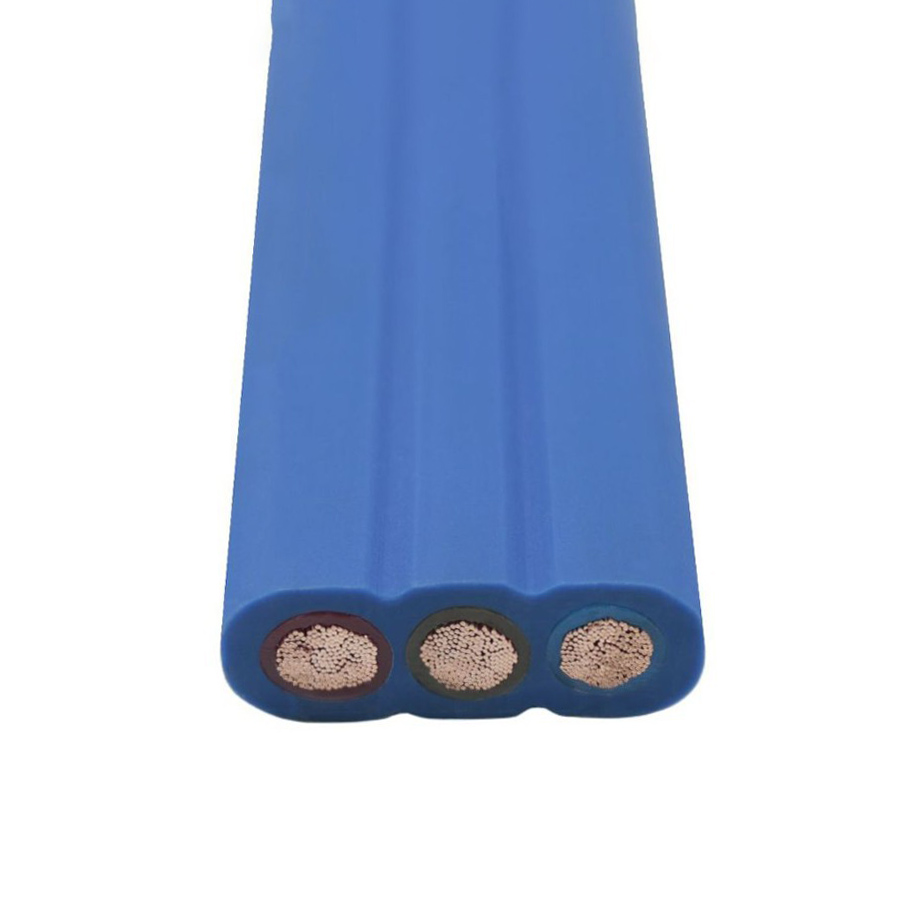

PVC Insulated Flat Submersible Pump Cable (3 & 4 Cores)
Product Overview
This PVC flat submersible pump cable is engineered for reliable and cost-effective power transmission to submersible motors in demanding deep-well applications, supporting installations up to 500 meters. It features flexible copper conductors, PVC insulation, and a robust PVC sheath, delivering a durable solution with proven resistance to moisture, abrasion, and oils. Its flat profile facilitates easier installation in confined well casings.
Key Features & Benefits
-
Robust Environmental Protection: Provides excellent resistance to moisture, abrasion, grease, and oil, ensuring long-term performance in wet and challenging conditions.
-
Compliant & Recognized: Conforms to major international standards for PVC insulated cables, including CENELEC HD 22, IEC 60227, BS 6500, DIN VDE 0281, and IS 694, ensuring broad market acceptance.
-
Superior Temperature Rating: Rated for a continuous operating temperature of 90°C, offering enhanced thermal performance and safety margin.
-
Reliable Electrical & Mechanical Properties: Designed for stable power delivery and physical durability in continuous deep-well operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | Low Voltage (e.g., 450/750V as per standards) |
| Configuration | 3-Core or 4-Core, Flat Design |
| Continuous Working Temperature | Up to 90°C |
| Conductor | Finely Stranded Bare Flexible Copper |
| Insulation & Sheath | PVC (Polyvinyl Chloride) |
| Oil & Moisture Resistance | Excellent |
| Maximum Recommended Depth | 200 meters |
Applications
This cable is ideally suited for:
-
Powering submersible motors in water wells, boreholes, and agricultural irrigation systems.
-
Residential, commercial, and industrial water supply and dewatering applications.
-
Installations requiring a flat-profile cable with reliable protection against water, abrasion, and oil.

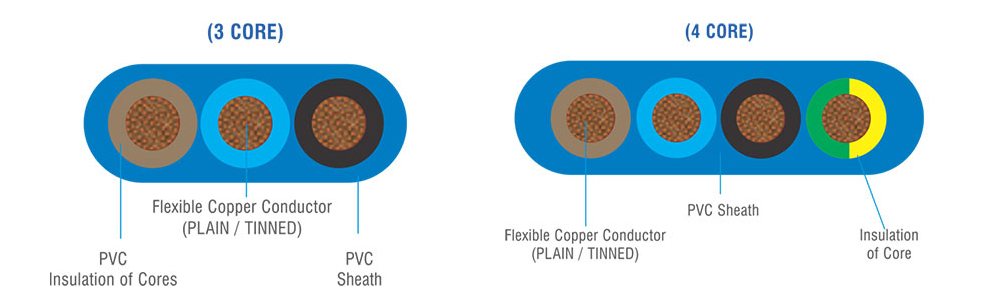

Construction Details
| Component | Description |
|---|---|
| Conductor | Finely stranded, bare, flexible copper wire. |
| Insulation | PVC insulation individually applied to each core. |
| Sheath | Single-layer PVC overall sheath for mechanical and environmental protection. |
| Core Identification | 3-Core: Red, Yellow, Blue OR Brown, Blue, Black 4-Core: Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line |
Standards & Conformance
This cable is designed and manufactured to conform to the following standards:
-
CENELEC HD 22 (Polyvinyl chloride insulated cables)
-
IEC 60227
-
BS 6500
-
DIN VDE 0281
-
IS 694
