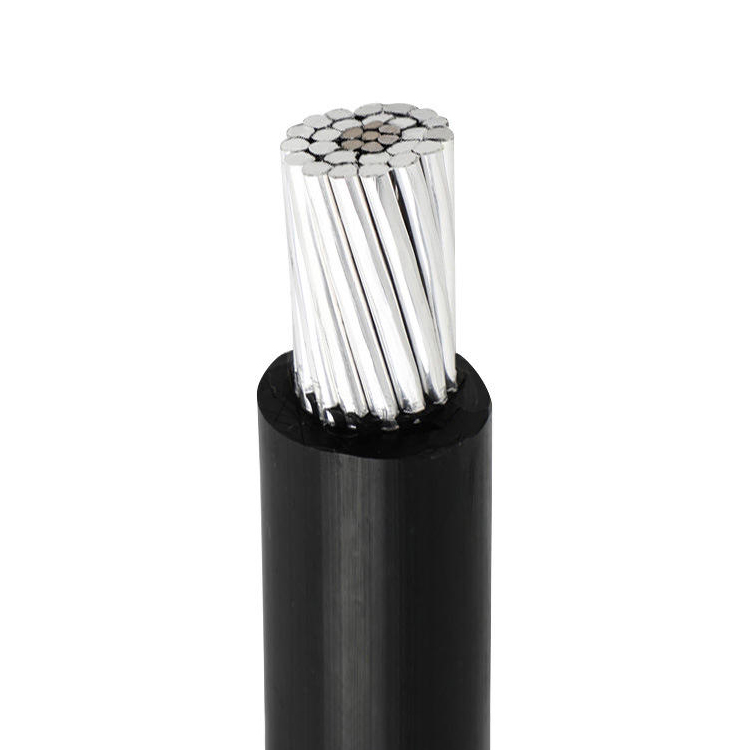

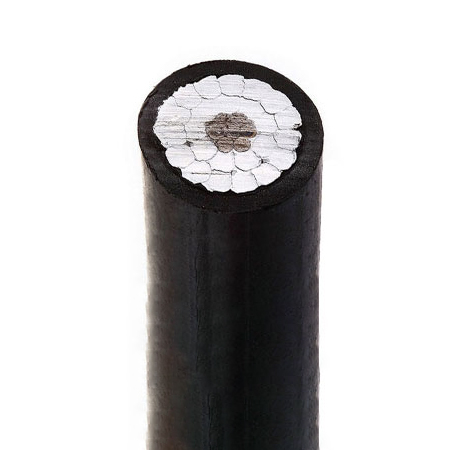

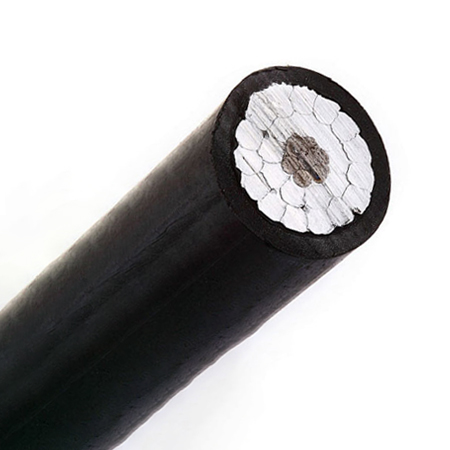

Product Overview
PVC covered aluminium conductors, steel reinforced Type 16, are primarily used for crossings of telecommunication lines and their proximities. The steel reinforcement provides additional mechanical strength, while the PVC insulation offers protection against accidental contact with low voltage lines and resistance to corrosive atmospheres.
Standard: BS 6485:1999
Application: Crossings of telecommunication lines and proximities to them.
Technical Data
| Property | Value |
|---|---|
| Temperature range (during installation & fixed) | +70°C |
| Nominal voltage | 650V |
| Minimum inner bending radius | 15 – 30 × OD |
| Chemical performance | Chemical & oil resistant |
Specifications
| Property | Details |
|---|---|
| Voltage Level | Low Voltage (650V) |
| Working Temperature | 70°C |
| Oil Resistance | ✓ |
| Conductor | Bare aluminium (Class 2 stranded) + galvanized steel wire |
| Insulation | PVC compound |
| Insulation Colour | Green |

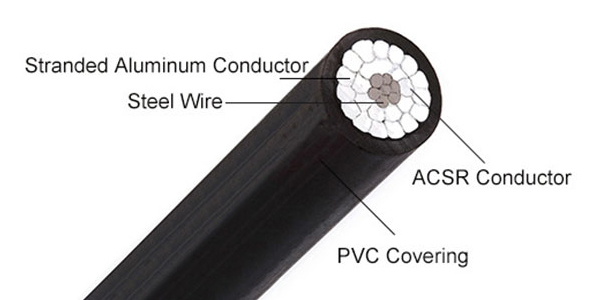

Construction
-
Conductor: Bare aluminium conductor of class 2 (stranded) combined with galvanized steel wire.
-
Insulation: PVC compound type.
-
Insulation colour: Green.
Technical Parameters – Datasheet
| Nominal Cross‑Section (mm²) | Conductor Structure (No./mm) | D.C. Resistance at 20°C (Ω/km) | Breaking Load (kN) | Approx. Overall Diameter (mm) | |
|---|---|---|---|---|---|
| Aluminium | Steel | Aluminium / Steel | |||
| 25 | – | 6/2.36 + 1/2.36 | 1.093 | 9.61 | 10.7 |
| 50 | – | 6/3.35 + 1/3.35 | 0.5426 | 18.35 | 14.1 |
| 100 | – | 6/4.72 + 7/1.57 | 0.2733 | 32.7 | 18.2 |
| 150 | – | 30/2.59 + 7/2.59 | 0.1828 | 69.2 | 22.2 |
| 150 | – | 18/3.35 + 1/3.35 | 0.1815 | 35.7 | 20.8 |
| 175 | – | 30/2.79 + 7/2.79 | 0.1576 | 79.8 | 23.6 |
| 175 | – | 18/3.61 + 1/3.61 | 0.1563 | 41.1 | 22.1 |
| 200 | – | 30/3.00 + 7/3.00 | 0.1363 | 92.25 | 25.0 |
| 200 | – | 18/3.86 + 1/3.86 | 0.1367 | 46.55 | 23.3 |
