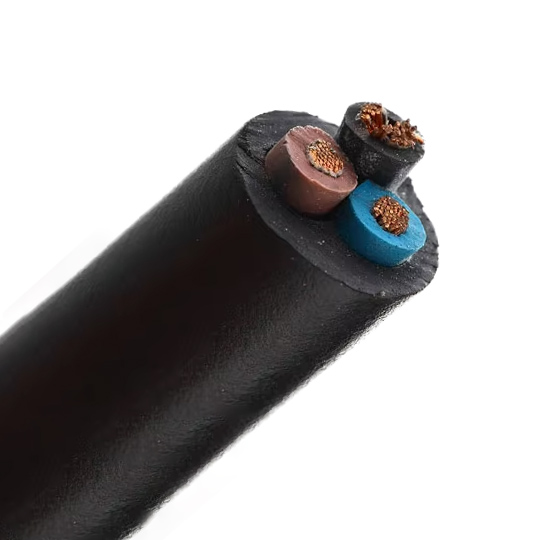

H07RN-8-F BS EN 50525-2-21 Flexible Rubber Cable
Product Overview
The H07RN-8-F is a low voltage flexible rubber cable designed for installation in dry, damp, or wet environments, including workshops with explosive atmospheres. It can be immersed in fresh water up to 10 m depth and may be used as an energy supply cable for submersed pumps. It is not suitable for underwater power transmission or installation in a waterway, or where mechanical damage might occur and cause hazard.
The cable is intended for connections liable to moderate mechanical stresses, such as industrial or agricultural workshop apparatus, large boilers, heater plates, electric tools (e.g., drills and disk saws), electric appliances, portable motors and generators on building sites. It is also suitable for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc. It is suitable for applications up to 1 kV for adequately protected fixed installations (e.g., inside pipes or equipment) as well as for rotor connections to lifting equipment motors.
The cable is manufactured according to BS EN 50525-2-21, HD 22.4S3, CEI 20-19 Part 16, BS EN 60228, and VDE 0295, with flame retardant performance according to BS EN/IEC 60332-1-2.
Key Features & Benefits
-
Water Immersion: Suitable for immersion in fresh water up to 10 m depth.
-
Submersible Pump Ready: Can be used as an energy supply cable for submersed pumps.
-
High Flexibility: Class 5 flexible copper conductor for ease of handling and installation.
-
Rubber Construction: Rubber insulation (type EI 4) and rubber outer sheath (type EM2).
-
Flame Retardant: Complies with BS EN/IEC 60332-1-2.
-
Voltage Rating: 450/750V.
-
Wide Temperature Range: Fixed: -40°C to +60°C; Flexed: -15°C to +60°C.
-
Mechanical Stress Resistant: Designed for moderate mechanical stresses in industrial and agricultural applications.
-
Standards Compliant: BS EN 50525-2-21, HD 22.4S3, CEI 20-19 Part 16, BS EN 60228, VDE 0295.
Typical Applications
-
Dry, damp, or wet environments
-
Workshops with explosive atmospheres
-
Energy supply for submersed pumps (fresh water up to 10 m depth)
-
Industrial or agricultural workshop apparatus
-
Large boilers and heater plates
-
Electric tools such as drills and disk saws
-
Electric appliances, portable motors and generators on building sites
-
Fixed installations along floors or shelving on temporary job sites
-
Connecting structural elements in lifting apparatus and machinery
-
Rotor connections to lifting equipment motors
-
Adequately protected fixed installations up to 1 kV (inside pipes or equipment)
Not suitable for: Underwater power transmission, installation in a waterway, or where mechanical damage might occur and cause hazard.
Construction Details
-
Conductor: Class 5 flexible copper conductor
-
Insulation: Rubber (core insulation: rubber compound, type EI 4)
-
Outer Sheath: Rubber (outer sheath: rubber compound, type EM2)
-
Sheath Colour: Black
Core Identification:
-
1 core: Black
-
2 core: Blue, Brown
-
3 core: Green/Yellow, Blue, Brown
-
4 core: Green/Yellow, Blue, Brown, Grey
-
5 core: Green/Yellow, Blue, Brown, Black, Grey
-
6 core and above: Black with White numbers, Green/Yellow
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Voltage Rating U/Uo | 450/750V |
| Temperature Rating – Fixed | -40°C to +60°C |
| Temperature Rating – Flexed | -15°C to +60°C |
| Minimum Bending Radius – Fixed | 4 x overall diameter |
| Minimum Bending Radius – Flexed | 6 x overall diameter |
| Flame Retardant | BS EN/IEC 60332-1-2 |
Parameter Table – Single Core
| No. of Cores | Nominal Cross Sectional Area (mm²) | Conductor Diameter (mm) | Minimum Overall Diameter (mm) | Maximum Overall Diameter (mm) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|
| 1 | 1.5 | 1.5 | 5.7 | 7.1 | 50 |
| 1 | 2.5 | 1.9 | 6.3 | 7.9 | 70 |
| 1 | 4 | 2.4 | 7.2 | 9 | 100 |
| 1 | 6 | 3 | 7.9 | 9.8 | 130 |
| 1 | 10 | 3.9 | 9.5 | 11.9 | 200 |
| 1 | 16 | 4.9 | 10.8 | 13.4 | 280 |
| 1 | 25 | 6.1 | 12.7 | 15.8 | 400 |
| 1 | 35 | 7.3 | 14.3 | 17.9 | 510 |
| 1 | 50 | 8.9 | 16.5 | 20.6 | 710 |
Parameter Table – Multi Cores
| No. of Cores | Nominal Cross Sectional Area (mm²) | Conductor Diameter (mm) | Minimum Overall Diameter (mm) | Maximum Overall Diameter (mm) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|
| 3 | 1.5 | 1.5 | 9.2 | 11.9 | 150 |
| 3 | 2.5 | 1.9 | 10.9 | 14 | 210 |
| 3 | 4 | 2.4 | 12.7 | 16.2 | 280 |
| 3 | 6 | 3 | 14.1 | 18 | 370 |
| 3 | 10 | 3.9 | 19.1 | 24.2 | 660 |
| 3 | 16 | 4.9 | 21.8 | 27.6 | 920 |
| 3 | 25 | 6.1 | 26.1 | 33 | 1360 |
| 3 | 35 | 7.3 | 29.3 | 37.1 | 1820 |
| 3 | 50 | 8.9 | 34.1 | 42.9 | 2500 |
| 4 | 1 | 1.2 | 9.2 | 11.9 | 150 |
| 4 | 1.5 | 1.5 | 10.2 | 13.1 | 190 |
| 4 | 2.5 | 1.9 | 12.1 | 15.5 | 260 |
| 4 | 4 | 2.4 | 14 | 17.9 | 350 |
| 4 | 6 | 3 | 15.7 | 20 | 460 |
| 4 | 10 | 3.9 | 20.9 | 26.5 | 830 |
| 4 | 16 | 4.9 | 23.8 | 30.1 | 1190 |
| 4 | 25 | 6.1 | 28.9 | 36.6 | 1720 |
| 4 | 35 | 7.3 | 32.5 | 41.1 | 2260 |
| 7 | 1.5 | 1.5 | 15 | 19 | 340 |
| 7 | 2.5 | 1.9 | 17.5 | 21.5 | 500 |
| 12 | 1.5 | 1.5 | 17.6 | 22.4 | 530 |
| 12 | 2.5 | 1.9 | 20.6 | 26.2 | 720 |
| 18 | 1.5 | 1.5 | 20.7 | 26.3 | 700 |
| 24 | 1.5 | 1.5 | 24.3 | 30.7 | 960 |
| 36 | 1.5 | 1.5 | 27.8 | 35.2 | 1360 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
BS EN 50525-2-21
-
HD 22.4S3
-
CEI 20-19 Part 16
-
BS EN 60228
-
VDE 0295
-
Flame Retardant: BS EN/IEC 60332-1-2
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: H07RN-8-F
-
Voltage Rating: 450/750V
-
Number of Cores and Cross-Section: e.g., 3 x 1.5 mm², 4 x 2.5 mm², 12 x 1.5 mm²
-
Conductor: Class 5 flexible copper
-
Insulation: Rubber, type EI 4
-
Outer Sheath: Rubber, type EM2, Black
-
Quantity: Total length in meters
