5kV High-Temperature ESP Cable – EPDM Insulated, Lead Sheath, Double Steel Armor with 2×3/8″ Tubes (2205)

5kV EPDM Insulated Lead Sheath Double Galvanized Steel Armor ESP Cable (Flat) with 2×3/8" Capillary Tubes (2205)

 Product Overview

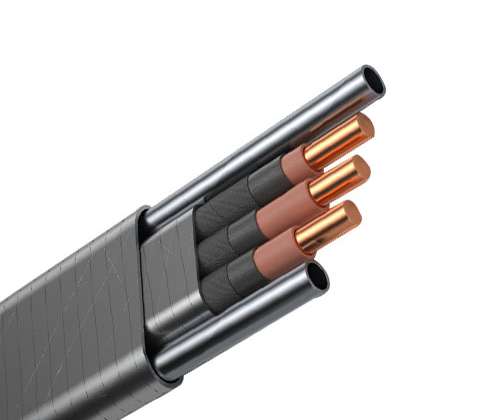

This product is a 5kV ESP (Electric Submersible Pump) Flat Cable designed for extreme downhole conditions. It features EPDM insulation, a continuous lead sheath, and double-layer galvanized steel armor for maximum protection and durability. Integral to its design are two 3/8" capillary tubes (2205 stainless steel) for chemical injection or monitoring. The cable is engineered to provide reliable power to submersible pumps in oil and gas wells, with a conductor rated for continuous operation at temperatures up to 232°C (450°F).

Part Number: 104394161

Key Features & Benefits

• High-Temperature Rating: Conductor rated for continuous operation at up to 232°C (450°F), suitable for deep well applications.

• Robust Construction: EPDM insulation offers excellent thermal stability and electrical integrity. The continuous lead sheath provides a perfect moisture and gas barrier.

• Superior Mechanical Protection: Double-layer galvanized steel tape armor ensures outstanding crush and abrasion resistance in harsh downhole environments.

• Integrated Capillary Tubes: Includes two 3/8" tubes (2205 duplex stainless steel) for chemical injection (e.g., scale or corrosion inhibitors) or pressure monitoring.

• Industry Compliance: Manufactured in accordance with IEEE 1017.2-2021 standards for ESP cables.

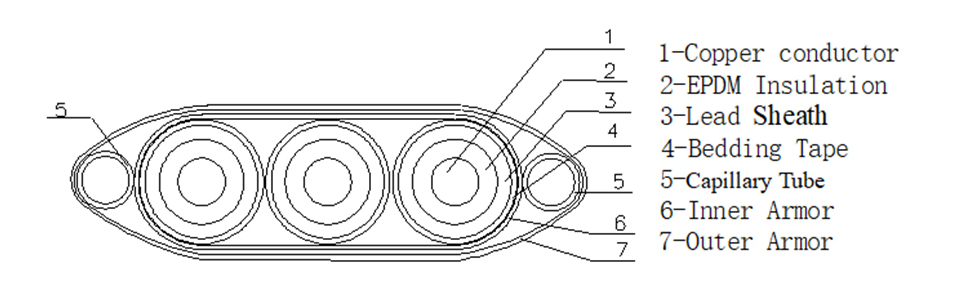

Construction

The cable is built with the following layers from the inside out:

1. Copper Conductor

2. EPDM Insulation

3. Lead Sheath

4. Bedding Tape

5. Capillary Tube (2x)

6. Inner Galvanized Steel Armor

7. Outer Galvanized Steel Armor

Technical Specifications & Parameters

Application

This cable is primarily used to provide power to Electric Submersible Pumps (ESP) in oil and gas production wells, where high temperature, high pressure, and corrosive environments are prevalent.
