TUV Certified Solar Panel Cable | PV1-F, 1.8kV DC, UV & Weather Resistant for Photovoltaic Systems
Product Overview

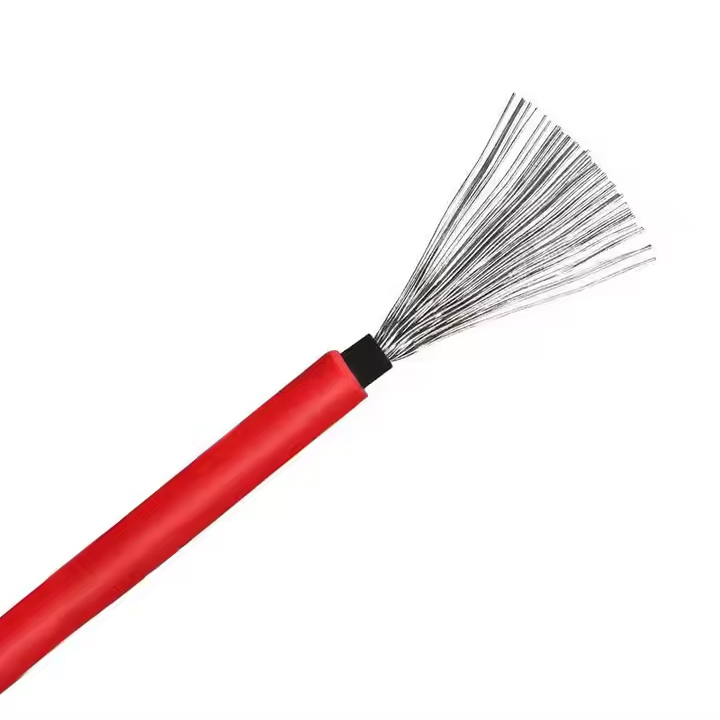

This TUV 2 PfG 1169 certified PV1-F solar cable is engineered for maximum durability and safety in photovoltaic (PV) systems. Designed to withstand extreme weather conditions, high temperatures, and mechanical stress, it is the optimal choice for interconnecting solar panels and components both indoors and outdoors. Its halogen-free, flame-retardant, and low-smoke construction ensures safety, while a certified 25-year service life guarantees long-term reliability.
Key Features & Benefits
-
TUV Certified Quality: Fully compliant with the stringent 2 PfG 1169/08.2007 standard, ensuring performance and safety for photovoltaic applications.
-
Long-Term Durability: Designed for a 25-year service life with excellent resistance to UV radiation, ozone, weathering, acids, alkalis, oils, and ammonia.
-
Wide Temperature Range: Operational from -40°C to +90°C ambient, with a conductor temperature rating up to 120°C.
-
Enhanced Safety: Halogen-free (IEC 60754), flame retardant (IEC 60332-1), and low smoke emission (IEC 61034) properties minimize fire hazards and toxic fumes.
-
Robust Construction: Features electron beam cross-linked insulation and sheath for superior mechanical strength, abrasion resistance, and thermal endurance.
Standards & Certifications
-
Main Standard: 2 PfG 1169/08.2007 (PV1-F)
-
Certification: TÜV Rheinland
-
Environmental Compliance: RoHS
-
Conductor: DIN VDE 0295, IEC 60228 Class 5
Full Technical Specifications
Electrical Properties
-
Rated Voltage (U0/U): 0.6/1 kV AC; 0.9/1.5 kV DC
-
Max. Permitted DC Voltage (System): 1.8 kV DC (conductor/conductor, non-earthed, no load)
-
Insulation Resistance: Min. 1000 MΩ·km
-
Spark Test Voltage: 6000 V AC (8400 V DC)
-
Voltage Withstand Test: 6500 V AC for 5 minutes
Thermal & Mechanical Properties
-
Ambient Temperature Range: -40°C to +90°C
-
Max. Conductor Temperature: 120°C (20,000h per IEC 60216-1)
-
Short-Circuit Temperature: 200°C (max. 5 sec)
-
Min. Bending Radius: 4 x OD (Fixed), 5 x OD (Flexing)
-
Thermal Endurance & Pressure Test: Compliant with EN 60216-2 & EN 60811-3-1
-
Damp-Heat Resistance: Compliant with EN 60068-2-78 (85% humidity)
Fire Safety Performance
-
Flame Retardant: EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2
-
Low Smoke Emission: IEC 61034, EN 50268
-
Halogen Free: EN 50267-2-1, IEC 60754-1
-
Low Corrosivity of Gases: EN 50267-2-2, IEC 60754-2

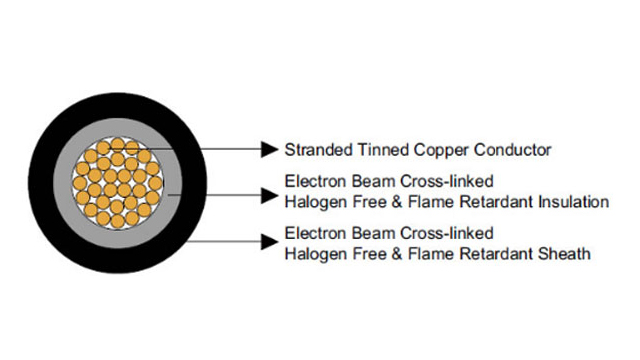

Construction
-
Conductor: Stranded, tinned copper per DIN VDE 0295 / IEC 60228 Class 5.
-
Insulation: Electron beam cross-linked, halogen-free, flame-retardant compound.
-
Sheath/Jacket: Electron beam cross-linked, halogen-free, flame-retardant compound. Color: Black.
Technical Parameters & Dimensions
| No. of Cores x mm² | Stranding No./mm | Nominal Conductor Diameter (mm) | Nominal Insulation Thickness (mm) | Nominal Sheath Thickness (mm) | Nominal Overall Diameter (mm) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|
| 1 x 1.5 | 30/0.25 | 1.58 | 1.14 | 0.82 | 5.4 | 52 |
| 1 x 2.5 | 50/0.25 | 2.04 | 1.14 | 0.82 | 5.8 | 67 |
| 1 x 4.0 | 56/0.30 | 2.59 | 1.14 | 0.82 | 6.4 | 87 |
| 1 x 6.0 | 84/0.30 | 3.17 | 1.14 | 0.82 | 7.0 | 113 |
| 1 x 10 | 78/0.40 | 4.07 | 1.52 | 0.82 | 8.6 | 178 |
| 1 x 16 | 128/0.40 | 5.22 | 1.52 | 0.82 | 9.8 | 254 |
| 1 x 25 | 199/0.40 | 6.51 | 1.52 | 0.82 | 11.1 | 363 |
| 1 x 35 | 279/0.40 | 7.71 | 1.52 | 0.82 | 12.3 | 473 |
Applications
Specifically designed for connecting photovoltaic system components:
-
Module interconnections (string cables).
-
Connections between PV arrays, combiner boxes, and inverters.
-
Use inside and outside buildings in systems with high mechanical demands and exposure to extreme weather conditions.
