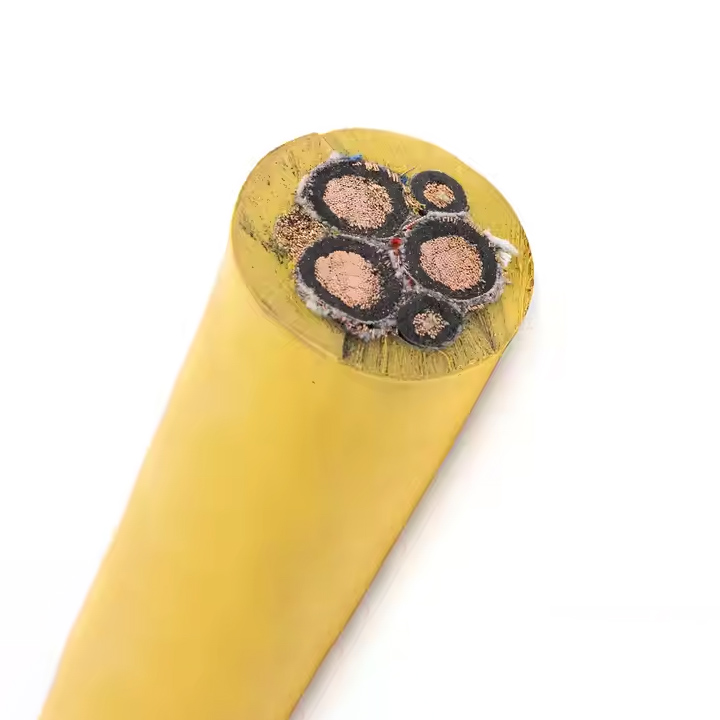

NSSHÖU 0.6/1 kV Heavy Duty Cable – Individual Core Screen, Tough Rubber Sheathed

Machinery & Equipment Mining Cables
Description

Product Overview

The NSSHÖU 0.6/1 kV heavy-duty flexible cable is specifically engineered for the most demanding industrial environments, including mines, quarries, and heavy industrial facilities. Featuring individual copper screens for each power core, this cable provides enhanced protection against electrical interference and improved safety for critical applications. Its tough rubber construction delivers exceptional mechanical strength while maintaining flexibility even at low temperatures.

Application

  • For use in mines, quarries and industrial areas, indoors and outdoors.

  • For higher mechanical stresses as flexible cable and as trailing cable for mobile current consumers.

  • Other industrial applications where individual copper screen power cores are needed.

Characteristics

  • Superior Mechanical Protection: High resistance to ripping, notching, and abrasion.

  • Chemical Resistance: Resistant to oils, greases, and chemicals.

  • Weather Resistance: UV, sunlight, and ozone resistant.

  • Flame Performance: Flame resistant for enhanced safety.

  • Low Temperature Flexibility: Good flexibility even at low ambient temperatures.

  • Temperature Range: -25°C to +90°C (for fixed installation, lowest temperature is -40°C).

  • Easy Identification: Ink jet or embossing printed for clear identification.

Specifications

Parameter Details
Voltage Rating 0.6/1 kV
Low Voltage Yes
Cold Resistance -25°C (dynamic)
UV Resistance Yes
Working Temperature 90°C
Oil Resistance Yes
Flame Retardant Yes

Construction

The cable features a sophisticated construction with individual core screens for optimal electrical performance and mechanical protection:

  1. Conductor: Annealed flexible stranded tin coated or bare copper, Class 5 to IEC 60228 / HD 383.

  2. Separator: A suitable tape separator between the conductor and insulation.

  3. Insulation: Ethylene-propylene rubber (EPR) type 3GI3 in accordance with DIN VDE 0207 part 21.

  4. Individual Core Screen: (Each power core is individually screened, though not explicitly detailed in the construction list, this is a key product feature as stated in the title and application).

  5. Circuit Identification: Brown, black, grey cores.

  6. Internal Jacket: A synthetic thermosetting compound type GM1b in accordance with DIN VDE 0207 part 21.

  7. Outer Jacket: A synthetic thermosetting compound type 5GM3 in accordance with DIN VDE 0207 part 21.

  8. Colour of Outer Jacket: Yellow (standard).
