Product Overview
The NSHTÖU 0.6/1kV rubber insulated flexible cable is engineered to withstand the highest mechanical stresses in demanding industrial applications. Specifically designed for scenarios involving frequent winding and unwinding combined with simultaneous tensile and torsional stress, this cable delivers exceptional durability and reliability. It is the preferred choice for building machinery, conveyors, lifts, and cranes, and is suitable for outdoor installation in dry, damp, and wet locations.
Application
-
Cables are used for high mechanical stress, especially for applications with frequent winding and unwinding with simultaneous tensile and torsion stress.
-
Ideal for building machinery, conveyors, lifts, and cranes.
-
Suitable for outdoor installation in dry, damp, and wet places.
-
Other industrial applications requiring high-flex, high-strength cables.
Standards
-
DIN VDE 0250 part 814 – German standard for insulated power cables
Characteristics
-
Superior Mechanical Protection: Tear, abrasion, and impact resistant jacket.
-
Environmental Resistance: Water resistant and flame retardant.
-
Wide Temperature Range:
-
Mobile installation: -25°C to +60°C
-
Fixed installation: -40°C to +60°C
-
-
Weather & Chemical Resistance: UV, sunlight, ozone, and oil resistant.
-
Easy Identification: Ink jet printed for clear marking.
Specifications
| Parameter | Details |
|---|---|
| Voltage Rating | 0.6/1 kV |
| Low Voltage | Yes |
| UV Resistance | Yes |
| Water Resistance | Yes |
| Oil Resistance | Yes |
| Flame Retardant | Yes |
| Working Temperature (Mobile) | 60°C |
| Working Temperature (Fixed) | 60°C |
| Cold Resistance (Fixed) | -40°C |

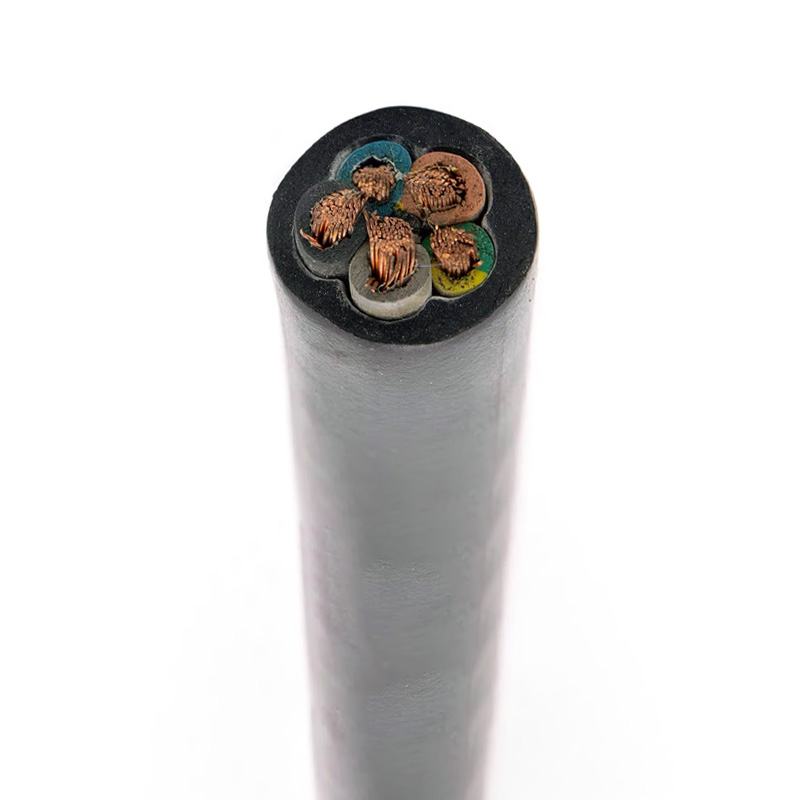

Construction
The cable features a robust multi-layer construction engineered for maximum durability in high-stress applications:
| Component | Description |
|---|---|
| Conductor | Annealed flexible stranded tin coated copper, Class 5 to IEC 60228 / HD 383. |
| Separator | If needed, a suitable tape separator between conductor and insulation. |
| Insulation | Ethylene-propylene rubber (EPR) type 3GI3 in accordance with DIN VDE 0207 part 20. |
| Circuit Identification | Colour coding of power conductors complies with HD 308 / DIN VDE 0293-308: • 3-core: Green-yellow, blue, brown • 4-core: Green-yellow, brown, black, grey • 5-core: Green-yellow, blue, brown, black, grey • Above 5-core: Green-yellow plus black cores with white numbering |
| Internal Jacket | A synthetic thermosetting compound. |
| Reinforcing Braid | An open polyamide (nylon) braid for enhanced tensile and torsion strength. |
| Outer Jacket | A synthetic thermosetting compound type 5GM3 in accordance with DIN VDE 0207 part 21. |
| Colour of Outer Jacket | Black (other colours available upon request). |
| Flame Propagation Test | IEC 60332-1-2:2004, EN 60332-1-2:2004 compliant. |
Key Features
-
High Mechanical Resilience: Engineered for applications with frequent winding, unwinding, tensile, and torsional stresses.
-
Reinforced Construction: Open polyamide braid between inner and outer jacket provides critical strength for demanding movements.
-
EPR Insulation: High-grade ethylene-propylene rubber ensures excellent electrical properties and thermal stability.
-
Robust Outer Jacket: Type 5GM3 thermosetting compound delivers outstanding protection against abrasion, oil, weather, and mechanical impact.
-
DIN VDE Compliance: Manufactured to rigorous German industrial standards for guaranteed quality and reliability.
-
Versatile Application: Suitable for both fixed installation (down to -40°C) and dynamic applications requiring flexibility.
