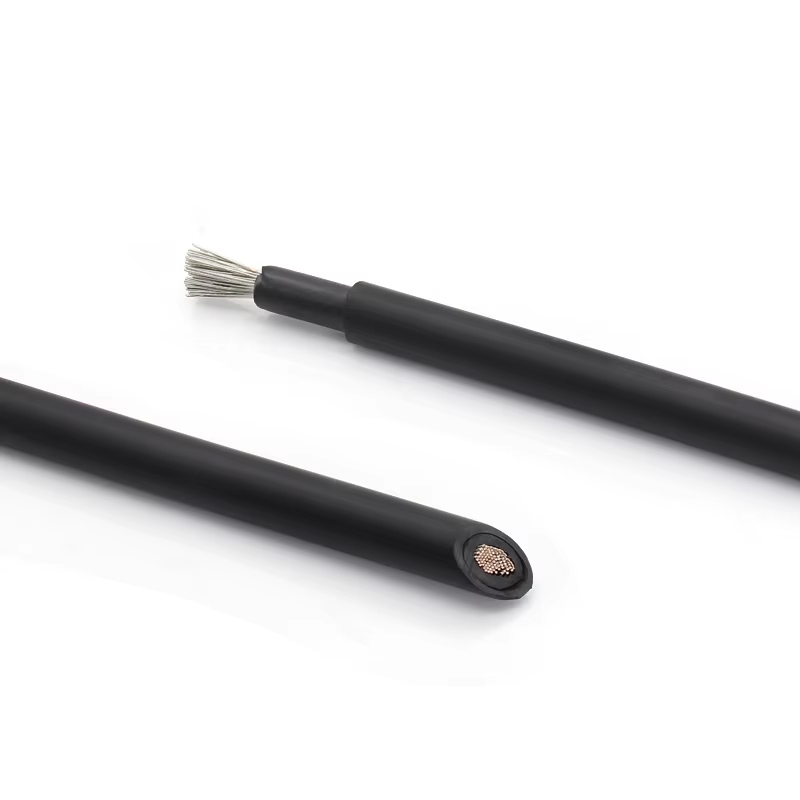

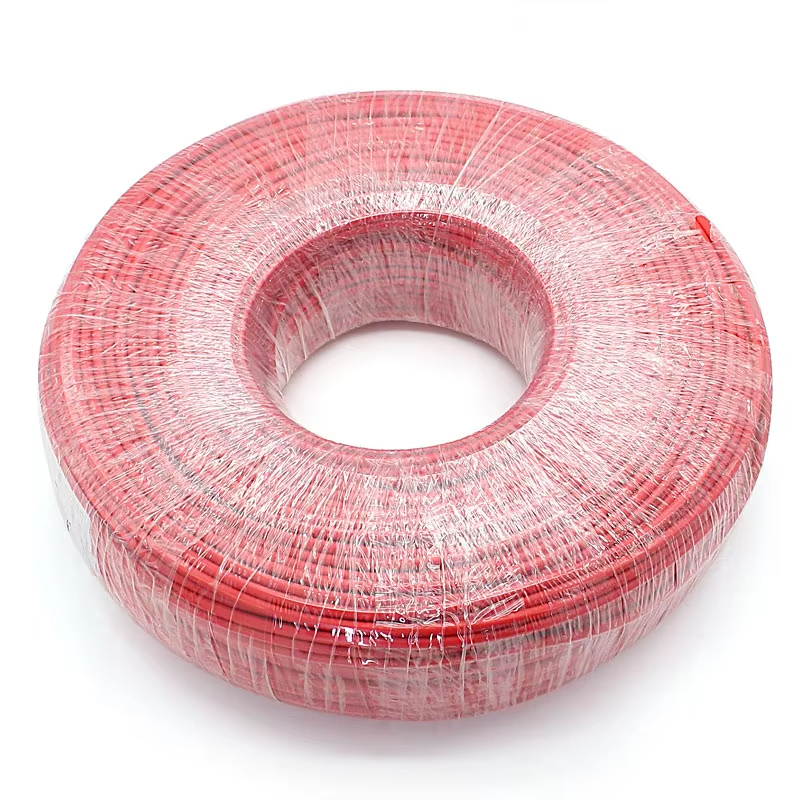

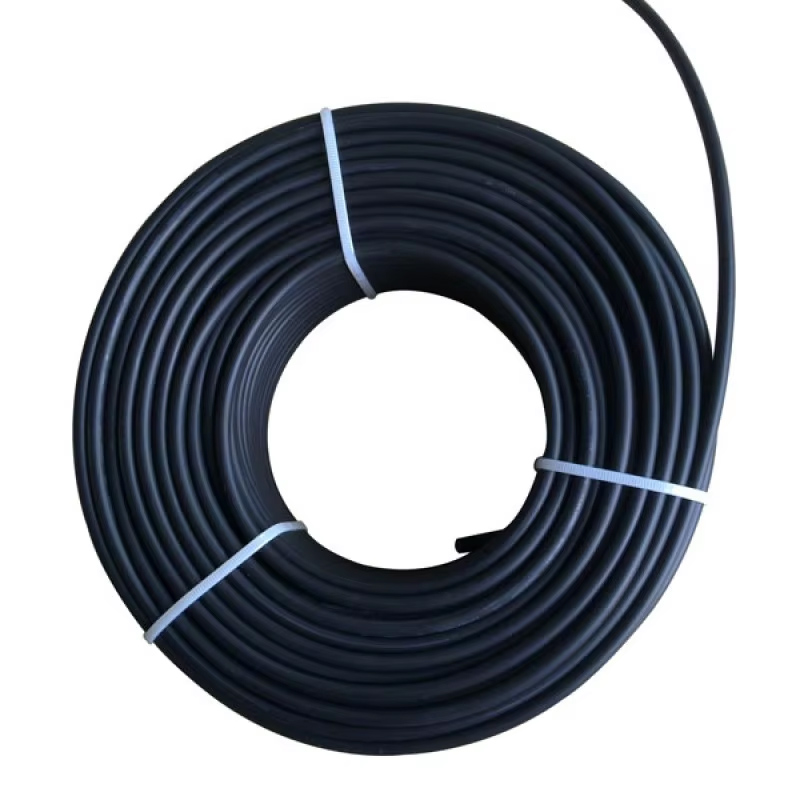

The 600/2000V UL-4703 PV Wire & Cable is a solar photovoltaic (PV) cable designed for use in photovoltaic power systems.
Specifications:
- Voltage Rating:
- 600V (UL 4703 Standard)
- 2000V (Higher Voltage for Large PV Systems)
- Conductor Size: 12 AWG (American Wire Gauge)
- Conductor Material: Copper (typically stranded for flexibility)
- Insulation Material: Cross-linked Polyethylene (XLPE) or similar (UV-resistant, flame-retardant)
- Jacket Material: UV-resistant, sunlight-resistant, and weatherproof (often labeled as "PV" or "Photovoltaic" wire)
- Temperature Rating: -40°C to 90°C (some versions up to 120°C)
- Standards Compliance:
- UL 4703 (Photovoltaic Wire Standard)
- RoHS Compliant (Restriction of Hazardous Substances)
- May also meet TUV, CSA, or NEC (National Electrical Code) requirements
Applications:
- Solar panel interconnections (between modules, combiners, and inverters)

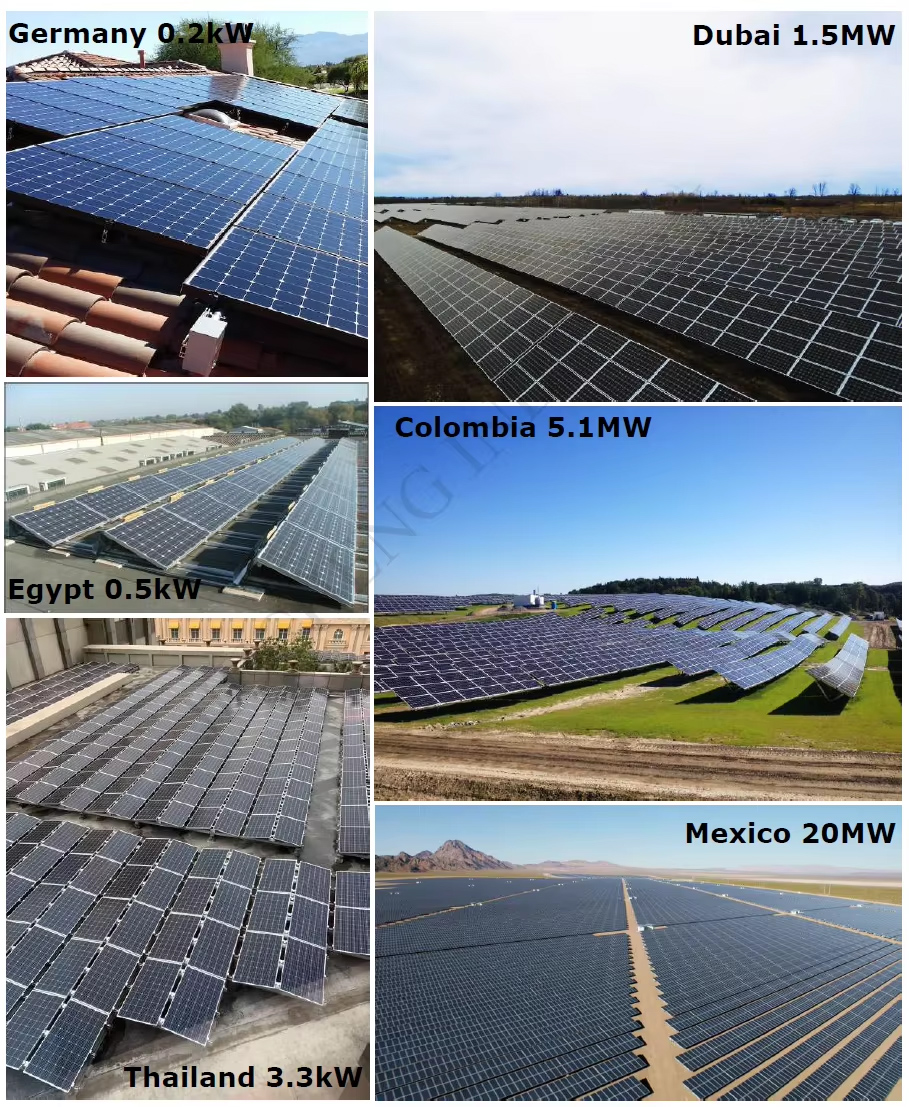

- PV system wiring (both rooftop and ground-mounted installations)
- DC side wiring in solar farms (due to high voltage rating)
Key Features:
✔ UV & Weather Resistant – Designed for outdoor use
✔ Flame Retardant – Meets safety standards for electrical fires
✔ Flexible & Durable – Stranded copper for easy installation
✔ High Voltage Rated – Suitable for large-scale PV systems (up to 2000V)
Equivalent Standards:
- EN 50618 (EU PV Cable Standard)
- TUV 2 PfG 1169 (European PV Cable Standard)

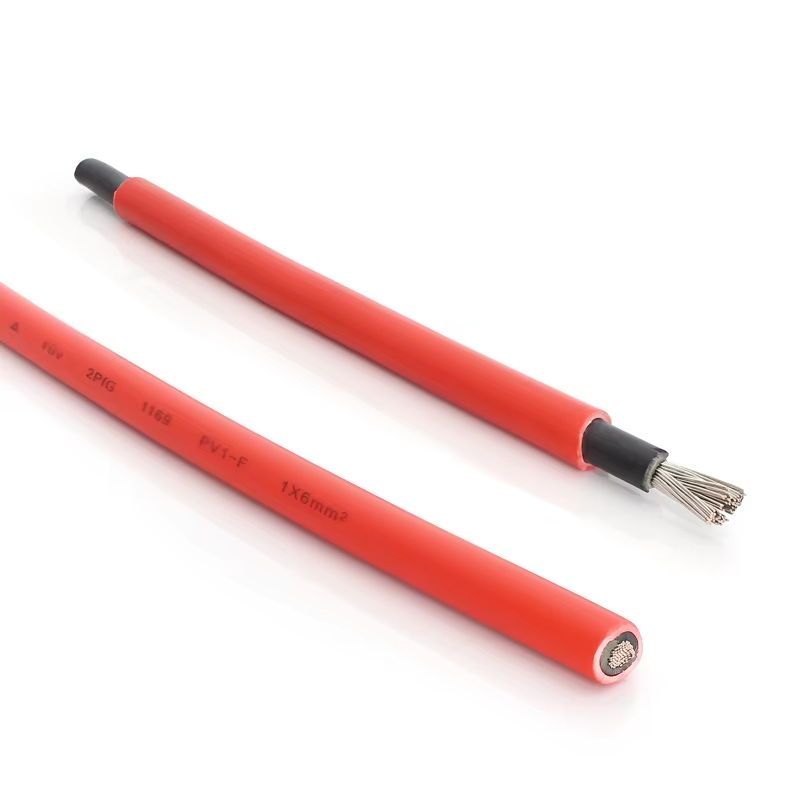

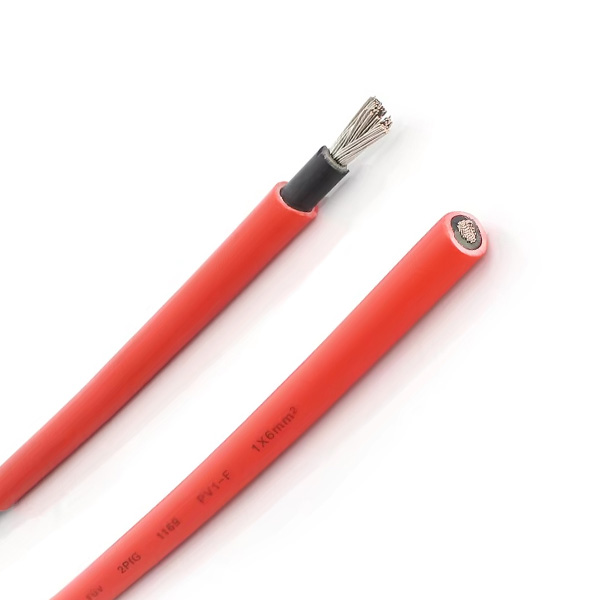

Specifications Model: PV1-F / H1Z2Z2-K (EU PV Cable Standard) Rated Voltage: AC: 1kV DC: 1.5kV Conductor: Material: Tinned Copper Structure: Stranded (Class 5/6 Flexible) Cross-Section: 4mm², 6mm², 10mm² (Customizable) Insulation: XLPE (Cross-Linked Polyethylene) or LSZH (Low Smoke Zero Halogen) Sheath: Material: UV-Resistant XLPO (Cross-Linked Polyolefin) Color: Standard Black/Red (Custom Colors Available) Electrical Performance Operating Temperature: 90°C (Continuous), 120°C (Short-Circuit) Bending Radius: 5× Cable OD (Fixed), 6× Cable OD (Flexible) Voltage...
