Two Cores PV1-F Solar Cable | TUV Certified UV Resistant Photovoltaic Cable

Product Overview

Two Cores PV1-F Solar Cable is specifically engineered for solar power generation systems and related component wiring. TUV certified with exceptional UV resistance and anti-aging properties, this halogen-free flame retardant cable ensures maximum safety and long-term reliability for outdoor photovoltaic applications.

Applications

  • Solar panel power generation systems

  • Photovoltaic component wiring and connections

  • Outdoor solar installations

  • DC power circuits in solar arrays

  • Renewable energy systems

  • Solar farm interconnections

Executive Standard

  • TUV Certification: 2PFG1169/08.2007

  • Rated Voltage: AC U0/U = 0.6/1kV | DC 1.8kV

  • Lifespan: >25 years operational lifetime

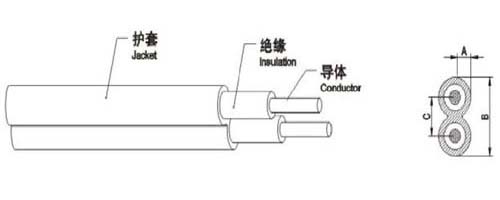

Construction Characteristics

Component Specification
Conductor Tinned copper wire, class 5 (IEC 60228)
Insulation No Halogen PO insulation
Sheath No Halogen PO sheath
Rated Voltage AC 0.6/1kV, DC 1.8kV
Temperature Range -40°C to +90°C (dry/humidity)
Max Conductor Temperature 120°C
Short Circuit Temperature 200°C
Standard EN 2PFG 1169

Technical Specifications

Electrical Ratings

  • AC Voltage: 0.6/1kV

  • DC Voltage: 1.8kV (core to core, non-grounded systems)

  • DC Resistance: Varies by cross-section (see table below)

  • Short Circuit Withstand: 280°C maximum

Environmental Performance

  • UV Resistance: Excellent sunlight resistance

  • Temperature Range: -40°C to +90°C ambient

  • Flame Retardant: Vertical flame test compliant

  • Chemical Resistance: Water, oil, and chemical resistant

Structure Parameters

Type Cross Section (mm²) Conductor Structure Diameter (mm) Insulation Thickness (mm) Sheath Thickness (mm) Cable Diameter (mm) DC Resistance at 20°C (Ω/km)
PV1-F 1.5 48/0.2 1.6 1.0 0.8 5.2 12.2
PV1-F 2.5 77/0.2 2.0 1.0 0.8 5.6 7.56
PV1-F 4 56/0.3 2.6 1.0 0.9 6.4 4.7
PV1-F 6 84/0.3 3.2 1.0 0.9 7.0 3.11
PV1-F 10 77/0.41 4.4 1.0 0.9 8.2 1.84
PV1-F 16 119/0.41 5.5 1.0 1.1 9.7 1.16
PV1-F 25 189/0.41 6.5 1.2 1.2 11.3 0.734
PV1-F 35 244/0.41 7.5 1.2 1.2 12.3 0.529

Current Capacity Reference Values

(Ambient Temperature: 60°C, Max. Conductor Working Temperature: 120°C)

Cross Section (mm²) Single Core in Air (A) Single Core on Equipment Surface (A) Next to Equipment (A)
1.5 30 29 24
2.5 41 39 33
4 55 52 44
6 70 67 57
10 98 93 79
16 132 125 107
25 176 167 142
35 218 207 176

Temperature Conversion Factors

*(per IEC 60364-5-52)*

Ambient Temperature (°C) Conversion Factor Ambient Temperature (°C) Conversion Factor Ambient Temperature (°C) Conversion Factor
≤60 1.00 ≤80 0.82 ≤100 0.58
≤70 0.91 ≤90 0.71 ≤110 0.41

Key Features

  • 25+ Year Lifespan: Certified long-term durability

  • Halogen Free: Enhanced safety with minimal toxic emissions

  • UV Resistant: Specifically formulated for outdoor exposure

  • High Temperature Tolerance: -40°C to 120°C operational range

  • TUV Certified: Meets rigorous German quality standards

  • Flame Retardant: Superior fire safety performance
