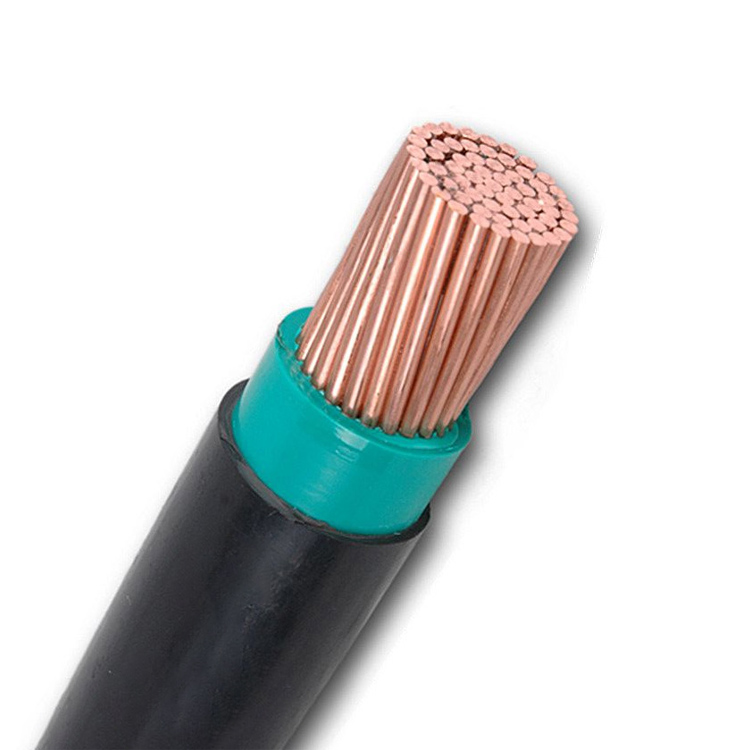

BS7889 Standard 600/1000V XLPE/PVC Cable
Product Overview
The BS7889 Standard 600/1000V XLPE/PVC Cable is designed for distribution and signal power in static outdoor applications, with protection against direct UV irradiation. It is suitable for installation in ground, water, within facilities, in cable canals, and in concrete, where heavier mechanical loads and especially tensile strains are not expected. Typical uses include electric power plants, transformer stations, industrial plants, metropolitan networks, and connection of signalling devices in industry and traffic.
Applications
-
Distribution and signal power cable for static outdoor application (with protection against direct UV irradiation)
-
Installation in ground, water, within facilities, cable canals, and concrete
-
Electric power plants, transformer stations, industrial plants
-
Metropolitan networks and other electric plants
-
Connection of signalling devices in industry, traffic, and similar
Features & Benefits
-
UV Resistance: Suitable for outdoor installation with protection against direct UV irradiation.
-
Working Temperature: 90°C maximum conductor temperature.
-
Voltage Rating: 600/1000V.
-
Test Voltage: 3500V.
-
Conductor: Bare copper, Class 1/2 (solid).
-
Insulation: XLPE compound for excellent thermal and electrical performance.
-
Sheath: PVC compound, black, for durability.
-
Temperature Range: -20°C to +90°C.
-
Bending Radius: 15D for single core, 12D for multicore.
-
Compliance: BS 7889 and IEC 60502-1.
Construction
-
Conductor: Bare Copper Conductor of Class 1/2 (Solid)
-
Insulation: XLPE Compound
-
Insulation Color: Red, Blue, Grey, Yellow/Green or as request
-
Sheath: PVC Compound
-
Sheath Color: Black
-
Temperature Range: -20°C to +90°C
-
Nominal Voltage: 600/1000V
-
Test Voltage: 3500 V
-
Minimal Bending Radius: 15D for Single Core, 12D for Multicore
Technical Data
| Nominal Cross Section (mm²) | Diameter of Conductor (Approx.) (mm) | Nominal Insulation Thickness (mm) | Nominal PVC Sheath Thickness (mm) | Overall Diameter (Approx.) (mm) | Weight of Cable (Approx.) (Kg/Km) |
|---|---|---|---|---|---|
| 1x4 | 2.6 | 1 | 1.4 | 7.5 | 95 |
| 1x6 | 3.1 | 1 | 1.4 | 8 | 120 |
| 1x10 | 4 | 1 | 1.4 | 9 | 165 |
| 1x16 | 5 | 1 | 1.4 | 10 | 230 |
| 1x25 | 6.3 | 1.2 | 1.4 | 12 | 340 |
| 1x35 | 7.4 | 1.2 | 1.4 | 13 | 450 |
| 1x50 | 8.8 | 1.4 | 1.4 | 14.5 | 570 |
| 1x70 | 10.6 | 1.4 | 1.4 | 16 | 800 |
| 1x95 | 12.4 | 1.6 | 1.5 | 18.5 | 1070 |
| 1x120 | 14 | 1.6 | 1.5 | 20 | 1300 |
| 1x150 | 15.5 | 1.8 | 1.6 | 22 | 1600 |
| 1x185 | 17.4 | 2 | 1.7 | 24 | 1980 |
| 1x240 | 20.3 | 2.2 | 1.7 | 27 | 2560 |
| 1x300 | 22.7 | 2.4 | 1.8 | 30 | 3180 |
| 1x400 | 25.4 | 2.6 | 1.9 | 33 | 4060 |
| 1x500 | 28.8 | 2.8 | 2 | 37 | 5140 |
| 1x630 | 30.4 | 2.8 | 2.2 | 42 | 6600 |
Standards & Compliance
-
BS 7889
-
IEC 60502-1
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: BS7889 Standard 600/1000V XLPE/PVC Cable
-
Nominal Cross Section: e.g., 1x4 mm², 1x630 mm²
-
Conductor Class: Class 1 or Class 2
-
Insulation Color: Red, Blue, Grey, Yellow/Green, or as requested
-
Sheath Color: Black
-
Quantity: Total length in meters
