Product Overview
The CHJV/SA is a robust and reliable flame retardant marine communication cable designed for standard data and telecommunication circuits onboard vessels and in industrial settings. It features durable XLPE (Cross-Linked Polyethylene) insulation and a protective PVC (Polyvinyl Chloride) outer sheath, providing a cost-effective solution with proven performance. The cable meets stringent flame retardancy requirements for bunched installation (IEC 60332-3-22), making it a safe choice for grouped cable runs in compliance with IEC 60092 marine standards.
Key Features & Benefits
-
Certified Flame Retardancy: Rated for bunched cable installation (SA), successfully passing the IEC 60332-3-22 test to prevent flame propagation in grouped cable scenarios.
-
Durable & Protective Construction: XLPE insulation ensures excellent electrical properties, thermal stability (up to 90°C), and resistance to moisture. The PVC outer sheath provides reliable mechanical protection, oil resistance, and durability.
-
Marine & Industrial Grade: Designed for the environmental conditions found in marine vessels, offshore platforms, and various heavy industries.
-
Proven Reliability: Utilizes time-tested materials (XLPE & PVC) offering a strong balance of performance, longevity, and value.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors typically available on request).

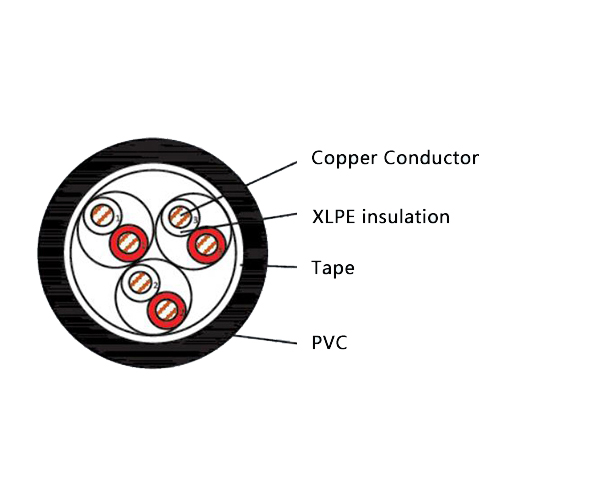

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Sheath | V | Polyvinyl Chloride (PVC) |
| Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested to meet the following key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched - Category A required for SA designation)
Applications
This cable is suitable for a wide range of fixed installations within:
-
Telecommunication, instrumentation, and control systems on marine vessels and offshore constructions.
-
General communication and data networks in industrial facilities such as power plants, chemical plants, metallurgy, and mining.
