German Standard Industrial Cable H05G-K / H07G-K

Product Overview

The H05G-K and H07G-K are German standard industrial cables recommended for the internal wiring of switchboards and distributor boards, as well as for nominal voltages up to 1000 V AC or 750 V DC. These cables are all allowed for laying in tubes, in and under plaster.

The cables feature fine bare copper strands, rubber compound type EI3 (EVA) insulation to DIN VDE 0282 part 7, and are manufactured to <HAR> HD 22.7 S2, VDE-0282 Part-7, CEI 20-19/7, CEI 20-35 (EN60332-1). They comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC and are ROHS compliant.

Features & Benefits

  • High Temperature Range: Flexing: -25°C to +110°C; Static: -40°C to +110°C.

  • Flame Retardant: Complies with IEC 60332.1.

  • Rubber Insulation: Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7.

  • Flexible Conductors: Fine bare copper strands to VDE-0295 Class-5, IEC 60228 Class-5.

  • Voltage Ratings: 300/500V (H05G-K); 450/750V (H07G-K).

  • Test Voltage: 2000 volts (H05G-K); 2500 volts (H07G-K).

  • Insulation Resistance: 10 MΩ x km.

  • ROHS Compliant: Meets environmental and health requirements.

  • Standard Compliant: <HAR> HD 22.7 S2, VDE-0282 Part-7, CEI 20-19/7.

  • Core Colour Options: Cores to VDE-0293 colours.

Typical Applications

  • Internal wiring of switchboards and distributor boards

  • Nominal voltages up to 1000 V AC or 750 V DC

  • Laying in tubes

  • In and under plaster

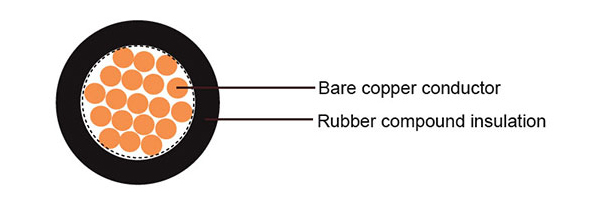

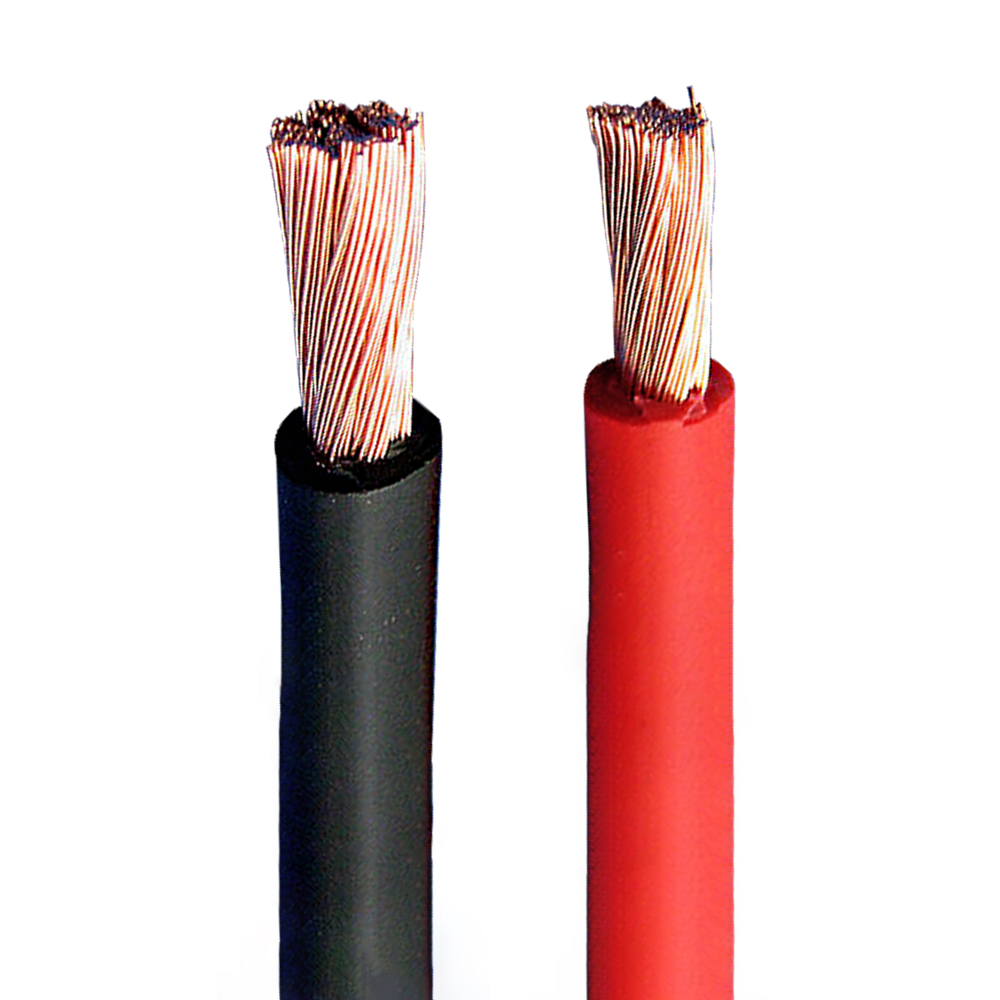

Construction

  • Conductor: Fine bare copper strands

  • Stranding: VDE-0295 Class-5, IEC 60228 Class-5

  • Insulation: Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7

  • Core Colours: Cores to VDE-0293 colours

Technical Specifications

Electrical & Thermal Characteristics

Parameter H05G-K H07G-K
Working Voltage 300/500V 450/750V
Test Voltage 2000 volts 2500 volts
Flexing Bending Radius 7 x Ø 7 x Ø
Static Bending Radius 7 x Ø 7 x Ø
Flexing Temperature -25°C to +110°C -25°C to +110°C
Static Temperature -40°C to +110°C -40°C to +110°C
Flame Retardant IEC 60332.1 IEC 60332.1
Insulation Resistance 10 MΩ x km 10 MΩ x km

Parameter Table – H05G-K

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
20 (16/32) 1 x 0.5 0.6 2.3 4.8 13
18 (24/32) 1 x 0.75 0.6 2.6 7.2 16
17 (32/32) 1 x 1 0.6 2.8 9.6 22

Parameter Table – H07G-K

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
16 (30/30) 1 x 1.5 0.8 3.4 14.4 24
14 (50/30) 1 x 2.5 0.9 4.1 24 42
12 (56/28) 1 x 4 1.0 5.1 38 61
10 (84/28) 1 x 6 1.0 5.5 58 78
8 (80/26) 1 x 10 1.2 6.8 96 130
6 (128/26) 1 x 16 1.2 8.4 154 212
4 (200/26) 1 x 25 1.4 9.9 240 323
2 (280/26) 1 x 35 1.4 11.4 336 422
1 (400/26) 1 x 50 1.6 13.2 480 527
2/0 (356/24) 1 x 70 1.6 15.4 672 726
3/0 (485/24) 1 x 95 1.8 17.2 912 937
4/0 (614/24) 1 x 120 1.8 19.7 1152 1192

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • <HAR> HD 22.7 S2

  • VDE-0282 Part-7

  • CEI 20-19/7

  • CEI 20-35 (EN60332-1)

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS Compliant

  • Flame Retardant: IEC 60332.1

  • Conductor Stranding: VDE-0295 Class-5, IEC 60228 Class-5

  • Insulation: Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7

  • Core Colours: VDE-0293 colours

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: H05G-K or H07G-K

  • Voltage Rating: 300/500V (H05G-K) or 450/750V (H07G-K)

  • Conductor Size: e.g., 1 x 0.5 mm², 1 x 1.5 mm², 1 x 50 mm², 1 x 120 mm²

  • Conductor: Fine bare copper strands, Class 5

  • Insulation: Rubber compound type EI3 (EVA)

  • Quantity: Total length in meters
