Product Overview
The CHJPFP80/SC is a high-performance, screened and armored marine communication cable designed for the most demanding applications where maximum mechanical protection and electromagnetic interference (EMI) shielding are required. It combines XLPE (Cross-Linked Polyethylene) insulation with a Low Smoke Halogen Free (LSHF) flame retardant compound and features both a screening layer and a braided armor. This robust construction ensures reliable data transmission in harsh marine, offshore, and industrial environments, in full compliance with IEC 60092 standards.
Key Features & Benefits
-
Dual-Protection Design: Features both a screen for EMI protection and a copper wire braid armor for superior mechanical strength, safeguarding against physical damage and signal interference.
-
Enhanced Fire Safety: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties reduce toxic fumes and smoke opacity. Certified for high Flame Retardancy (IEC 60332-1 & -3-22).
-
Robust & Durable: XLPE insulation provides excellent thermal resistance (up to 90°C), high dielectric strength, and resistance to moisture, chemicals, and abrasion.
-
For Severe Duty: The armored construction makes it ideal for routes with high risk of mechanical impact, tension, or rodent damage, both onboard vessels and in industrial plants.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
Construction Details

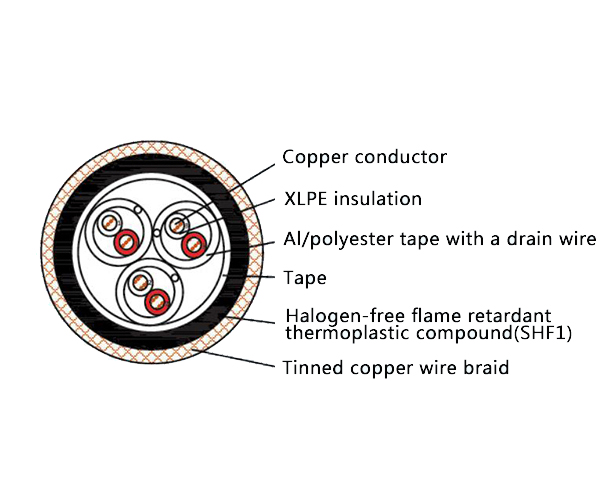

| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested to meet the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This screened and armored cable is designed for critical installations in:
-
Telecommunication, instrumentation, and data processing systems on ships and offshore platforms (e.g., oil & gas) requiring enhanced mechanical and EMI protection.
-
Industrial control and communication networks in power plants, chemical industries, metallurgy, and mining where cables are exposed to rough handling or demanding environments.
