Product Overview
The CHJV92/SA is a robust and reliable Flame Retardant Marine Communication Cable featuring Cross-Linked Polyethylene (XLPE) insulation. Designed for fixed installations onboard marine vessels and offshore structures, it provides secure signal transmission for critical systems. The cable combines the durability of XLPE with proven flame-retardant properties, meeting key international safety standards including IEC 60332 and IEC 60092.
Key Features & Benefits
-
Durable XLPE Insulation: Offers excellent electrical properties, high temperature resistance (up to 90°C), and superior mechanical strength compared to standard PE, ensuring long-term reliability.
-
Proven Flame Safety: Complies with IEC 60332-1 (single wire flame test) and IEC 60332-3-22 (bunched cables flame test) for flame retardancy, helping to inhibit the spread of fire along cables.
-
Enhanced Protection: The Galvanized Steel Wire Braid armor provides effective mechanical protection against impact and crushing, while the overall PVC sheathing offers good chemical and environmental resistance.
-
Marine & Industrial Application: Built to withstand the demanding conditions of ships, oil platforms, and harsh industrial environments.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Standard Outer Sheath Color: Black (other colors available on request).

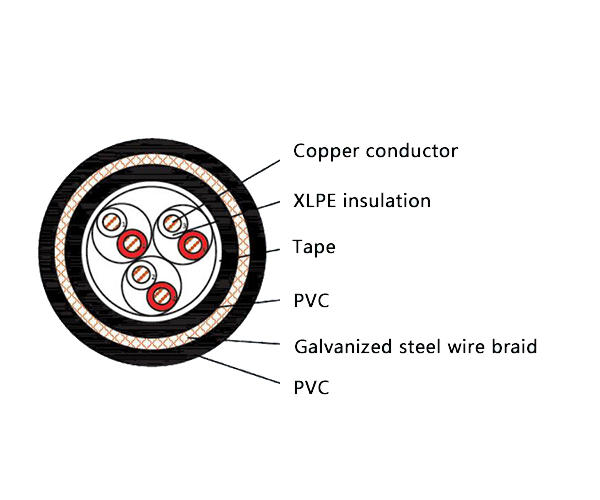

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant (IEC 60332-3-22) |
Standards & Compliance
This cable is designed and tested in accordance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free & Low Smoke: Note: This standard PVC-sheathed version is designed for flame retardancy. For Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) requirements, please refer to our LSHF product range (e.g., CHEPF80/SC).
Typical Applications
This cable is suitable for use in:
-
Telecommunication, instrumentation, computer, and data processing systems on ships and offshore platforms.
-
Control and communication networks in demanding industrial plants such as power stations, chemical plants, metallurgy facilities, and mining operations.
