Product Overview
The CKEPFP86/SC is a premium screened marine control cable designed for reliable signal and power transmission in critical control systems. It combines EPR insulation, individual pair electromagnetic screening, flexible tinned copper braid armor, and a Low Smoke Halogen Free (LSHF) flame-retardant outer sheath. This construction ensures excellent EMI protection, mechanical resilience, and enhanced safety for use on ships, offshore platforms, and in demanding industrial plants, fully complying with IEC 60092 standards.
Key Features & Benefits
-
Enhanced Safety in Confined Spaces: Low Smoke Halogen Free (LSHF) construction minimizes toxic fumes and reduces visibility obstruction in case of fire, complying with IEC 61034 and IEC 60754.
-
Superior EMI/RFI Shielding & Flexibility: The combination of an inner screen (foil or braid) and an outer tinned copper braid armor provides excellent protection against electromagnetic and radio frequency interference, crucial for sensitive control signals. The copper braid offers superior flexibility compared to steel armor.
-
Robust Environmental Protection: The double-layer design with an inner sheath (PF) and a robust LSHF outer sheath (6) provides protection against moisture, oils, and mechanical abrasion.
-
Reliable Performance: EPR insulation ensures stable electrical properties and long-term durability in a 90°C operating environment.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

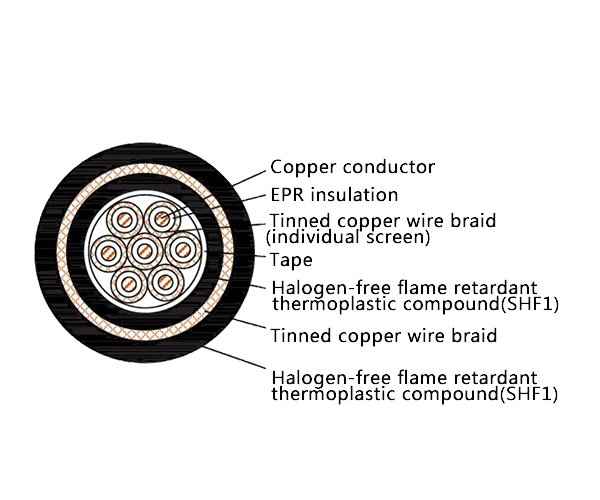

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for:
-
Control, automation, instrumentation, and low-power circuits on marine vessels and offshore installations (oil & gas platforms).
-
Sensitive control systems in industries with high EMI, such as power plants, chemical processing, mining, and industrial automation where flexible, shielded cable is required.
