Product Overview
The CKEPFP90/SC is a robust screened and armored marine control cable designed for critical power, lighting, and control systems. It features EPR insulation, electromagnetic shielding, galvanized steel wire armor, and a Low Smoke Halogen Free (LSHF) Flame Retardant construction. Notably supplied without an outer sheath (Code 0), this configuration offers flexibility for final installation adaptations or use in protected environments, while maintaining full compliance with IEC 60092 standards for marine and offshore applications.
Key Features & Benefits
-
High Safety & Environmental Compliance: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties enhance safety during fire incidents. Certified Flame Retardant (IEC 60332-1 & -3-22) to inhibit fire spread.
-
Optimal EMI Protection & Signal Integrity: The integrated screen (tinned copper braid or Alu/Polyester tape) provides effective shielding against electromagnetic interference for reliable control signal transmission.
-
Superior Mechanical Protection: The galvanized steel wire braid armor (Code 9) offers excellent resistance against impact, crushing, and mechanical stress.
-
Installation & Customization Flexibility: Supplied without an outer sheath, this cable is ideal for applications where the armored core needs to be integrated into specialized conduit, systems, or where a custom external jacket will be applied onsite.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 cores.

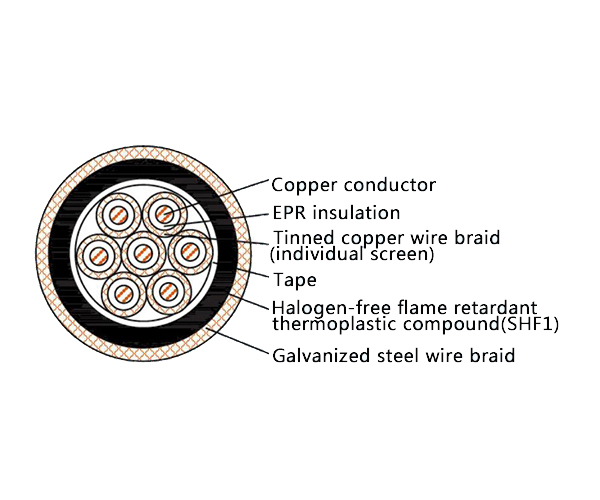

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with key international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke: IEC 61034
Applications
This cable is engineered for use in:
-
Power, lighting, and control circuits on ships, oil & gas platforms, and offshore structures.
-
Control and instrumentation systems in demanding industrial environments such as power generation plants, chemical processing facilities, metallurgy, and mining.
