Product Overview
The CKEPFP80/SC is a specialized screened and armored marine control cable designed for power, lighting, and control circuits where electromagnetic interference (EMI) protection and flexibility are paramount. It features EPR insulation, an overall screen, and a tinned copper wire braid armor (Code 8). Notably supplied without an outer sheath (Code 0), this configuration provides a versatile and high-performance core for integration into panels, conduits, or systems requiring a custom final jacket. Its Low Smoke Halogen Free (LSHF) Flame Retardant construction ensures safety in demanding marine and industrial applications, complying with IEC 60092 standards.
Key Features & Benefits
-
Effective EMI/RFI Shielding: The combination of an individual pair/overall screen (Code P) and copper braid armor (Code 8) offers superior protection against electromagnetic and radio frequency interference, ensuring signal integrity for sensitive control equipment.
-
High Flexibility & Durability: The tinned copper wire braid armor provides excellent mechanical protection while maintaining far greater flexibility than steel armor, making it ideal for applications with frequent movement or tight bends.
-
Installation & Integration Flexibility: Supplied without an outer sheath, this cable is perfect for OEMs, panel builders, or installations where the shielded and armored core must be routed through specialized trunking or have a custom protective jacket applied onsite.
-
Enhanced Safety Profile: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties improve safety in confined spaces. The construction meets stringent Flame Retardant (IEC 60332) requirements.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

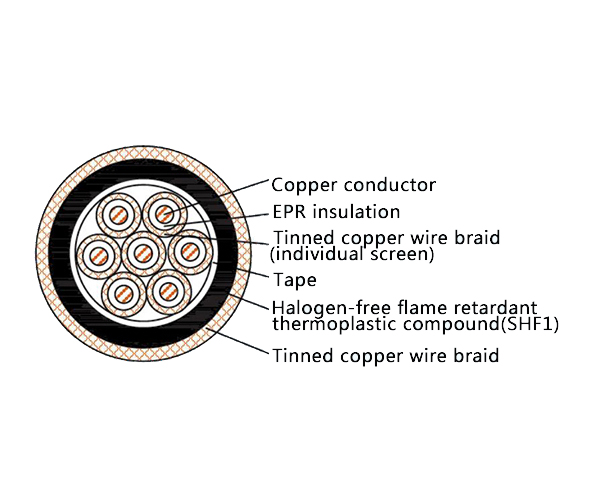

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with key international standards for marine and industrial use:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for use in:
-
Control, automation, and instrumentation systems on ships, oil & gas platforms, and offshore structures where EMI protection is critical.
-
Sensitive control wiring within industrial control panels, power generation facilities, chemical plants, and mining operations that require a flexible, shielded, and armored cable core for further integration.
