Product Overview
The 6241Y, 6242Y, and 6243Y are British Standard industrial cables designed for fixed installation in dry or damp premises on walls, boards, or trays, in channels, or embedded in plaster. They should be laid in conduit or trunking where mechanical protection is required.
The cables feature fine bare copper strands, PVC insulation type TI1 to BS 7655, and a PVC sheath type T6 to BS 7655. The core or cores are laid parallel with the uninsulated circuit protective conductor. For twin cores, the protective conductor is centrally placed between cores in the same plane. For 3 cores, the protective conductor is centrally placed between black and grey cores in the same plane.
Features & Benefits
-
British Standard Compliance: Manufactured to BS 6004.
-
Fixed Installation: Suitable for dry or damp premises on walls, boards, trays, channels, or embedded in plaster.
-
Fine Bare Copper Strands: Stranding to IEC 60228 CL-1 or 2.
-
PVC TI1 Insulation: PVC insulation type TI1 to BS 7655.
-
PVC T6 Sheath: PVC sheath type T6 to BS 7655.
-
Integrated Protective Conductor: Uninsulated circuit protective conductor laid parallel with cores.
-
Flame Retardant: Complies with IEC 60332.1.
-
Voltage Rating: 300/500V.
-
Test Voltage: 2000 volts.
-
Insulation Resistance: 10 MΩ x km.
-
Short Circuit Temperature: +160°C.
-
Temperature Range: Flexing: -15°C to +70°C.
Typical Applications
-
Fixed installation in dry or damp premises
-
Walls, boards, or trays
-
Channels or embedded in plaster
-
Conduit or trunking installations where mechanical protection is required

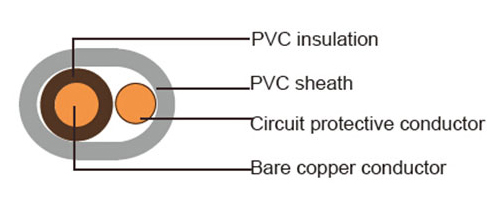

Construction
-
Conductor: Fine bare copper strands
-
Stranding: IEC 60228 CL-1 or 2
-
Insulation: PVC insulation type TI1 to BS 7655
-
Core Arrangement: The core or cores shall be laid parallel with the uninsulated circuit protective conductor
-
Protective Conductor Placement:
-

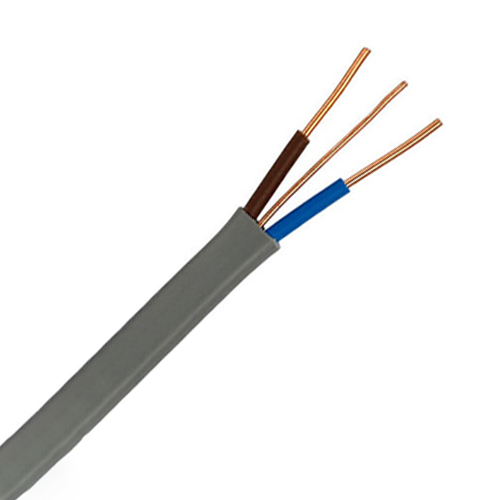

For twin cores: centrally placed between cores in same plane
-
For 3 cores: centrally placed between black and grey cores in same plane
-
-
Sheath: PVC sheath type T6 to BS 7655

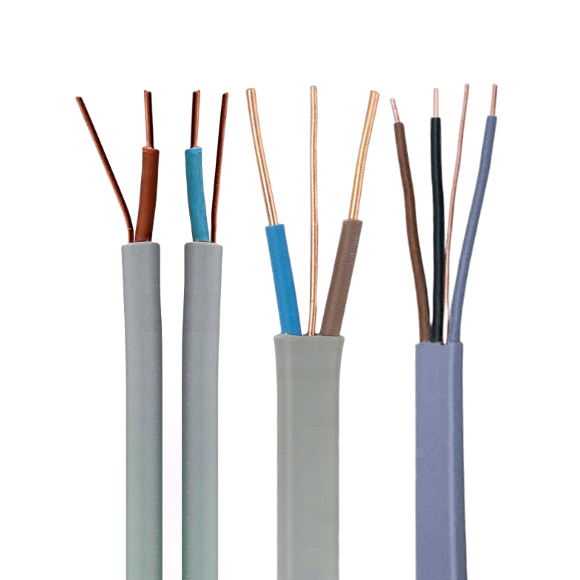

Core Identification:
-
2 cores: Brown and Blue, or, for 2 × 1.0 and 2 × 1.5 cables, Brown and Brown
-
3 cores: Brown, Black (centre core) and Grey
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Working Voltage | 300/500V |
| Test Voltage | 2000 volts |
| Minimum Bending Radius | 4 x Overall Diameter |
| Flexing Temperature | -15°C to +70°C |
| Short Circuit Temperature | +160°C |
| Flame Retardant | IEC 60332.1 |
| Insulation Resistance | 10 MΩ x km |
Parameter Table – 6241Y
| AWG (No. of Strands/Strand Diameter) | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Sheath (mm) | Nominal Overall Dimensions – Lower Limit (mm) | Nominal Overall Dimensions – Upper Limit (mm) | Circuit Protective Conductor AWG | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 17 | 1 × 1.0 | 0.6 | 0.9 | 3.9 x 5.1 | 4.8 x 6.0 | 17 | 45 |
| 16 | 1 × 1.5 | 0.7 | 0.9 | 4.4 x 5.4 | 5.3 x 6.6 | 17 | 55 |
Parameter Table – 6242Y
| AWG (No. of Strands/Strand Diameter) | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Sheath (mm) | Nominal Overall Dimensions – Lower Limit (mm) | Nominal Overall Dimensions – Upper Limit (mm) | Circuit Protective Conductor AWG | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 17 | 2 × 1.0 | 0.6 | 0.9 | 3.9 × 7.2 | 4.8 × 8.7 | 17 | 68 |
| 16 | 2 × 1.5 | 0.7 | 0.9 | 4.4 × 8.1 | 5.3 × 9.7 | 17 | 85 |
| 14 | 2 × 2.5 | 0.8 | 1 | 5.1 × 9.6 | 6.2 × 11.7 | 16 | 120 |
| 12 (7/20) | 2 × 4 | 0.8 | 1 | 5.7 × 10.8 | 6.9 × 13.1 | 16 | 175 |
| 10 (7/18) | 2 × 6 | 0.8 | 1.1 | 6.4 × 12.4 | 7.8 × 15.0 | 14 | 240 |
| 8 (7/16) | 2 × 10 | 1 | 1.2 | 7.9 × 15.5 | 9.5 × 18.9 | 12 (7/20) | 390 |
| 6 (7/14) | 2 × 16 | 1 | 1.3 | 8.9 × 18.1 | 10.8 × 21.9 | 10 (7/18) | 560 |
Parameter Table – 6243Y
| AWG (No. of Strands/Strand Diameter) | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Sheath (mm) | Nominal Overall Dimensions – Lower Limit (mm) | Nominal Overall Dimensions – Upper Limit (mm) | Circuit Protective Conductor AWG | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 17 | 3 × 1.0 | 0.6 | 0.9 | 3.9 x 9.4 | 4.8 x 11.4 | 17 | 91 |
| 16 | 3 × 1.5 | 0.7 | 0.9 | 4.4 x 10.7 | 5.3 x 12.9 | 17 | 115 |
| 14 | 3 × 2.5 | 0.8 | 1 | 5.1 x 12.6 | 6.2 x 15.3 | 17 | 170 |
| 12 (7/20) | 3 × 4 | 0.8 | 1.1 | 5.9 x 14.8 | 7.1 x 17.9 | 16 | 250 |
| 10 (7/18) | 3 × 6 | 0.8 | 1.1 | 6.4 x 16.8 | 7.8 x 20.2 | 14 | 340 |
| 8 (7/16) | 3 × 10 | 1 | 1.2 | 7.9 x 21.3 | 9.5 x 25.7 | 12 (7/20) | 540 |
| 6 (7/14) | 3 × 16 | 1 | 1.3 | 8.9 x 24.6 | 10.8 x 29.7 | 10 (7/18) | 790 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
BS 6004
-
Conductor Stranding: IEC 60228 CL-1 or 2
-
Insulation: PVC type TI1 to BS 7655
-
Sheath: PVC type T6 to BS 7655
-
Flame Retardant: IEC 60332.1
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: 6241Y, 6242Y, or 6243Y
-
Voltage Rating: 300/500V
-
Number of Cores and Cross-Section: e.g., 2 × 1.5 mm², 3 × 2.5 mm², 2 × 10 mm²
-
Conductor: Fine bare copper strands, Class 1 or 2
-
Insulation: PVC TI1
-
Sheath: PVC T6
-
Quantity: Total length in meters
