Product Overview
The CKEPFP96/SC is a premium-grade, screened and armored marine control cable designed for reliable power, lighting, and control circuit applications in the most demanding environments. Featuring EPR insulation, individual pair/screen shielding, galvanized steel wire armor, and a Halogen-Free, Low Smoke Flame Retardant (LSHF) construction, it ensures maximum signal integrity, mechanical protection, and safety on offshore platforms, ships, and in heavy industries. This cable is manufactured in full compliance with the IEC 60092 series of standards for marine electrical installations.
Key Features & Benefits
-
Superior Safety & Environmental Protection: Halogen-Free and Low Smoke properties (IEC 60754, IEC 61034) reduce toxic/corrosive fumes and improve visibility in case of fire. High Flame Retardancy (IEC 60332-1 & -3-22) inhibits fire spread.
-
Enhanced Signal Integrity & EMI Protection: The integrated screen (tinned copper braid or Alu/Polyester tape) effectively shields against electromagnetic interference (EMI), ensuring stable performance for sensitive control signals.
-
Maximum Mechanical Durability: The galvanized steel wire braid armor provides robust protection against physical impact, crushing, and rodent damage. The double-sheathed design offers additional environmental resistance.
-
Robust & Reliable Construction: EPR insulation ensures excellent thermal stability (90°C), moisture, and chemical resistance for long service life in harsh conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 cores.

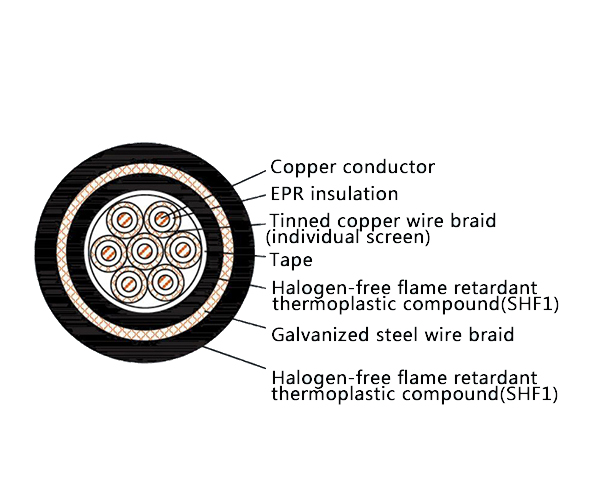

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braided, or Aluminium/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Standard Black (Other Colors Available) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for:
-
Power, lighting, and control systems on ships, oil & gas platforms, and offshore constructions.
-
Industrial automation, control, and instrumentation circuits in harsh environments such as power plants, chemical processing facilities, metallurgy, and mining operations.
