Product Overview
The CEPFR80/SC is a halogen-free, low-smoke, flame-retardant marine flexible power cable that combines superior electrical performance with enhanced safety. It features Ethylene Propylene Rubber (EPR) insulation for excellent thermal and dielectric properties, a thermoplastic polyolefin (SHF1) inner sheath, and tinned copper wire braid armor. This design provides a flexible, shielded, and safe wiring solution for critical power and control circuits in demanding marine and industrial environments.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

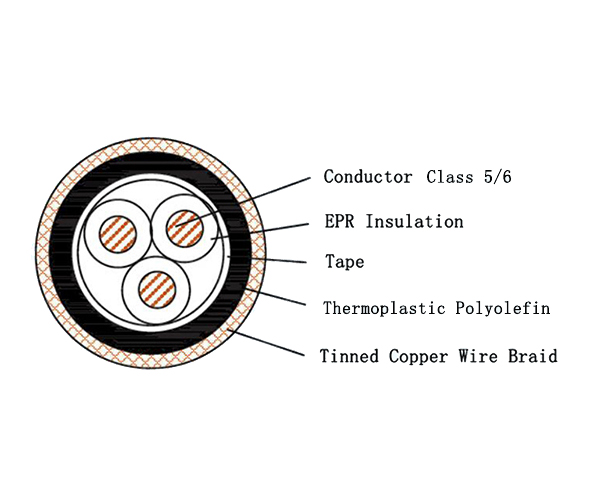

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Key Performance Characteristics
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) offers outstanding dielectric strength, high flexibility over a wide temperature range, and excellent resistance to heat, moisture, and electrical stress.
-
Halogen-Free & Enhanced Safety: The construction materials are halogen-free (IEC 60754) and generate low smoke density (IEC 61034), minimizing corrosive gas emission and improving visibility in case of fire. It is also flame retardant (IEC 60332).
-
High Flexibility & EMI Shielding: Utilizes flexible Class 5/6 conductors for easy installation in tight spaces. The tinned copper wire braid armor provides effective electromagnetic interference (EMI) shielding for sensitive control circuits.
-
Corrosion-Resistant Armor: Tinned copper braid offers good resistance to corrosion in humid marine atmospheres.
Standards & Compliance
This cable is designed and manufactured in accordance with key international marine and safety standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This flexible and shielded cable is suitable for installations requiring safety, flexibility, and EMI protection:
-
Marine & Offshore: Power, lighting, and control system wiring within control panels, switchboards, and for instrumentation on ships and offshore platforms, especially in areas where halogen-free materials are specified.
-
Industrial: Flexible connections in control cabinets and industrial machinery where EMI shielding, flexibility, and enhanced fire safety (low smoke, zero halogen) are important.
