Product Overview
The CEPFR86/SC is a premium halogen-free, low-smoke, flame-retardant marine flexible power cable designed for applications demanding superior electrical performance, enhanced safety, and robust mechanical protection. It features Ethylene Propylene Rubber (EPR) insulation for excellent thermal stability, a complete thermoplastic polyolefin (SHF1) dual-sheath system, and tinned copper wire braid armor. This construction provides outstanding flexibility, effective EMI shielding, and a high level of environmental protection for critical circuits in marine and industrial settings.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded, Annealed Copper Wire (Class 5/6 flexible) (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

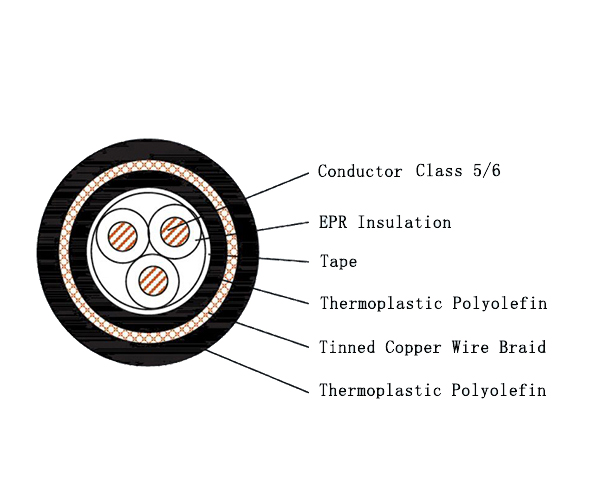

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire (Flexible Class 5/6) |
| Insulation | E | EPR insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin(SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Key Performance Characteristics
-
Superior EPR Insulation: Ethylene Propylene Rubber (EPR) insulation provides excellent dielectric properties, high flexibility across a wide temperature range, and outstanding resistance to heat, moisture, and electrical stress.
-
Halogen-Free Safety Package: The cable is constructed with halogen-free, low-smoke materials (IEC 60754 & IEC 61034) and is flame retardant (IEC 60332), minimizing corrosive gas emission and smoke density in the event of a fire for enhanced personnel safety.
-
Complete Sheath Protection & EMI Shielding: The dual-layer SHF1 sheath system offers excellent mechanical and environmental protection. The tinned copper wire braid armor provides effective electromagnetic interference (EMI) shielding for sensitive control and power circuits.
-
High Flexibility: Designed with flexible Class 5/6 conductors, the cable remains easy to handle and install in complex cable trays and confined spaces, despite its full-protection design.
Standards & Compliance
This cable is designed and manufactured in accordance with key international marine and safety standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is ideal for flexible installations requiring a high degree of safety, shielding, and durability:
-
Marine & Offshore: Internal wiring for control panels, switchboards, instrumentation, and power circuits on ships and offshore platforms where halogen-free materials and EMI protection are specified.
-
Industrial: Flexible power and control connections in industrial machinery, processing plants, and facilities where enhanced fire safety, environmental resistance, and shielding are required.
