Product Overview
The CJPJP/NC is a premium, unarmored fire resistant marine cable engineered for safety-critical circuits in protected installations where superior flexibility, enhanced sheath performance, and guaranteed circuit integrity are paramount. It combines the essential Mica Glass Tape + XLPE fire-survival insulation (IEC 60331) with a high-performance Cross-linked Polyolefin (SHF2) inner sheath, offering better thermal and mechanical resistance than standard sheaths. This flexible, lightweight design is ideal for routing in cable trays, conduits, and enclosed spaces, providing life-safety systems with reliable operation during a fire while ensuring low smoke and zero halogen emission.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Ensures that vital emergency and essential circuits (e.g., emergency lighting, fire alarms, communication systems) remain operational for a specified duration under fire conditions, which is crucial for life safety and evacuation procedures.
-
Enhanced Sheath Durability (SHF2): Features a Cross-linked Polyolefin (SHF2) inner sheath, which provides superior long-term resistance to high temperatures, deformation, cracking, and environmental stress compared to standard thermoplastic materials.
-
Superior Flexibility & Lightweight: The unarmored (no metallic armor) construction ensures excellent flexibility, ease of handling, and reduced weight, facilitating faster and simpler installation in cable management systems.
-
Fire-Survival Core Technology: The Mica Glass Tape layer over XLPE insulation forms a robust ceramic barrier under intense heat, maintaining electrical insulation integrity and preventing circuit failure during a fire event.
-
Advanced Fire Safety (LSZH): Complies with IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke), drastically reducing the emission of corrosive/toxic gases and smoke density to facilitate safer evacuation and protect sensitive equipment.

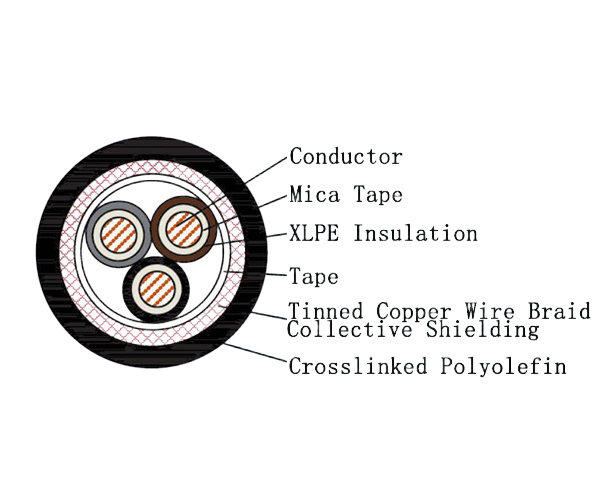

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) - Halogen Free, Low Smoke |
| Screen | P | Collective Copper Screen |
| Flammability Class | NC | Halogen Free, Low Smoke, Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Cross-linked Polyolefin (SHF2) |
| Screen | Collective Copper Screen |
| Armour | None (Unarmored) |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Halogen Content | IEC 60754-1 (Halogen Free) |
| Smoke Density | IEC 61034-2 (Low Smoke) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured to the highest international standards for fire safety, marine application, and material performance:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034-2: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: Essential safety and control circuits within protected cable trays, conduits, or enclosures on passenger ships, ferries, and offshore platforms. Ideal for emergency lighting, fire alarm systems, public address/communication systems, and control circuits for safety equipment where certified fire resistance and enhanced sheath durability are required.
-
Critical Infrastructure & Buildings: Power supply for life-safety systems in public buildings, hospitals, data centers, airports, tunnels, and industrial control rooms, particularly where flexible, lightweight, and high-performance fire-resistant cabling is specified for fixed, protected installations.
