Product Overview
The CJVP80/NA is a Fire Resistant (FR) marine power cable designed to ensure circuit integrity for critical safety systems during a fire emergency. It combines a Mica Glass Tape + XLPE composite insulation system, certified to IEC 60331, with a standard PVC inner sheath and a flexible, corrosion-resistant tinned copper wire braid armor. This cost-effective shielded solution provides reliable, continuous power to essential circuits under fire conditions, making it suitable for a wide range of marine and industrial applications where standard sheath materials are acceptable.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Ensures vital emergency circuits (e.g., emergency lighting, fire alarms, pump systems) remain operational for a specified duration under direct flame and mechanical shock, which is critical for life safety.
-
Flexible & Corrosion-Resistant Armor: The braided armor of tinned copper wires offers excellent flexibility for easier installation and routing, along with inherent corrosion resistance suitable for marine and humid environments.
-
Fire-Survival Core Technology: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant barrier that maintains electrical insulation integrity at extreme temperatures, preventing circuit failure during a fire.
-
Cost-Effective Construction: Utilizes a proven PVC inner sheath, offering good mechanical protection and environmental resistance at a competitive price point for applications not requiring halogen-free materials.
-
Effective EMI Shielding: The integrated collective copper screen protects against electromagnetic interference, ensuring signal integrity for power and control systems.

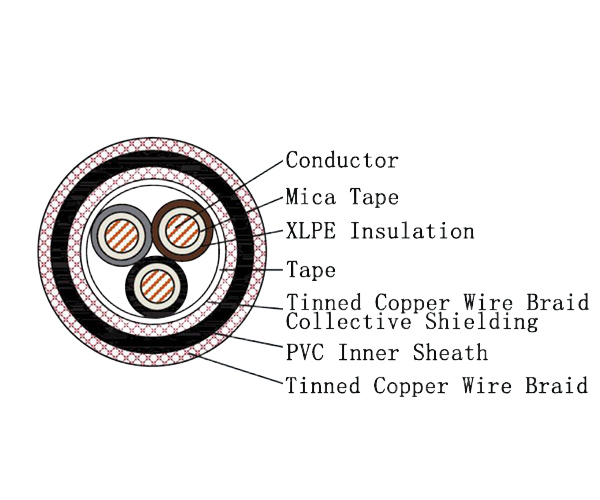

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Screen | P | Collective Copper Screen |
| Armour | 8 | Braid of Tinned or Plain Copper Wires |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability Class | NA | Fire Resistant |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Polyvinyl Chloride (PVC) |
| Screen | Collective Copper Screen |
| Armour | Braided Tinned/Plain Copper Wires |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured to meet key international standards for fire safety and marine applications:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
Typical Applications
-
Marine & Offshore: Critical emergency circuits on ships, workboats, and certain offshore installations where circuit integrity during fire is mandated but halogen-free materials are not specifically required. Suitable for emergency lighting, alarm systems, and fire pump controls.
-
Industrial & General Infrastructure: Power supply for essential safety and backup systems in industrial plants, power stations, and infrastructure projects where fire-resistant performance is needed, and PVC sheathing provides sufficient environmental protection.
