CJPJP95/NC Fire Resistant Marine Power Cable with Full SHF2 Sheathing & Steel Armor – Mica/XLPE Insulated, Halogen-Free (0.6/1kV)

Product Overview

The CJPJP95/NC represents the pinnacle of safety and durability for marine and industrial power cabling, designed for extreme-risk applications where circuit integrity during fire, maximum mechanical protection, and long-term environmental resistance are all non-negotiable. This cable integrates a fire-survival Mica/XLPE insulated core (IEC 60331) with a complete double-layer sheathing system of Cross-linked Polyolefin (SHF2) and a heavy-duty galvanized steel wire braid armor. It is the definitive solution for ensuring that critical life-safety and emergency systems remain powered under the most severe fire conditions while withstanding brutal physical and environmental challenges.

Key Features & Benefits

• Certified Fire Resistance (IEC 60331): Guarantees continued operation of essential circuits (emergency lighting, fire pumps, alarms, shutdown systems) under direct flame and mechanical shock, a fundamental requirement for life safety and asset protection.

• Ultimate Mechanical & Environmental Defense: A high-strength galvanized steel wire braid armor provides supreme protection against crushing and impact. This is combined with a dual-layer SHF2 cross-linked sheath that offers exceptional, long-term resistance to abrasion, heat deformation, chemicals, oils, and moisture.

• Superior Sheath Material (Full SHF2): Both inner and outer sheaths are made of Cross-linked Polyolefin (SHF2), which far outperforms standard thermoplastics in high-temperature stability, crack resistance, and overall durability under stress.

• Fire-Survival Core Technology: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant ceramic barrier, maintaining electrical insulation integrity at extreme temperatures to prevent circuit failure during a fire.

• Enhanced Fire Safety (LSZH): Complies with IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke), drastically reducing the emission of corrosive/toxic gases and smoke opacity to facilitate safer evacuation and protect equipment.

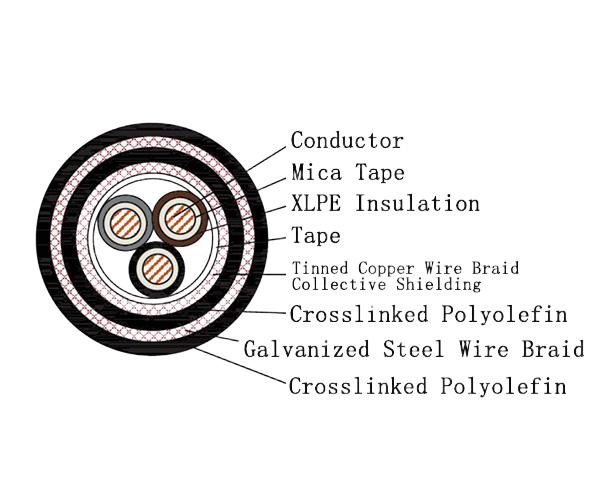

Cable Construction

Item	Code	Material / Description
Series Code	C	Marine Power Cable
Conductor	/	Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
Insulation	J	Mica Glass Tape + XLPE Insulated
Inner Sheath	PJ	Cross-linked Polyolefin (SHF2) - Halogen Free, Low Smoke
Screen	P	Collective Copper Screen
Armour	9	Braid of Galvanized Steel Wires
Outer Sheath	5	Cross-linked Polyolefin (SHF2) - Halogen Free, Low Smoke
Flammability Class	NC	Halogen Free, Low Smoke, Fire Resistant
Sheath Colour	/	Standard Black (Other colours on request)

Technical Specifications

Standards & Approvals

This cable is manufactured to the highest international standards for fire safety, marine application, and material performance:

• IEC 60092-350, 353: Electrical installations in ships – Design.

• IEC 60228: Conductors of insulated cables.

• IEC 60092-360: Insulating and sheathing materials.

• IEC 60331: Tests for fire resistant characteristics.

• IEC 60332-1 & -3-22: Tests for flame retardancy.

• IEC 60754-1: Test on gases evolved during combustion (Halogen Free).

• IEC 61034-2: Measurement of smoke density (Low Smoke).

Typical Applications

• Marine & Offshore: The most critical safety circuits on passenger ships, naval vessels, FPSOs, and offshore platforms, especially in exposed, high-risk zones (engine rooms, pump rooms, open decks, escape routes). Essential for emergency generator feeds, fire pump systems, alarm circuits, and platform shutdown systems.

• Critical Infrastructure & Heavy Industry: Power supply for life-safety and indispensable process systems in the most demanding environments: nuclear power plants, petrochemical refineries, LNG terminals, underground mining, long tunnels, and metro systems where both fire survival and the highest level of mechanical/corrosion protection are required.
