British Standard Industrial Cable 6192Y / 6193Y to BS 6004

Product Overview

The 6192Y and 6193Y are British Standard industrial cables designed for fixed installation in dry or damp premises on walls, boards, or trays, in channels, or embedded in plaster. They should be laid in conduit or trunking where mechanical protection is required.

The cables feature fine bare copper strands, PVC insulation type TI1 to BS 7655, and a PVC sheath type T6 to BS 7655. They are manufactured to BS 6004.

Features & Benefits

  • British Standard Compliance: Manufactured to BS 6004.

  • Fixed Installation: Suitable for dry or damp premises on walls, boards, trays, channels, or embedded in plaster.

  • Fine Bare Copper Strands: Stranding to BS 6360, IEC 60228 CL-1 or 2.

  • PVC TI1 Insulation: PVC insulation type TI1 to BS 7655.

  • PVC T6 Sheath: PVC sheath type T6 to BS 7655.

  • Flame Retardant: Complies with IEC 60332.1.

  • Voltage Rating: 300/500V.

  • Test Voltage: 2000 volts.

  • Insulation Resistance: 10 MΩ x km.

  • Short Circuit Temperature: +160°C.

  • Operating Temperature: -15°C to +70°C.

  • Minimum Bending Radius: 4 x overall diameter.

Typical Applications

  • Fixed installation in dry or damp premises

  • Walls, boards, or trays

  • Channels or embedded in plaster

  • Conduit or trunking installations where mechanical protection is required

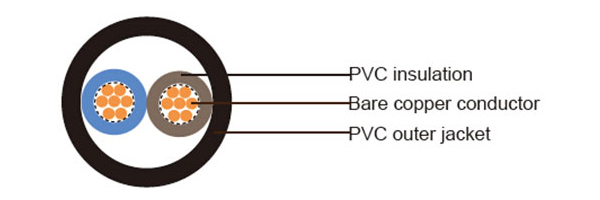

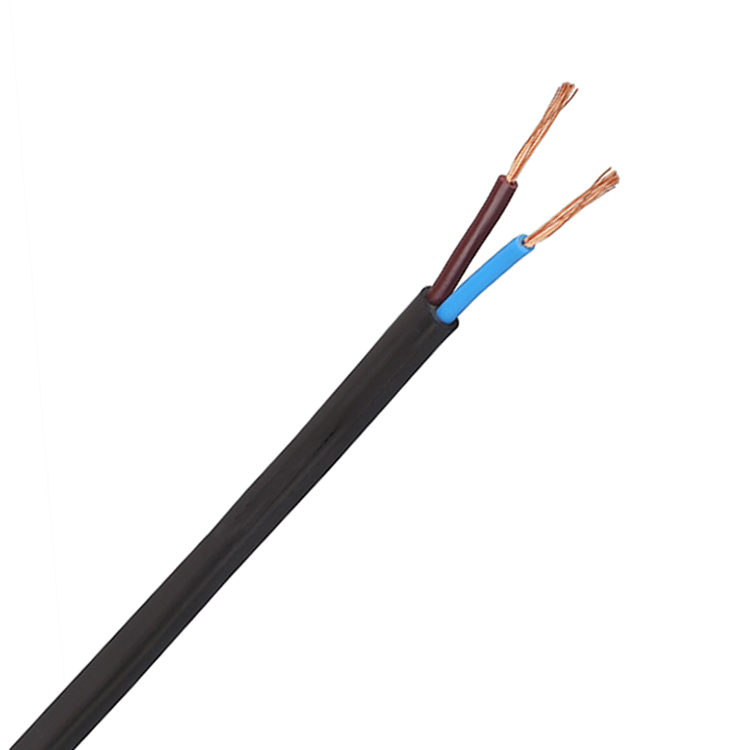

Construction

  • Conductor: Fine bare copper strands

  • Stranding: BS 6360, IEC 60228 CL-1 or 2

  • Insulation: PVC insulation type TI1 to BS 7655

  • Sheath: PVC sheath type T6 to BS 7655

Core Identification:

  • 2 cores: Brown and Blue

  • 3 cores: Brown, Black and Grey

Technical Specifications

Electrical & Thermal Characteristics

Parameter Value
Working Voltage 300/500V
Test Voltage 2000 volts
Minimum Bending Radius 4 x Overall Diameter
Operating Temperature -15°C to +70°C
Short Circuit Temperature +160°C
Flame Retardant IEC 60332.1
Insulation Resistance 10 MΩ x km

Parameter Table – 6192Y

AWG (No. of Strands/Strand Diameter) No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Thickness of Sheath (mm) Nominal Overall Dimensions – Lower Limit (mm) Nominal Overall Dimensions – Upper Limit (mm) Nominal Weight (kg/km)
17 2 × 1.0 0.6 0.9 4 x 6.2 4.7 x 7.4 53
16 2 × 1.5 0.7 0.9 4.4 x 7.0 5.4 x 8.4 70
14 2 × 2.5 0.8 1 5.2 x 8.4 6.2 x 9.8 105
12 (7/20) 2 × 4 0.8 1 6 x 10.4 7.2 x 11.5 150
10 (7/18) 2 × 6 0.8 1.1 6.8 x 11.5 8.0 x 13.0 205
8 (7/16) 2 × 10 1 1.2 7.8 x 15.1 9.6 x 16 325
6 (7/14) 2 × 16 1 1.3 9.8 x 17.2 11.0 x 18.5 465

Parameter Table – 6193Y

AWG (No. of Strands/Strand Diameter) No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Thickness of Sheath (mm) Nominal Overall Dimensions – Lower Limit (mm) Nominal Overall Dimensions – Upper Limit (mm) Nominal Weight (kg/km)
17 3 × 1.0 0.6 0.9 4 x 8.4 4.7 x 9.8 77
16 3 × 1.5 0.7 0.9 4.4 x 9.8 5.4 x 11.5 100
14 3 × 2.5 0.8 1 5.2 x 11.5 6.2 x 13.5 150
12 (7/20) 3 × 4 0.8 1.1 6 x 14.8 7.4 x 16.5 230
10 (7/18) 3 × 6 0.8 1.1 6.8 x 16.5 8.0 x 18.0 300
8 (7/16) 3 × 10 1 1.2 7.8 x 21.0 9.6 x 22.5 485
6 (7/14) 3 × 16 1 1.3 9.8 x 24.8 11.0 x 26.5 700

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • BS 6004

  • Conductor Stranding: BS 6360, IEC 60228 CL-1 or 2

  • Insulation: PVC type TI1 to BS 7655

  • Sheath: PVC type T6 to BS 7655

  • Flame Retardant: IEC 60332.1

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: 6192Y or 6193Y

  • Voltage Rating: 300/500V

  • Number of Cores and Cross-Section: e.g., 2 × 1.0 mm², 3 × 2.5 mm², 2 × 10 mm²

  • Conductor: Fine bare copper strands, Class 1 or 2

  • Insulation: PVC TI1

  • Sheath: PVC T6

  • Quantity: Total length in meters
