CJV/NA XLPE Insulated Marine Power Cable
Product Overview
The CJV/NA is a non-armored, fire-resistant marine power cable engineered for critical circuits in applications where flexibility, weight savings, and certified fire survival are paramount. It incorporates a mica-reinforced XLPE insulation system and a PVC sheath, complying with the stringent IEC 60331 fire resistance standard. Designed for essential power, lighting, and control systems in offshore platforms, ships, and industrial settings, it is ideal for protected spaces where ease of installation and fire circuit integrity are key requirements.
Key Features
-
Certified Fire Resistance: Complies with IEC 60331, ensuring critical circuits remain operational to support emergency systems during a fire.
-
Flexible & Lightweight Design: Non-armored construction provides excellent flexibility for installation in conduits, trays, and tight spaces, reducing overall weight and handling complexity.
-
Enhanced Safety Properties: Meets IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke) standards, limiting smoke density and eliminating corrosive gas emissions.
-
Flame Retardant: Also satisfies IEC 60332-1 & -3-22 requirements to prevent flame spread in both single and bundled installations.
-
Reliable Insulation System: Mica Glass Tape + XLPE insulation ensures electrical integrity is maintained under direct fire exposure.

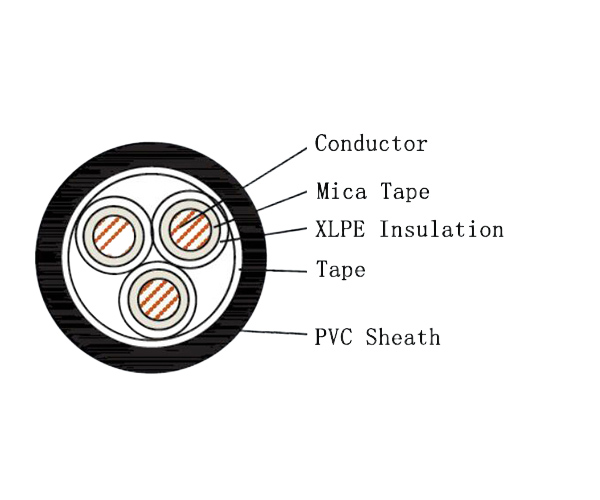

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Sheath | V | PVC |
| Sheath Color | / | Black or other Color |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency and safety circuit wiring within ship and offshore accommodation and control rooms.
-
Fire alarm systems, emergency lighting, and communication circuits in protected areas.
-
Internal control panel and instrumentation wiring in power plants and industrial facilities requiring fire-resistant cables.
-
Applications in tunnels, buildings, and industrial plants where flexibility and certified fire performance are needed without mechanical armor.
