CJPFP80/SC XLPE Insulated Low-Smoke Halogen-Free Marine Shielded Power Cable
Product Overview
The CJPFP80/SC is a premium marine-grade power cable engineered for critical applications where safety, reliability, and durability are paramount. Featuring cross-linked polyethylene (XLPE) insulation and a low-smoke, halogen-free (LSZH) compound, it ensures enhanced fire safety by minimizing toxic emissions and smoke opacity in case of fire. Its integrated copper braid screen and armor provide excellent electromagnetic compatibility and mechanical protection, making it the ideal choice for demanding fixed installations on ships and offshore platforms.
Key Features & Benefits
-
Enhanced Fire Safety: LSZH sheath material reduces corrosive/toxic gases and smoke density, improving visibility for safe evacuation.
-
Robust Construction: XLPE insulation offers superior thermal stability (up to 90°C), excellent electrical properties, and resistance to moisture and chemicals.
-
Full Shielding & Armoring: Collective copper screen suppresses EMI/RFI interference. Tinned copper wire braid armor provides mechanical protection and serves as an effective earth continuity conductor.
-
Marine & Industrial Compliance: Designed and tested in accordance with international IEC standards for marine electrical installations.
-
Versatile Application: Suitable for a wide range of power, lighting, and control circuit applications in harsh environments.

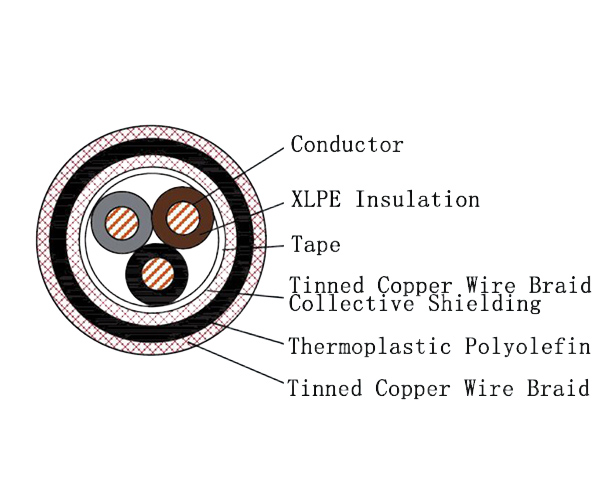

Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Conductor Temperature | 90°C |
| Conductor | Plain or tinned annealed copper, stranded (IEC 60228) |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Thermoplastic Polyolefin (SHF1) |
| Screening | Collective Screen (Copper) |
| Armour | Braid of Tinned/Plain Copper Wires |
| Outer Sheath | Low-Smoke, Zero-Halogen (LSZH) Flame Retardant Compound |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Available Core Configurations | 1 to 37 cores |
| Available Cross-Sections | 0.75 mm² to 300 mm² |
| Standard Sheath Colour | Black (Other colours available on request) |
Standards & Approvals
This cable is designed and manufactured in compliance with the following international standards:
-
IEC 60092-350, 353: Electrical installations in ships - General construction and test methods.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60332-1: Test for vertical flame propagation.
-
IEC 60332-3-22: Flame spread for bunched cables - Category A.
Typical Applications
-
Marine: Main and auxiliary power distribution, lighting, and control systems on ships, tankers, and offshore oil & gas platforms.
-
Industrial: Power supply circuits in harsh environments such as chemical plants, metallurgy facilities, power generation stations, and mining operations where enhanced fire safety is required.
