CJV92/NA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV92/NA is a fully protected, fire-resistant marine power cable designed to deliver maximum durability and circuit integrity in the most demanding applications. It features a robust galvanized steel wire braid armor for superior mechanical protection, a complete double-layer PVC sheath system, and complies with IEC 60331 fire resistance standards. This cable is engineered for critical power, lighting, and control circuits on offshore platforms, ships, and in hazardous industrial environments where exposure to physical damage, environmental hazards, and fire risk is high.
Key Features
-
Maximum Mechanical & Environmental Protection: Combines galvanized steel wire armor with a dual PVC sheath (inner and outer), offering exceptional resistance to crushing, impact, moisture, abrasion, and chemicals.
-
Certified Fire Resistance: Complies with IEC 60331, ensuring vital emergency circuits remain operational during a fire event.
-
Enhanced Safety Features: Meets IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke) standards, reducing smoke density and eliminating corrosive gas emissions for personnel safety.
-
Flame Retardant: Satisfies IEC 60332-1 & -3-22 requirements to inhibit flame propagation.
-
Reliable Fire-Survival Insulation: Utilizes Mica Glass Tape + XLPE insulation to maintain electrical integrity under extreme thermal stress.

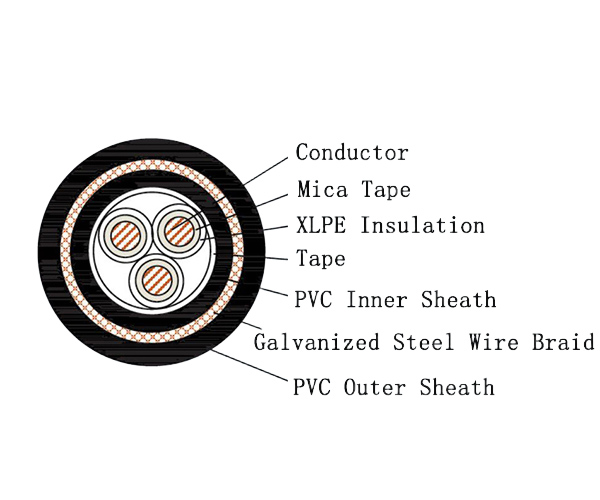

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Critical power feeders and emergency control circuits on offshore oil & gas platforms and drilling rigs.
-
Fire-fighting systems (pumps, alarms), emergency lighting, and safety circuits in marine and industrial plants.
-
Heavy industrial, mining, and chemical processing facilities where cables face severe mechanical abuse and require fire survival capability.
-
Infrastructure and installations demanding a fully sheathed, armored cable with certified fire resistance.
