Product Overview
The CHEVP/SA is a screened (shielded) marine communication cable designed for reliable data and signal transmission in environments prone to electromagnetic interference (EMI). Featuring EPR insulation, a PVC outer sheath, and an optional tinned copper braid or Alu/Polyester tape screen, it provides excellent electrical performance and protection. As a Low Smoke Halogen Free (LSHF) and Flame Retardant cable, it meets the safety and performance requirements of critical marine and industrial communication systems.
Key Features & Benefits
-
EMI/RFI Shielding: Equipped with a tinned copper wire braid or Alu/Polyester tape screen to effectively shield against electromagnetic and radio frequency interference, ensuring signal integrity for sensitive instrumentation and data systems.
-
Enhanced Safety: Combines Flame Retardant properties (IEC 60332) with Low Smoke and Halogen-Free (LSHF) characteristics (IEC 60754, 61034), reducing fire propagation risks and toxic fume emission.
-
Robust & Flexible Design: EPR insulation offers superior thermal resistance (90°C), flexibility, and durability. The PVC outer sheath provides mechanical protection, abrasion resistance, and is available in black or other colors for easy circuit identification.
-
Marine & Industrial Grade: Constructed to withstand the challenging conditions of marine vessels, offshore platforms, and heavy industrial facilities.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

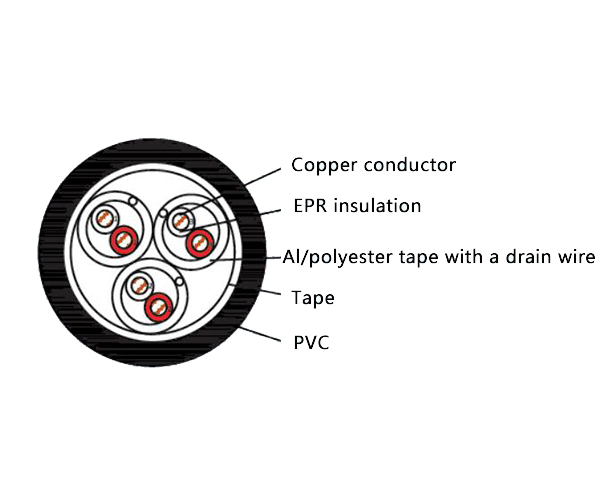

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) Insulated |
| Sheath | V | PVC (Polyvinyl Chloride) Sheath |
| Screen | P | Tinned Copper Wire Braided, OR Alu/Polyester Tape with Copper Drain Wire |
| Sheath Color | / | Black or other specified color |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This screened cable is ideal for sensitive communication and control circuits in:
-
Marine & Offshore: Telecommunication, computer networks, instrumentation, and information processing systems on ships and offshore platforms (e.g., oil & gas), where EMI protection is crucial.
-
Industrial Automation: Data transmission and control networks in power plants, chemical processing facilities, metallurgy, and mining, especially in areas with high electrical noise.
