Product Overview
The CHEF90/NA is a premium Fire Resistant (FR) marine communication cable engineered for critical circuits that must maintain circuit integrity during a fire. It combines EPR insulation with a Mica Glass Tape barrier, PCP inner sheath, and Galvanized Steel Wire Armor to provide exceptional fire performance and mechanical durability. Compliant with the stringent IEC 60331 standard for fire resistance, it is designed for use in marine, offshore, and high-risk industrial safety systems.
Key Features & Benefits
-
Certified Fire Resistance: Engineered to meet IEC 60331 requirements, ensuring continued operation of essential communication and safety systems during a fire emergency.
-
Enhanced Safety Construction: Features Low Smoke, Halogen-Free (LSHF) properties (IEC 60754, IEC 61034) and high Flame Retardancy (IEC 60332) for overall circuit safety.
-
Robust Protection: The Mica/EPR insulation and PCP (Polychloroprene) inner sheath offer superior thermal and fire protection. Galvanized Steel Wire Braid armor provides excellent mechanical strength and grounding.
-
Marine & Heavy-Duty Grade: Built to withstand the harshest environmental conditions on ships, offshore platforms, and in demanding industrial plants.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

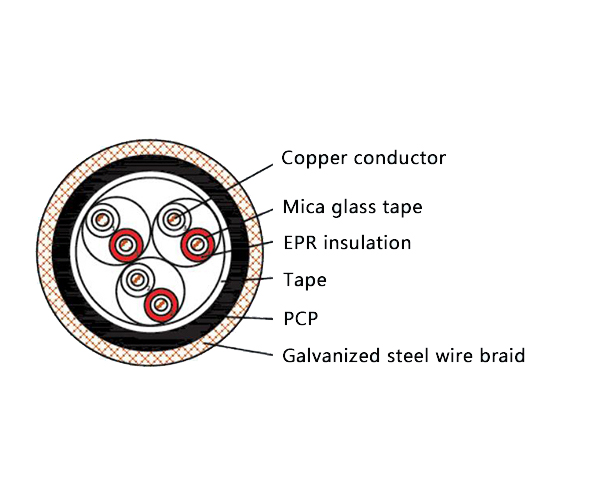

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) |
| Inner Sheath | F | PCP (Polychloroprene) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for essential circuits in:
-
Marine & Offshore: Telecommunication, instrumentation, alarm, and emergency system circuits on ships and offshore platforms (e.g., oil & gas) where circuit integrity during fire is mandatory.
-
Industrial Safety: Critical communication and control networks in power plants, chemical processing, metallurgy, and mining industries requiring enhanced fire survival capability.
