Product Overview
The CHEF80/NA is a specialized Fire Resistant (FR) marine communication cable designed for essential circuits that must maintain operation during a fire. Its core construction features Mica Glass Tape and EPR insulation with a PCP inner sheath, protected by a Copper Wire Braid armor. Notably supplied without an outer sheath, this configuration is ideal for installations within protective conduits, ducts, or panels where the robust armor provides the final mechanical layer, ensuring compliance with IEC 60331 for circuit integrity under fire conditions.
Key Features & Benefits
-
Certified Fire Resistance: Engineered to meet IEC 60331 standards, guaranteeing continued functionality of critical safety and communication systems during a fire emergency.
-
Integrated Safety Features: Combines fire resistance with Low Smoke, Halogen-Free (LSHF) properties (IEC 60754, 61034) and high Flame Retardancy (IEC 60332) for comprehensive hazard mitigation.
-
Optimized for Protected Installations: The Copper Wire Braid armor (Code 8) serves as the final layer, providing excellent electromagnetic shielding and mechanical protection. The absence of an outer sheath (Code 0) makes it suitable for streamlined installation inside sealed conduits, cable trays, or machinery panels.
-
Robust Core Construction: Mica/EPR insulation ensures superior thermal and fire protection, while the PCP inner sheath offers additional resistance to oil, chemicals, and heat.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

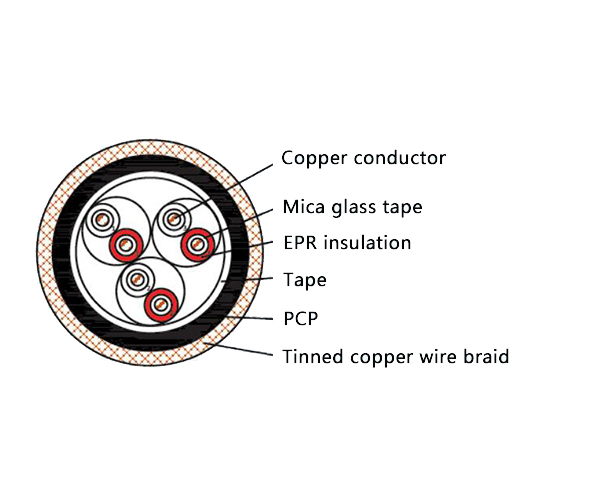

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR (Ethylene Propylene Rubber) Insulation |
| Inner Sheath | F | PCP (Polychloroprene) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for vital circuits in protected installations within:
-
Marine & Offshore: Critical telecommunication, alarm, and instrumentation systems on ships and offshore platforms, often installed in protected conduits or dedicated fire-rated cable trays.
-
Industrial Control Panels & Conduits: Safety-critical control and data networks within power plants, chemical facilities, and mining operations, where cables are routed inside enclosures, ducts, or machinery for added protection.
