Product Overview
The CHEF92/NA is a premium Fire Resistant marine-grade communication cable, engineered to maintain circuit integrity and ensure continuous operation of critical systems during a fire. It combines Mica Glass Tape and EPR insulation for superior fire resistance, alongside Low Smoke Halogen Free (LSHF) properties. Designed to meet the stringent safety and performance requirements of marine, offshore, and heavy industrial applications, this cable is fully compliant with the IEC 60092 series and key fire safety standards.
Key Features & Benefits
-
Superior Fire Resistance: Complies with IEC 60331, ensuring the cable continues to function for a specified period under fire conditions, which is critical for alarm, communication, and safety systems.
-
Enhanced Fire Safety: Features Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties to minimize toxic fumes and smoke opacity, alongside high Flame Retardancy (IEC 60332-1 & -3-22).
-
Robust Construction: The Mica Glass Tape + EPR insulation provides excellent thermal and electrical integrity under extreme heat. Galvanized Steel Wire Braid armor offers superior mechanical protection and grounding.
-
Marine & Industrial Durability: Built with materials like PCP inner sheath and PVC outer sheath to withstand harsh environmental conditions, including moisture, oil, and mechanical stress.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

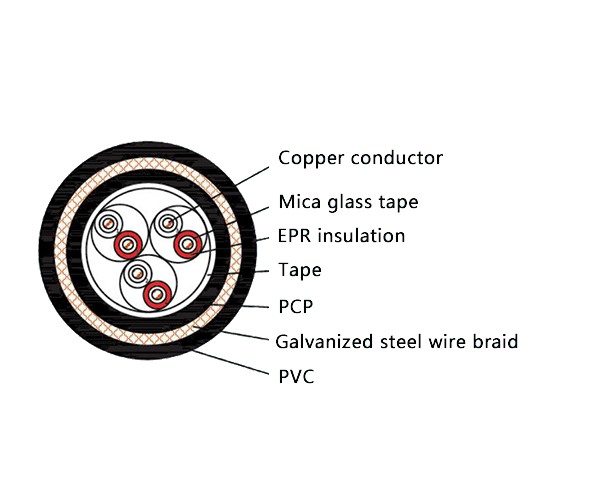

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + EPR Insulation |
| Inner Sheath | F | Polychloroprene (PCP) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | Polyvinyl Chloride (PVC) |
| Flammability | NA | Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This Fire Resistant cable is essential for:
-
Critical telecommunication, instrumentation, and data processing systems on marine vessels and offshore platforms (e.g., oil & gas rigs) where system integrity during fire is mandatory.
-
Safety circuits, alarm systems, and control networks in high-risk industrial environments such as power plants, chemical processing facilities, metallurgy, and mining.
