CJV82/NA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV82/NA is a fully sheathed, fire-resistant armored marine power cable designed for critical circuits where both enhanced mechanical protection and certified fire survival are required. It features a complete dual-sheath (PVC) system over its copper wire braid armor and is engineered to IEC 60331 standards to maintain circuit integrity during fire events. Ideal for essential power, lighting, and control systems in offshore platforms, ships, and hazardous industrial plants.
Key Features
-
Certified Fire Resistance: Complies with IEC 60331, ensuring continued operation of emergency circuits during a fire.
-
Complete Protective System: Features both an inner PVC sheath and a protective PVC outer sheath, offering robust defense against moisture, abrasion, and chemical exposure.
-
Flame Retardant & Safety Compliant: Meets IEC 60332 flame retardancy standards and IEC 60754 (Halogen Free) / IEC 61034 (Low Smoke) requirements for improved safety.
-
Flexible Armor Protection: Tinned Copper Wire Braid Armor provides mechanical strength, effective grounding, and flexibility for installation.
-
Fire-Resistant Insulation: Mica Glass Tape + XLPE insulation ensures conductor integrity and electrical performance under extreme thermal stress.

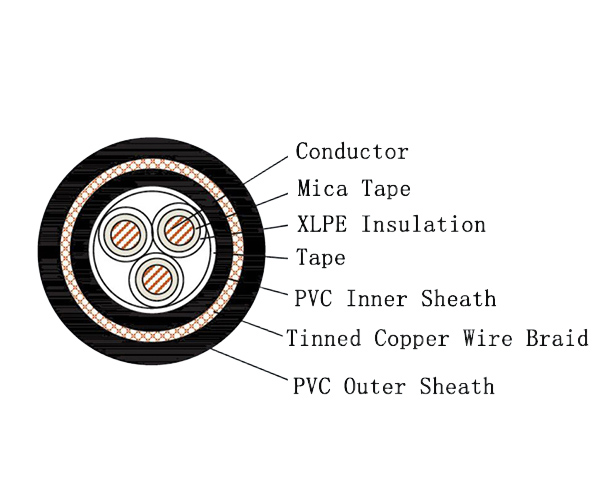

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency power feeders and critical control circuits on offshore oil & gas platforms.
-
Fire-fighting system pumps, emergency lighting, and alarm circuits on ships and marine structures.
-
Safety-critical wiring in power plants, chemical facilities, and mining operations.
-
Installations requiring a fully sheathed, fire-resistant cable with flexible copper armor.
