CJV80/NA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV80/NA is a fire-resistant, armored marine power cable engineered to maintain circuit integrity during fire emergencies. It combines IEC 60331 fire resistance with standard flame retardancy, featuring a mica-reinforced XLPE insulation system and flexible tinned copper wire braid armor. Designed for critical power, lighting, and control systems on offshore platforms and in high-risk industrial plants, it ensures vital operations continue under extreme conditions.
Key Features
-
Certified Fire Resistance: Complies with IEC 60331, ensuring the cable remains operational to support emergency systems during a fire.
-
Flame Retardant Protection: Also meets IEC 60332-1 & -3-22 standards to inhibit flame spread in both single and bunched installations.
-
Robust Insulation System: Mica Glass Tape + XLPE insulation provides a robust thermal barrier to protect conductor integrity under fire exposure.
-
Flexible Mechanical Armor: Tinned Copper Wire Braid offers effective mechanical protection, grounding continuity, and EMI shielding while maintaining cable flexibility.
-
Halogen-Free & Low-Smoke Properties: Complies with IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke) for reduced smoke opacity and non-corrosive emissions, enhancing personnel safety.

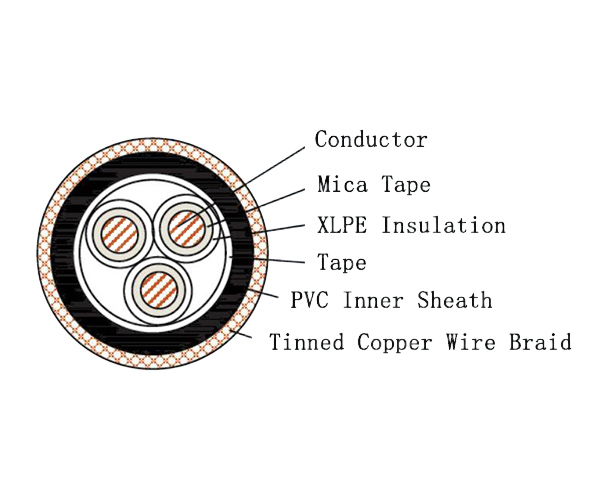

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency generator and fire pump power circuits on ships and offshore platforms.
-
Critical alarm, communication, and safety system wiring where circuit integrity is mandatory.
-
Escape route lighting and ventilation system controls in marine and industrial environments.
-
Power plants and industrial facilities requiring cables with certified fire survival capabilities.
