CJV90/NA XLPE Insulated Armored Marine Power Cable
Product Overview
The CJV90/NA is a heavy-duty, fire-resistant marine power cable designed for critical circuits that require maximum mechanical protection alongside certified fire survival capability. It features galvanized steel wire braid armor for superior resistance to crushing and impact, combined with mica-reinforced insulation meeting IEC 60331 fire resistance standards. This cable is engineered for essential power and control systems in the most demanding offshore and industrial environments where mechanical stress and fire hazards are significant concerns.
Key Features
-
Superior Mechanical Armor: Galvanized Steel Wire Braid provides the highest level of protection against physical damage, crushing, and rodent attack.
-
Certified Fire Resistance: Complies with IEC 60331, ensuring circuit integrity continues during fire emergencies to support critical safety systems.
-
Enhanced Safety Properties: Meets IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke) standards, reducing smoke opacity and eliminating corrosive gas emissions.
-
Flame Retardant Construction: Also satisfies IEC 60332-1 & -3-22 requirements to prevent flame propagation in both single and bundled installations.
-
Robust Insulation System: Mica Glass Tape + XLPE insulation maintains electrical integrity under extreme thermal conditions.

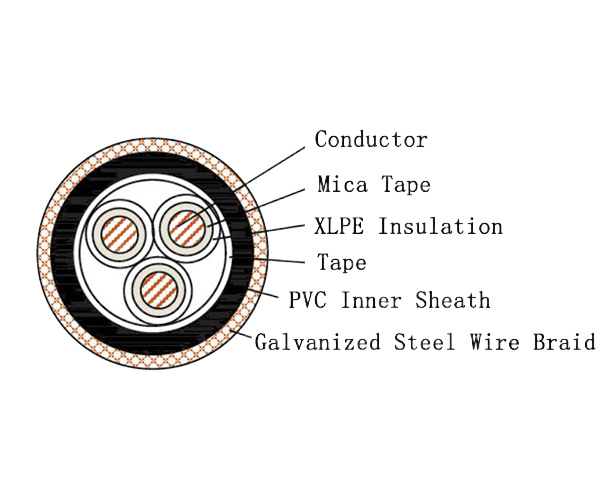

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency power distribution and critical control circuits in offshore platform engine rooms
-
Fire pump systems, emergency lighting, and safety alarms in marine and industrial facilities
-
Mining operations, heavy industrial plants, and areas with high mechanical damage risk
-
Tunnels and infrastructure projects requiring cables with both fire resistance and extreme mechanical durability
