CJPF/NC XLPE Insulated Low-smoke Halogen-free Marine Power Cable
Product Overview
The CJPF/NC is a specialized, non-armored marine power cable designed to provide maximum fire safety and environmental protection in applications where flexibility and weight are critical. It features a complete Low-Smoke Zero-Halogen (LSZH) construction with integral fire resistance (IEC 60331), making it ideal for essential power, lighting, and control circuits in confined or high-safety spaces on offshore platforms, ships, and within industrial plants such as power generation, chemical processing, and mining facilities.
Key Features
-
Optimum Flexibility & Lightweight: Its non-armored design ensures excellent flexibility for easier installation in tight spaces, conduits, and trays, while reducing overall weight.
-
Comprehensive Fire & Safety Performance: Combines Fire Resistance (IEC 60331) to maintain circuit integrity, Flame Retardancy (IEC 60332) to prevent fire spread, and Low-Smoke Halogen-Free (IEC 61034, IEC 60754) properties to minimize toxic smoke and corrosive gases.
-
Personnel & Equipment Protection: The LSZH sheath significantly reduces hazards during a fire, protecting both personnel in escape routes and sensitive equipment from corrosive fumes.
-
Reliable Insulation System: Utilizes mica glass tape over XLPE insulation, ensuring stable electrical performance and thermal endurance under fire conditions.
-
Broad Application Range: Available in a versatile range from 0.75 mm² to 300 mm², with 1 to 37 cores.

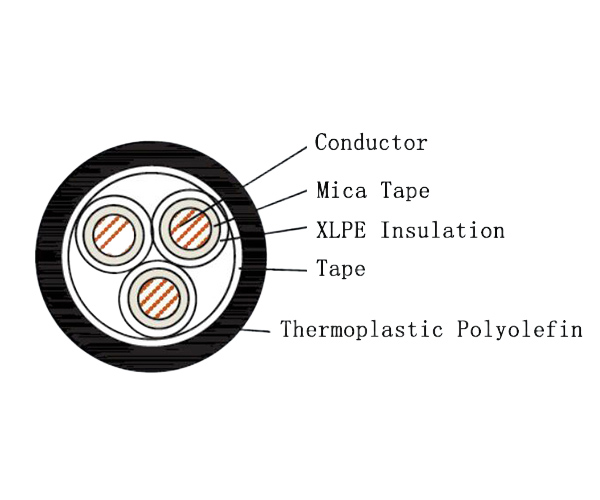

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency lighting, alarm, and communication circuits within accommodation and control rooms on ships and offshore platforms.
-
Internal wiring of control panels, instrumentation, and low-voltage systems in power plants and chemical facilities.
-
Escape routes, public areas, and ventilation systems where low toxicity and smoke emission are mandated by safety codes.
-
Industrial applications requiring high fire safety performance without the need for mechanical armor protection.
