Product Overview
The CHEVP80/SA is a flexible, screened, and armored marine communication cable engineered for installation within conduit, trunking, or protected enclosures where an external sheath is not required. It features EPR insulation for thermal endurance, a dedicated metallic screen for EMI protection, and a flexible tinned copper wire braid armor. This design offers superior flexibility, effective shielding, and mechanical protection, making it ideal for complex routing in control panels and enclosed spaces within demanding marine and industrial environments.
Key Features & Benefits
-
High Flexibility & Superior Shielding: The combination of a tinned copper braid or foil screen and a flexible tinned copper wire braid armor (Code 8) provides excellent protection against electromagnetic interference while allowing for easy bending and installation in tight spaces.
-
Optimized for Enclosed Installations: The "Without Outer Sheath" (Code 0) design is purpose-built for pulling into conduits, cable ducts, or control cabinets, reducing overall diameter and friction for easier installation.
-
Effective Grounding & Durability: The continuous copper braid armor serves as a highly effective shield and provides a reliable, low-resistance ground path. EPR insulation ensures stable performance at temperatures up to 90°C.
-
Flame Retardant: Complies with IEC 60332 flame retardancy standards for enhanced safety in bundled applications.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

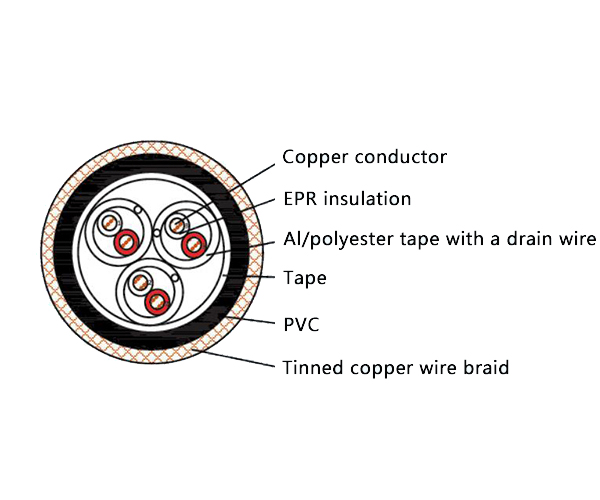

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
Applications
This highly flexible and shielded cable is specifically designed for protected, enclosed installations in:
-
Marine & Offshore: Internal wiring for instrumentation, control systems, and telecommunications on ships and platforms, particularly within control consoles, junction boxes, and conduits.
-
Industrial: EMI-sensitive data acquisition, process control, and computer networking within factory automation systems, power plant controls, and machinery where cables are installed inside ducts or cabinets for protection.
