CJPF96/NC XLPE Insulated Low-smoke Halogen-free Armored Marine Power Cable
Product Overview
The CJPF96/NC represents the pinnacle of marine cable engineering, offering the highest level of combined protection for mission-critical circuits. This cable integrates fire resistance (IEC 60331), low-smoke zero-halogen (LSZH) safety, rugged galvanized steel wire armor, and a complete double LSZH sheath system. It is the definitive choice for essential power, lighting, and control systems in the most severe offshore (e.g., oil & gas platforms) and industrial environments (e.g., power plants, chemical facilities, mining), where failure is not an option.
Key Features
-
Ultimate Mechanical & Chemical Protection: Features galvanized steel wire braid armor for supreme crush and impact resistance, fully enclosed by an inner and outer LSZH (SHF1) sheath for maximum resistance to moisture, oils, chemicals, and corrosion.
-
Uncompromised Fire Safety: Fire Resistant (IEC 60331) to ensure circuit integrity during fire, Flame Retardant (IEC 60332) to prevent flame spread, and Low-Smoke Halogen-Free (IEC 61034, IEC 60754) to protect personnel and equipment from toxic smoke.
-
Complete Environmental Sealing: The dual-sheath design provides a robust barrier against harsh elements, making it suitable for direct exposure in demanding conditions.
-
Reliable Insulation System: Mica glass tape over XLPE insulation guarantees electrical and thermal stability under extreme duress.
-
Comprehensive Specification Range: Available from 0.75 mm² to 300 mm², with 1 to 37 cores.

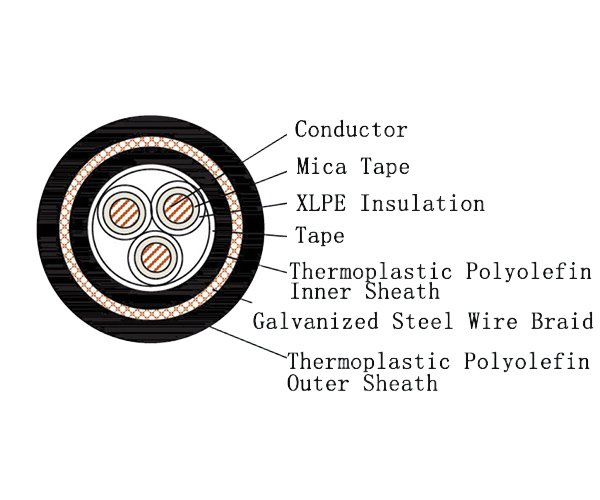

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Critical and emergency power distribution lines on FPSOs, drilling rigs, and naval vessels.
-
Safety system wiring (fire pumps, alarms, emergency lighting) in high-risk marine and industrial zones.
-
Installations subject to severe mechanical abuse, chemical exposure, and mandatory fire survival requirements (e.g., chemical plants, offshore wind farms).
-
Infrastructure projects like tunnels, airports, and high-rise buildings where the highest cable performance standard is specified.
