CJPF90/NC XLPE Insulated Low-smoke Halogen-free Armored Marine Power Cable
Product Overview
The CJPF90/NC is a high-performance marine power cable engineered for critical circuits requiring maximum mechanical protection alongside ultimate fire safety. It combines fire resistance (IEC 60331), low-smoke zero-halogen (LSZH) properties, and rugged galvanized steel wire armor. Designed for essential power and control systems in the most demanding offshore (e.g., oil platforms) and industrial environments (e.g., power plants, mining), it ensures circuit integrity and personnel safety under extreme conditions.
Key Features
-
Superior Mechanical Strength: Galvanized Steel Wire Braid Armor provides exceptional protection against crushing, impact, and rodent damage.
-
Guaranteed Circuit Integrity: Fire Resistant (IEC 60331) to maintain operational capability during a fire, supplemented by Flame Retardant (IEC 60332) properties.
-
Enhanced Personnel Safety: Low-Smoke Halogen-Free (IEC 61034, IEC 60754) construction minimizes toxic smoke and corrosive gas emission in case of fire.
-
Robust Insulation System: Mica glass tape with XLPE insulation ensures reliable performance under thermal stress.
-
Optimized Design: LSZH inner sheath with exposed steel armor offers a balance of high protection, flexibility, and weight considerations.

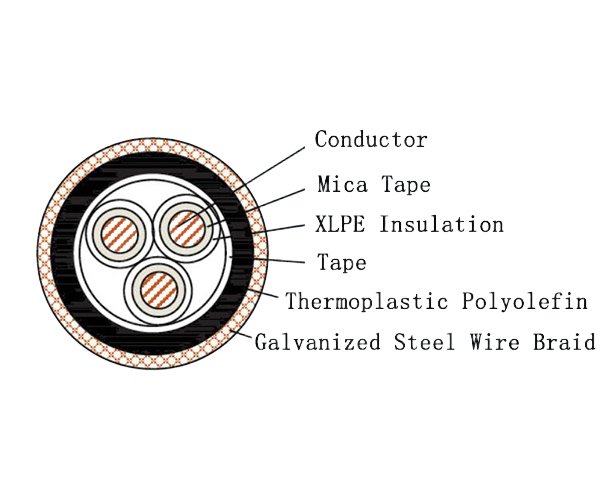

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency power feeders and critical control circuits on offshore platforms and ships.
-
Wiring in engine rooms, machinery spaces, and other areas with high mechanical risk and fire safety requirements.
-
Industrial plants (chemical, mining, power generation) where both severe mechanical stress and enhanced fire performance are mandated.
-
Tunnels and underground installations requiring robust, fire-safe cabling.
